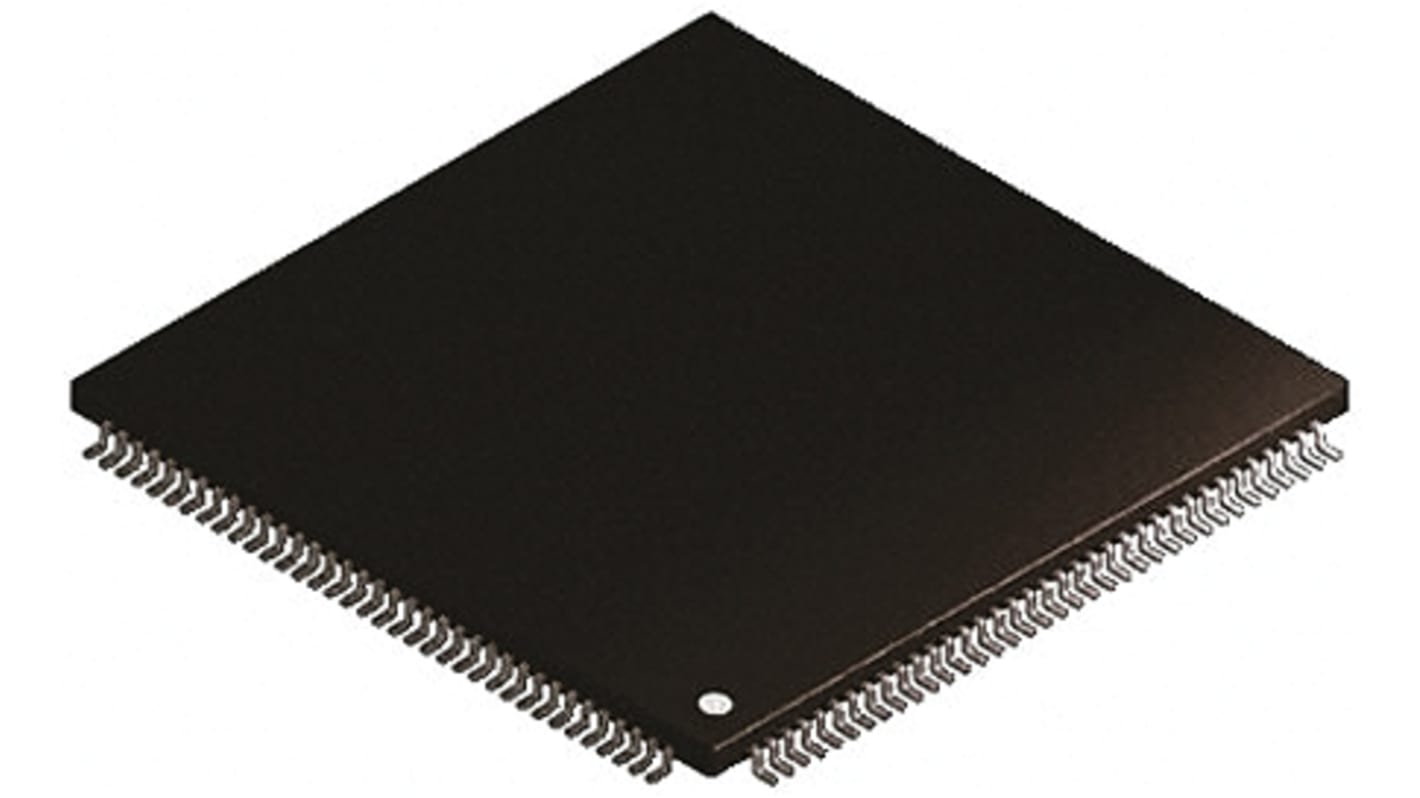

Renesas Electronics, 32bit V850ES, V850 Microcontroller, 32MHz, 512 kB Flash, 144-Pin LQFP

RS-artikelnummer:: 828-4026
Tillv. art.nr:: UPD70F3365GJ(A)-GAE-AX
Tillverkare / varumärke:: Renesas Electronics

Renesas Electronics, 32bit V850ES, V850 Microcontroller, 32MHz, 512 kB Flash, 144-Pin LQFP

Mängdrabatt möjlig

Antal (1 enhet)*

111,48 kr

(exkl. moms)

139,35 kr

(inkl. moms)

Lagerinformation är för närvarande otillgänglig

Enheter	Per enhet
1 - 9	111,48 kr
10 - 19	108,58 kr
20 - 39	107,17 kr
40 - 79	105,86 kr
80 +	104,56 kr

*vägledande pris

RS-artikelnummer:: 828-4026
Tillv. art.nr:: UPD70F3365GJ(A)-GAE-AX
Tillverkare / varumärke:: Renesas Electronics

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Renesas Electronics
	Family Name	V850
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	144
	Device Core	V850ES
	Data Bus Width	32bit
	Program Memory Size	512 kB
	Maximum Frequency	32MHz
	RAM Size	40 kB
	USB Channels	0
	Number of SPI Channels	6
	Number of UART Channels	4
	Number of I2C Channels	3
	Typical Operating Supply Voltage	2.85 → 3.6 V
	Number of CAN Channels	2
	Number of USART Channels	0
	Number of PCI Channels	0
	Number of LIN Channels	4
	Instruction Set Architecture	RISC
	Height	1.4mm
	Maximum Operating Temperature	+85 °C
	Width	20mm
	Dimensions	20 x 20 x 1.4mm
	Program Memory Type	Flash
	Minimum Operating Temperature	-40 °C
	ADCs	1 (16 x 10 bit)
	Maximum Number of Ethernet Channels	0
	Length	20mm
	Number of ADC Units	1
	Number of Ethernet Channels	0

	Välj alla
	Brand Renesas Electronics
	Family Name V850
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 144
	Device Core V850ES
	Data Bus Width 32bit
	Program Memory Size 512 kB
	Maximum Frequency 32MHz
	RAM Size 40 kB
	USB Channels 0
	Number of SPI Channels 6
	Number of UART Channels 4
	Number of I2C Channels 3
	Typical Operating Supply Voltage 2.85 → 3.6 V
	Number of CAN Channels 2
	Number of USART Channels 0
	Number of PCI Channels 0
	Number of LIN Channels 4
	Instruction Set Architecture RISC
	Height 1.4mm
	Maximum Operating Temperature +85 °C
	Width 20mm
	Dimensions 20 x 20 x 1.4mm
	Program Memory Type Flash
	Minimum Operating Temperature -40 °C
	ADCs 1 (16 x 10 bit)
	Maximum Number of Ethernet Channels 0
	Length 20mm
	Number of ADC Units 1
	Number of Ethernet Channels 0

V850ES/SJ3, Renesas MCU

COO (Country of Origin):: JP

V850ES/SJ3 Family 32-Bit Microcontrollers

The V850ES/SJ3 series devices are 32-bit single-chip microcontrollers with a V850ES processor core. The processor core provides 32 x 32bit signed multiplication, saturated-operation instructions and bit-manipulation instructions.

32MHz V850ES core MCU with up to 1MB Flash memory
Flash memory error correction
84 x GPIO
CRC generator
DMA controller
CAN bus interface
Automotive IEBus™ interface
I²C bus interface
12-channel 10-bit ADC
2-channel 8-bit DAC
Power save modes: Halt, Idle1, Idle2, Sub-Idle, Sub-Clock, Stop
Operating temperature range: -40 to +85°C
All parts with suffix (A) are qualified to AEC-Q100 standard
Applications: Automotive infotainment

RS Product Codes
828-4001 UPD70F3355GJ(A)-GAE-AX 512KB Flash, 40KB RAM
828-4010 UPD70F3357GJ(A)-GAE-AX 768KB Flash, 60KB RAM
828-4013 UPD70F3357GJ(A)-UEN-A 768KB Flash, 60KB RAM
828-4017 UPD70F3358GJ(A)-UEN-A 1024KB Flash, 60KB RAM
828-4029 UPD70F3367GJ(A)-GAE-AX 768KB Flash, 60KB RAM

Standards

AEC-Q100
