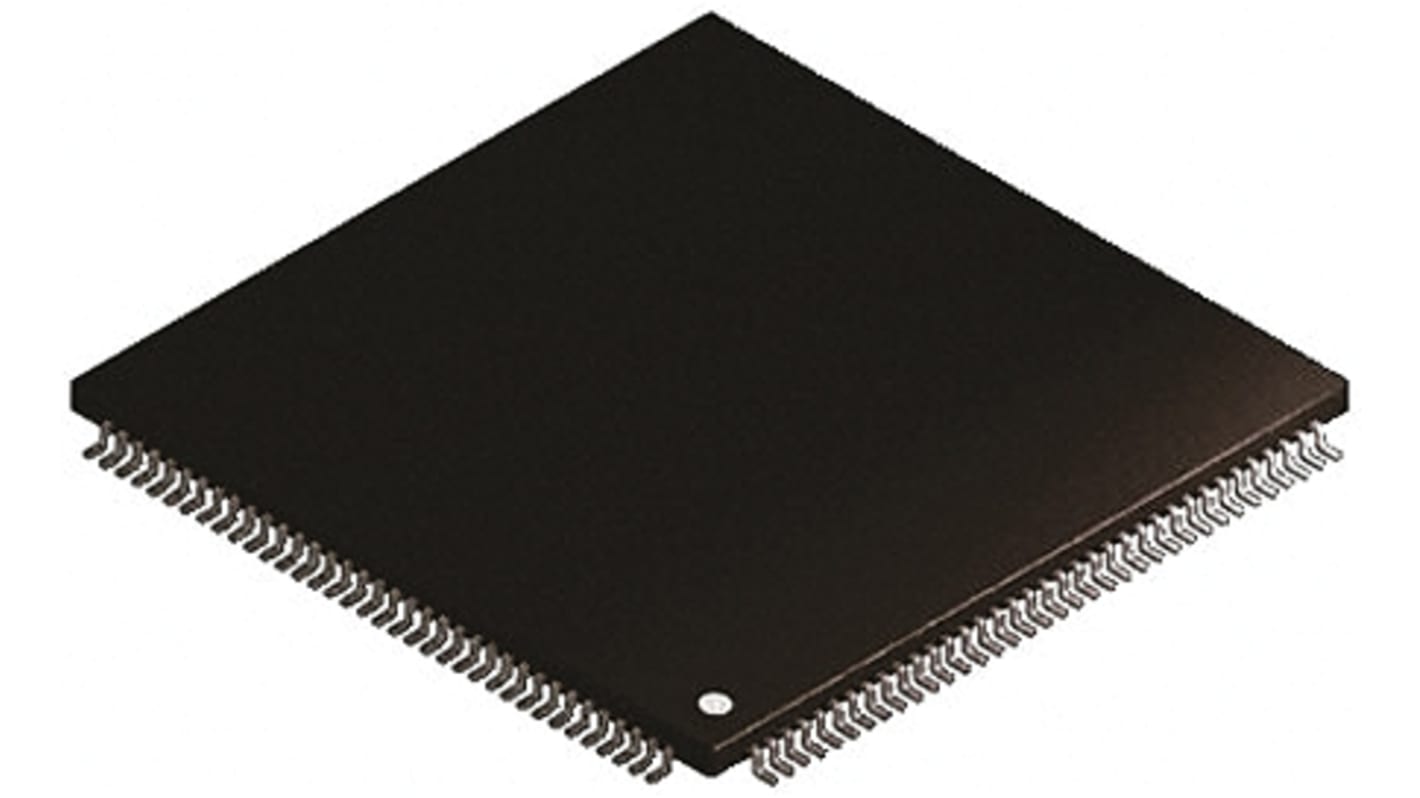

Renesas Electronics R5F563TEADFB#V0, 32bit RX Microcontroller, RX, 100MHz, 512 kB Flash, 144-Pin LQFP

RS-artikelnummer:: 828-3907
Tillv. art.nr:: R5F563TEADFB#V0
Tillverkare / varumärke:: Renesas Electronics

Renesas Electronics R5F563TEADFB#V0, 32bit RX Microcontroller, RX, 100MHz, 512 kB Flash, 144-Pin LQFP

Denna produkt har utgått

RS-artikelnummer:: 828-3907
Tillv. art.nr:: R5F563TEADFB#V0
Tillverkare / varumärke:: Renesas Electronics

RX63T, Renesas MCU

Attribute	Value
Family Name	RX
Package Type	LQFP
Mounting Type	Surface Mount
Pin Count	144
Device Core	RX
Data Bus Width	32bit
Program Memory Size	512 kB
Maximum Frequency	100MHz
RAM Size	48 kB
USB Channels	1
Number of SPI Channels	2
Number of UART Channels	5
Number of I2C Channels	2
Number of CAN Channels	1
Number of USART Channels	0
Typical Operating Supply Voltage	2.7 → 3.6 V
Minimum Operating Temperature	-40 °C
Dimensions	20.1 x 20.1 x 1.55mm
Width	20.1mm
Number of LIN Channels	0
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Height	1.55mm
ADCs	20-ch x 10-bit, 4-ch x 12-bit
Length	20.1mm
Maximum Operating Temperature	+85 °C
Maximum Number of Ethernet Channels	0
Instruction Set Architecture	CISC
Number of ADC Units	3
