Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Renesas Electronics
	Family Name	RX
	Package Type	LFQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	RX
	Data Bus Width	32bit
	Program Memory Size	16 kB
	Maximum Frequency	32MHz
	RAM Size	8 kB
	USB Channels	1
	Number of SPI Channels	1
	Number of UART Channels	3
	Number of USART Channels	0
	Typical Operating Supply Voltage	2.7 → 3.6 V
	Number of I2C Channels	1
	Number of CAN Channels	0
	Minimum Operating Temperature	-40 °C
	Length	10.1mm
	Maximum Number of Ethernet Channels	0
	ADCs	1 (20 x 12 bit)
	Number of ADC Units	1
	Instruction Set Architecture	CISC
	Maximum Operating Temperature	+85 °C
	Height	1.55mm
	Width	10.1mm
	Program Memory Type	Flash
	Number of LIN Channels	0
	Dimensions	10.1 x 10.1 x 1.55mm
	Number of Ethernet Channels	0
	Number of PCI Channels	0

	Välj alla
	Brand Renesas Electronics
	Family Name RX
	Package Type LFQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core RX
	Data Bus Width 32bit
	Program Memory Size 16 kB
	Maximum Frequency 32MHz
	RAM Size 8 kB
	USB Channels 1
	Number of SPI Channels 1
	Number of UART Channels 3
	Number of USART Channels 0
	Typical Operating Supply Voltage 2.7 → 3.6 V
	Number of I2C Channels 1
	Number of CAN Channels 0
	Minimum Operating Temperature -40 °C
	Length 10.1mm
	Maximum Number of Ethernet Channels 0
	ADCs 1 (20 x 12 bit)
	Number of ADC Units 1
	Instruction Set Architecture CISC
	Maximum Operating Temperature +85 °C
	Height 1.55mm
	Width 10.1mm
	Program Memory Type Flash
	Number of LIN Channels 0
	Dimensions 10.1 x 10.1 x 1.55mm
	Number of Ethernet Channels 0
	Number of PCI Channels 0

RX111 Group, Renesas MCU

COO (Country of Origin):: JP

RX111 Microcontrollers

RX111 microcontrollers are 32-bit, low pin-count, low-power Flash memory devices compatible with the RX200 and RX600 series. Applications include digital cameras, smart phones, healthcare equipment, refrigerators, power meters, industrial equipment, washing machines, air conditioners and building automation.

• 32MHz 32-bit RX core microcontroller
• 32-bit Multiplier/Divider with multiply-accumulate
• Up to 512KB Flash memory, 8KB Data Flash
• Up to 64KB RAM
• Serial communication: SCI, SPI, I²C, USB 2.0
• Multi-Function Pin Controller
• Data Transfer Controller
• Event Link Controller
• Clock Frequency Accuracy Measurement Circuit
• Data Operation Circuit
• 14-bit Independent Watchdog Timer
• CRC Calculator
• On-chip Debug and Trace
• Power Supply Voltage: +1.8V to +3.6Vdc
• Power Consumption Modes: Sleep, Deep Sleep, Software Standby

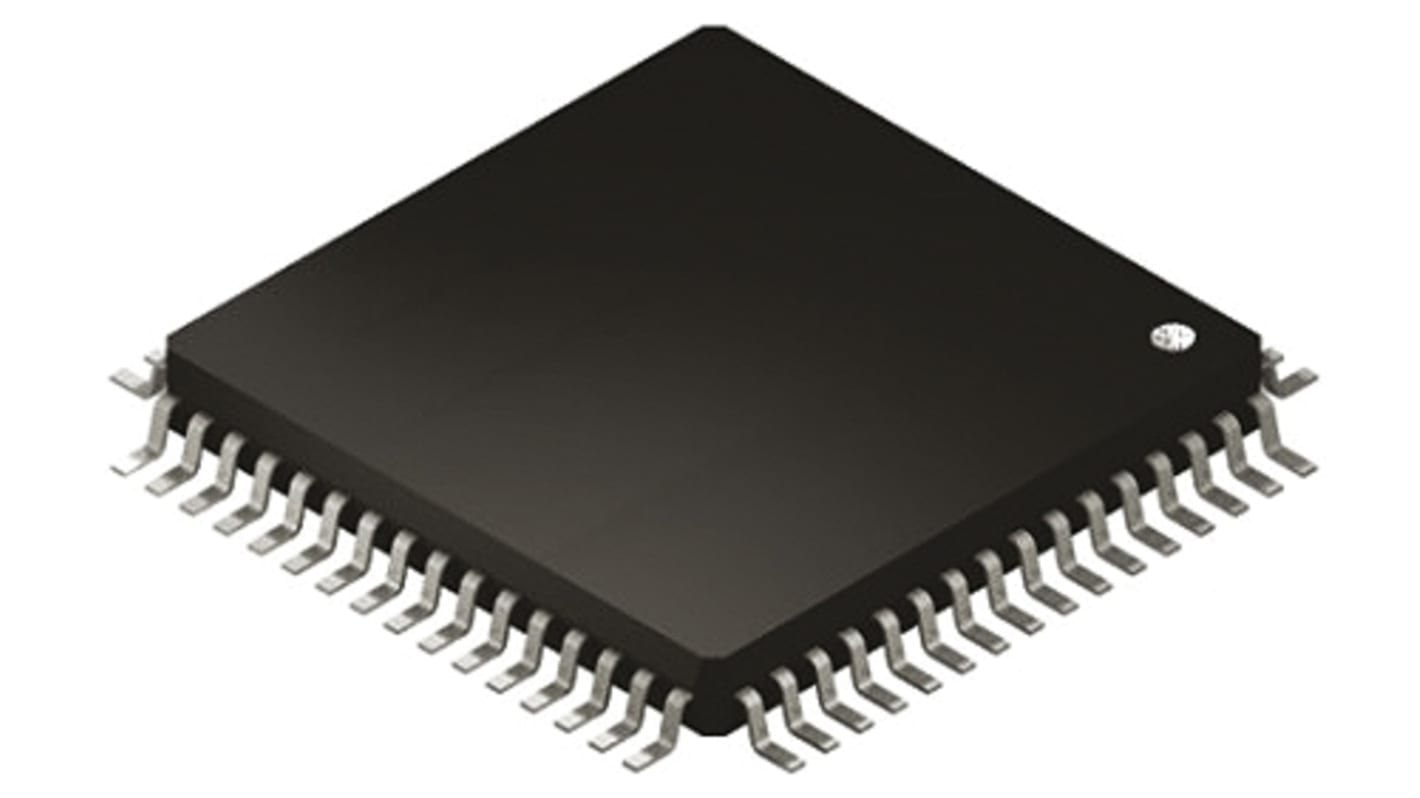

Renesas Electronics, 32bit RX, RX Microcontroller, 32MHz, 16 kB Flash, 64-Pin LFQFP

RX111 Microcontrollers
