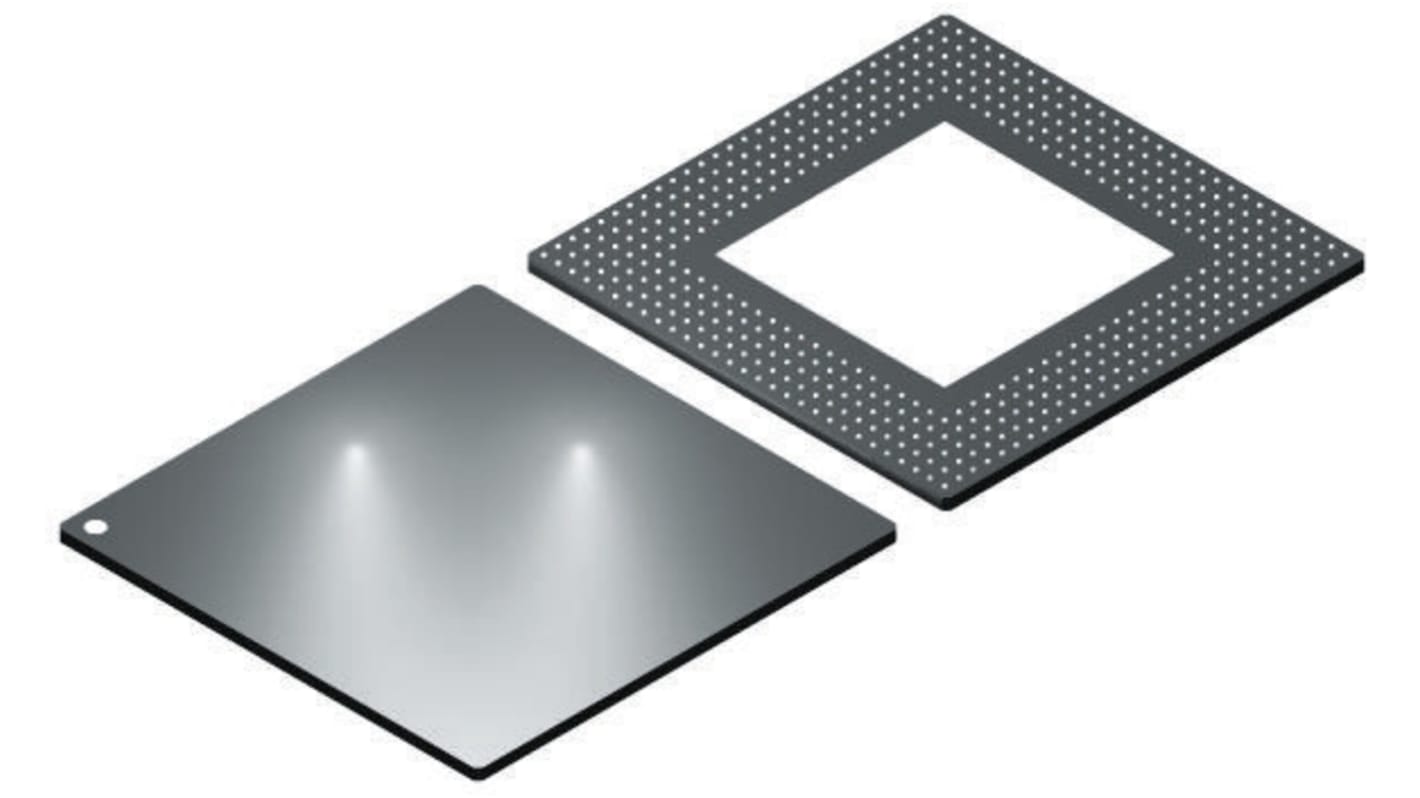

Renesas Electronics R5F5631BDDLK#U0, 32bit RX631 Microcontroller, RX, 100MHz, 32 kB Flash, 145-Pin TFLGA

Se alla Microcontrollers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Förpackningsalternativ:
RS-artikelnummer:
757-8216
Tillv. art.nr:
R5F5631BDDLK#U0
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Family Name

RX

Package Type

TFLGA

Mounting Type

Surface Mount

Pin Count

145

Device Core

RX631

Data Bus Width

32bit

Program Memory Size

32 kB

Maximum Frequency

100MHz

RAM Size

128 kB

USB Channels

2

Number of PWM Units

5

Number of SPI Channels

3

Number of USART Channels

0

Number of UART Channels

13

Typical Operating Supply Voltage

2.7 → 3.6 V

Number of I2C Channels

4

Number of CAN Channels

3

Maximum Number of Ethernet Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Width

7mm

Pulse Width Modulation

2(2 x 8 bit), 2(6 x 16 bit), 6 x 16 bit

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Height

1.4mm

ADCs

21-ch x 12 bit, 8-ch x 10 bit

Length

7mm

Number of LIN Channels

0

Dimensions

7 x 7 x 1.4mm

Number of ADC Units

2

Instruction Set Architecture

CISC Harvard

Minimum Operating Temperature

-40 °C

RX631 Microcontrollers


The RX631 family of 32-bit microcontrollers features 100MHz high-speed operation and large-capacity on-chip memory. Some devices offer Image Data Capture or AES encryption security.

• 100MHz 32-bit RX core microcontroller
• Up to 2MB Flash memory
• 32KB Data Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision Floating Point maths unit
• Parallel Image Data Capture unit (Selected devices)
• AES-128/192/256 Data Encryption unit (Selected devices)
• 4-channel DMA controller
• Data Transfer Controller
• Serial Communication: SPI, I²C, USB, CAN
• 14-bit Independent Watchdog Timer
• Programmable Pulse Generator
• Real-Time Clock
• CRC Calculator
• Temperature sensor
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
