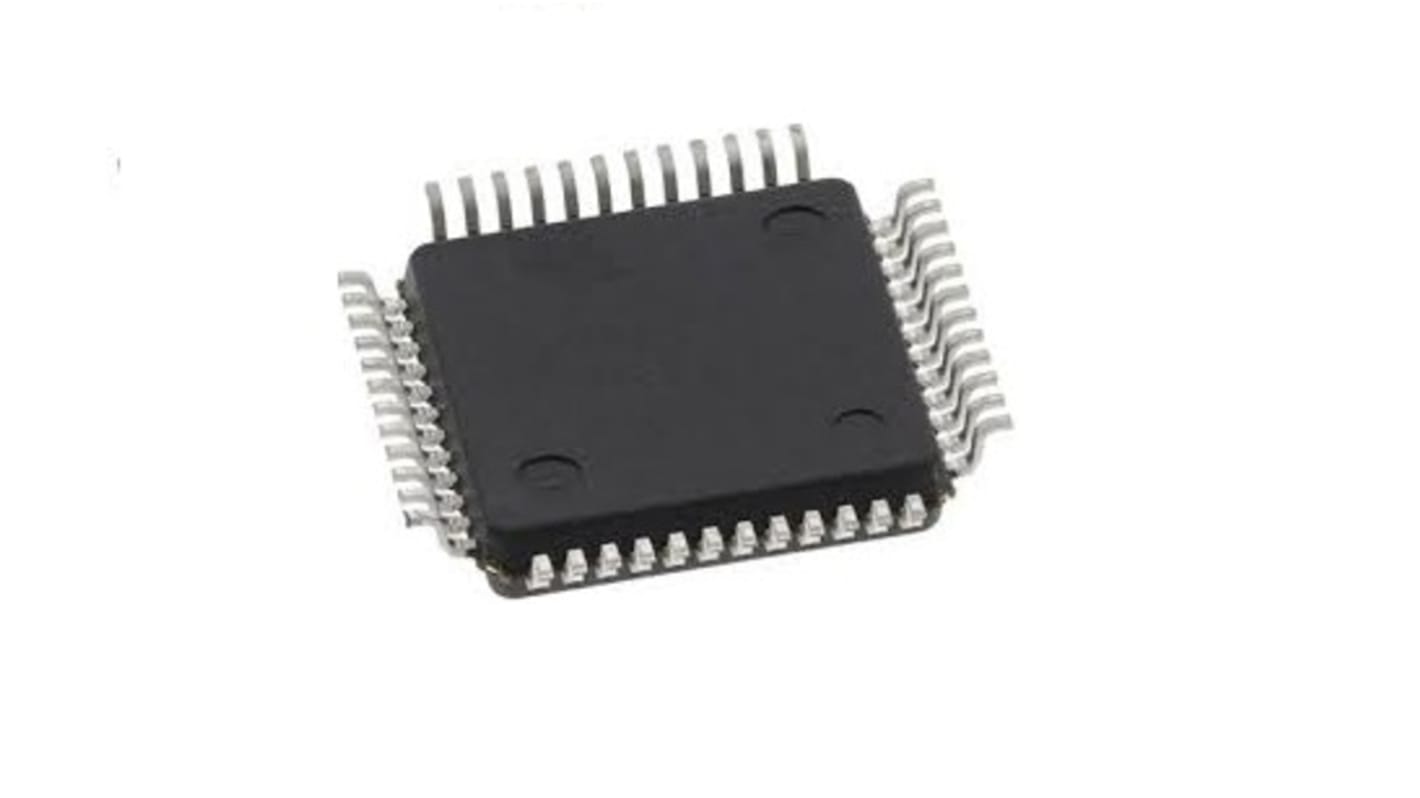

Renesas Electronics, 16bit RL78, RL78/G13 Microcontroller MCU, 32MHz, 512 kB Flash, 48-Pin LFQFP

Se alla Microcontrollers

Antal (1 fack med 250 enheter)*

5 733,75 kr

(exkl. moms)

7 167,25 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 250 enhet(er) levereras från den 08 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
250 +22,935 kr5 733,75 kr

*vägledande pris

RS-artikelnummer:
261-5973
Tillv. art.nr:
R5F100GLAFB#30
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Family Name

RL78/G13

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

48

Device Core

RL78

Data Bus Width

16bit

Program Memory Size

512 kB

Maximum Frequency

32MHz

RAM Size

32 kB

USB Channels

0

Number of SPI Channels

7

Number of UART Channels

3

Typical Operating Supply Voltage

1.6 → 5.5 V

Number of CAN Channels

0

Number of USART Channels

0

Number of I2C Channels

8

Number of PCI Channels

0

Dimensions

7 x 7 x 1.6mm

Width

7mm

Number of Ethernet Channels

0

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

CISC

Height

1.6mm

Minimum Operating Temperature

-40 °C

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Number of LIN Channels

0

ADCs

10 x 8/10 bit

Length

7mm

COO (Country of Origin):
CN
The Renesas R5F100GLAFB#30 microcontroller balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter and built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). This microcontroller can be used in a wide variety of applications from home and consumer appliances to industrial equipment.

CPU= RL78 (16-bit)
Max frequency= 32 MHz
Program memory= 512 KB Flash memory
Pin count= 48
