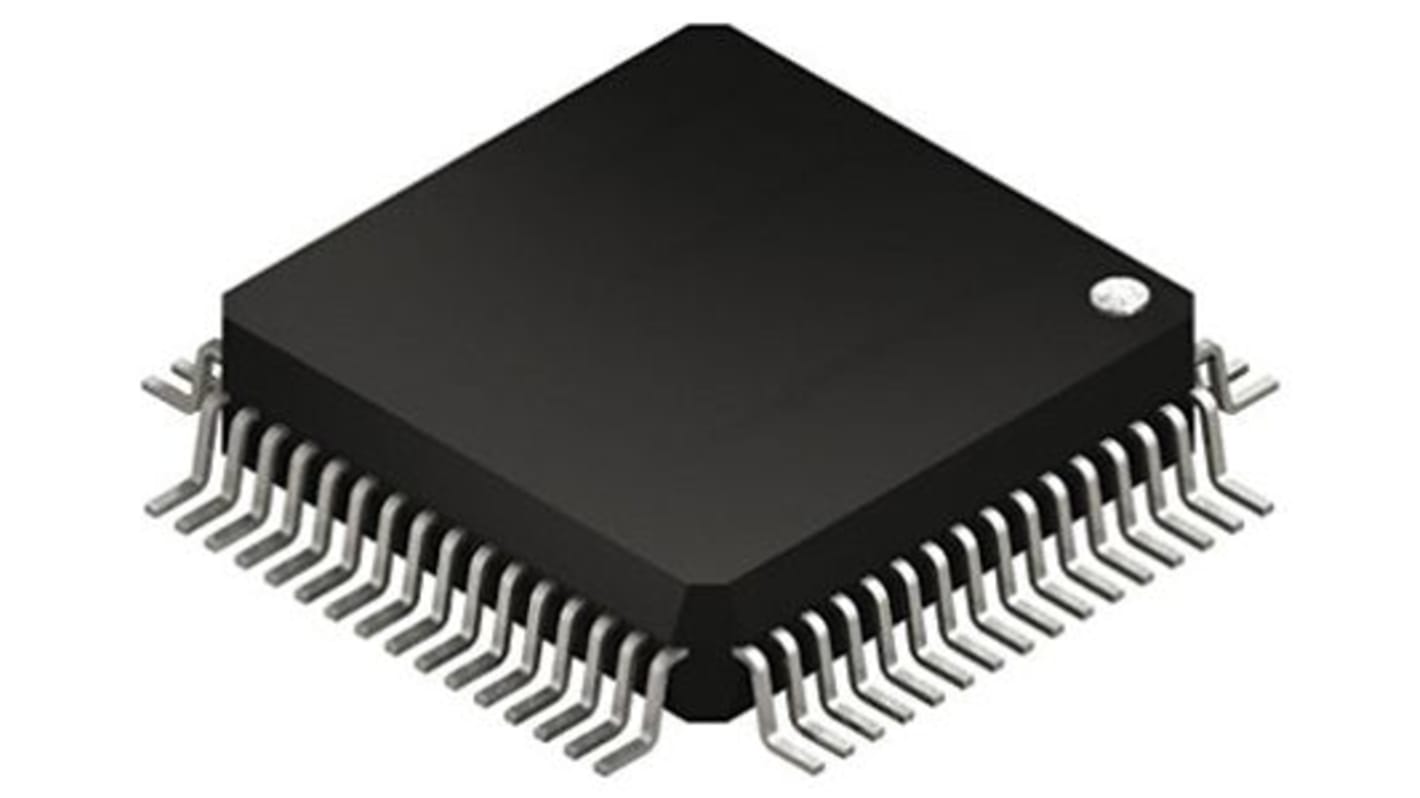

Renesas Electronics, 16bit RL78, RL78/G13 Microcontroller MCU, 32MHz, 512 kB Flash, 64-Pin LFQFP

Se alla Microcontrollers
Mängdrabatt möjlig

Antal (1 fack med 160 enheter)*

5 472,16 kr

(exkl. moms)

6 840,16 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 17 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Bricka*
160 - 16034,201 kr5 472,16 kr
320 +33,347 kr5 335,52 kr

*vägledande pris

RS-artikelnummer:
261-5980
Tillv. art.nr:
R5F100LLAFB#30
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Family Name

RL78/G13

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

RL78

Data Bus Width

16bit

Program Memory Size

512 kB

Maximum Frequency

32MHz

RAM Size

32 kB

USB Channels

0

Number of SPI Channels

7

Number of I2C Channels

8

Number of CAN Channels

0

Typical Operating Supply Voltage

1.6 → 5.5 V

Number of UART Channels

3

Number of USART Channels

0

Width

10mm

Dimensions

10 x 10 x 1.6mm

Number of PCI Channels

0

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Length

10mm

ADCs

12 x 8/10 bit

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

CISC

Minimum Operating Temperature

-40 °C

Program Memory Type

Flash

Number of Ethernet Channels

0

Number of LIN Channels

0

Height

1.6mm

COO (Country of Origin):
CN
The Renesas R5F100LLAFB#30 microcontroller balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter and built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). This microcontroller can be used in a wide variety of applications from home and consumer appliances to industrial equipment.

CPU= RL78 (16-bit)
Max frequency= 32 MHz
Program memory= 512 KB Flash memory
Pin count= 64
