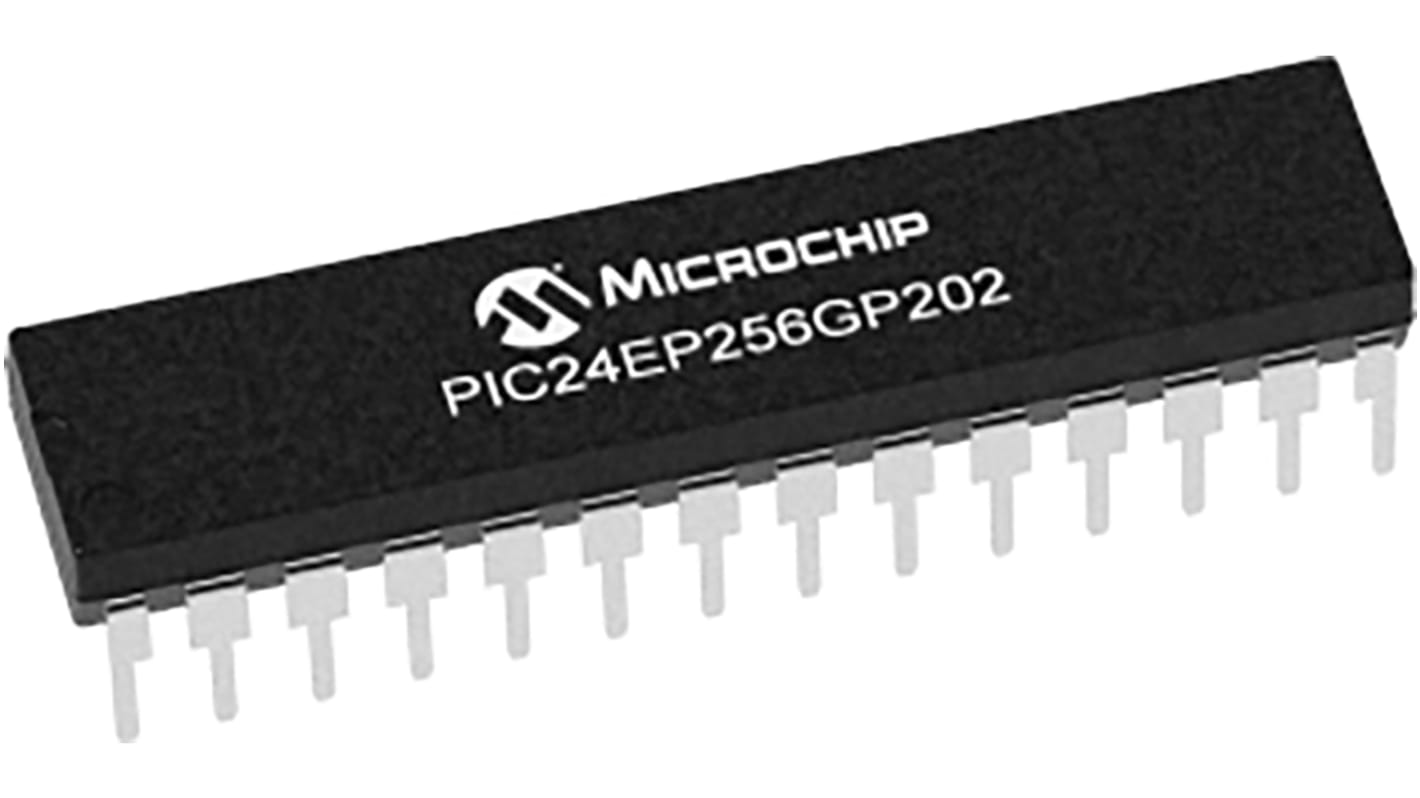

Microchip, 16bit PIC, PIC24E Microcontroller, 60MHz, 256 kB Flash, 28-Pin SPDIP

Se alla Microcontrollers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
177-2523
Tillv. art.nr:
PIC24EP256GP202-I/SP
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Family Name

PIC24E

Package Type

SPDIP

Mounting Type

Through Hole

Pin Count

28

Device Core

PIC

Data Bus Width

16bit

Program Memory Size

256 kB

Maximum Frequency

60MHz

RAM Size

32 kB

Number of PWM Units

1

Number of SPI Channels

2

Typical Operating Supply Voltage

3.6 (Maximum) V

Number of I2C Channels

2

Number of UART Channels

2

Maximum Operating Temperature

+85 °C

Program Memory Type

Flash

Automotive Standard

AEC-Q100

Dimensions

1.4 x 0.29 x 0.15in

Height

3.81mm

Instruction Set Architecture

C Compiler

Width

7.37mm

Minimum Operating Temperature

-40 °C

ADCs

6 x 12 bit

Number of ADC Units

1

Length

35.56mm

Pulse Width Modulation

1 (6 Channel)

The PIC24E general purpose MCUs feature the highest speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, CTMU, Op Amps and Peripheral Trigger Generator (PTG) for high-end general purpose applications. These devices are available in various packages and with extended (125°C) temp option.

Operating Conditions:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
PIC24E MCU Core:
Modified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply Operations
32/16 and 16/16 Integer Divide Operations
Advanced Analog Features:
ADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module-
