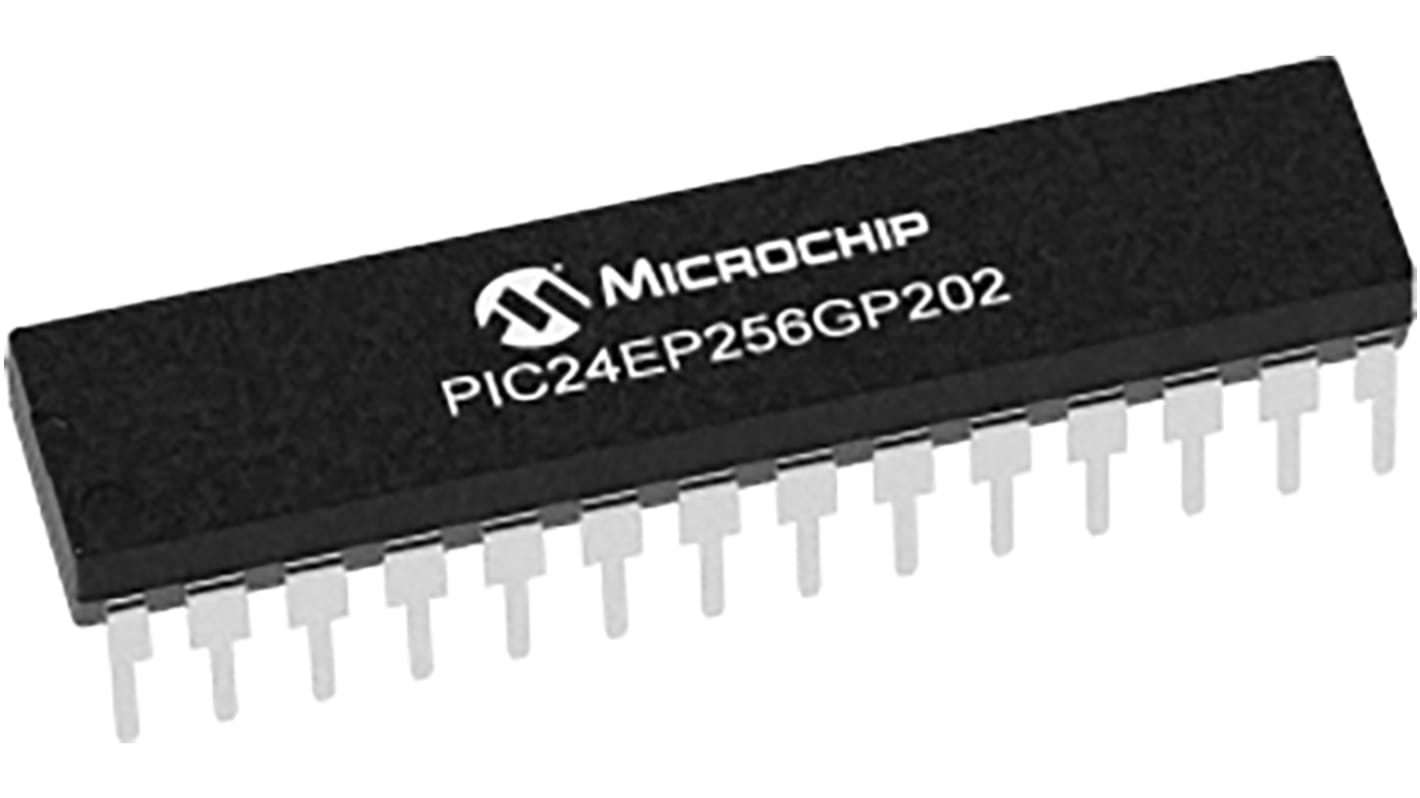

Microchip Technology PIC24EP256GP202-I/SP, 16bit PIC Microcontroller, 60MHz, 256 kB Flash, 28-Pin SPDIP
- RS-artikelnummer 177-2212
- Tillv. art.nr PIC24EP256GP202-I/SP
- Tillverkare / varumärke Microchip
The PIC24E general purpose MCUs feature the highest speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, CTMU, Op Amps and Peripheral Trigger Generator (PTG) for high-end general purpose applications. These devices are available in various packages and with extended (125°C) temp option.
Operating Conditions:
3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
PIC24E MCU Core:
Modified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply Operations
32/16 and 16/16 Integer Divide Operations
Advanced Analog Features:
ADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module-
| Attribute | Value |
|---|---|
| Family Name | PIC24E |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 6 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Length | 35.56mm |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 3.81mm |
| PWM Channels | 6 |
| Width | 7.37mm |
| ADC Resolution | 12bit |
| Automotive Standard | AEC-Q100 |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 1.4 x 0.29 x 0.15in |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | C Compiler |
| Pulse Width Modulation | 1 (6 Channel) |
| Number of Timers | 2 |
| ADCs | 1 (6 x 12 bit) |
| Number of I2C Channels | 2 |
