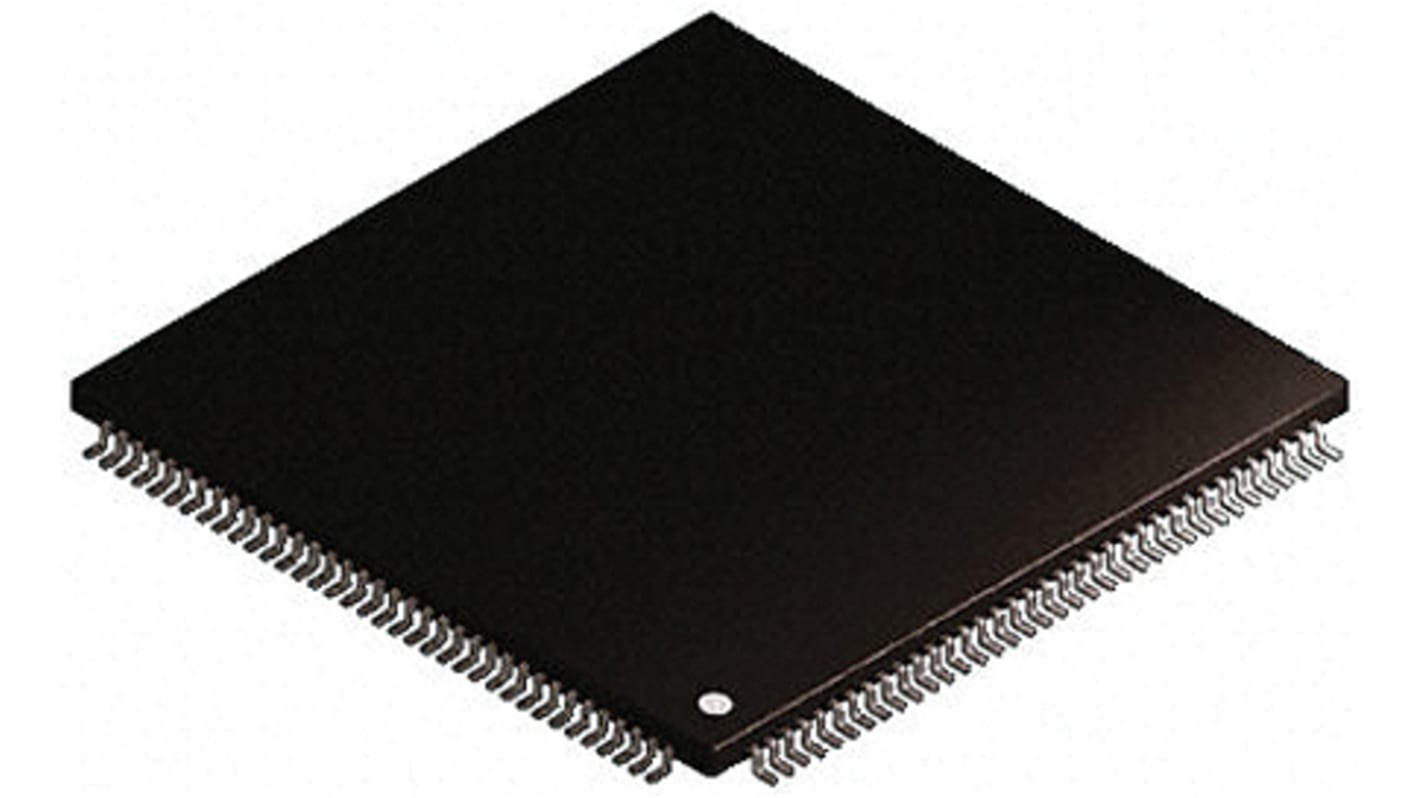

Infineon XMC4500F144F1024ACXQMA1, 32bit ARM Cortex M4 MCU, 120MHz, 1.024 MB Flash, 144-Pin LQFP

  • RS-artikelnummer 110-7450
  • Tillv. art.nr XMC4500F144F1024ACXQMA1
  • Tillverkare / varumärke Infineon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

XMC4500 32-Bit Industrial Microcontrollers, Infineon

The DAVETM 3 software is a free tool chain that helps develop the software with the XMC4000 Series to utilise the hardware features. The DAVE tool incorporates all the features from existing DAVE tools and includes the IDE, Compiler, Debugger and low-level code generation. It is easy to use therefore the embedded code is called DAVE Apps; they can be downloaded and configured from the web. The free application code design lets you add as many apps as you need for your application from evaluation to production (E2P).
Download DAVETM for free at www.infineon.com/DAVE

ARM® Cortex™-M4, 120 MHz, including single cycle DSP MAC and floating point unit (FPU)
1 MB eFlash including hardware ECC
160Kb SRAM (XMC4504 128Kb)
12-channel DMA
IEEE 1588 compliant Ethernet MAC
USB 2.0 full-speed on-the-go
Comprehensive set of timers and PWM, Delta-sigma Demodulator, Position Interface
4x 12-bit ADC kernels with up to 26 channels, 2x 12-bit DAC
6x multi function serial interface modules configurable to SPI, I2C, I2S, UART
3x CAN nodes
External bus interface supporting SDRAM, SRAM, NOR-/NAND-Flash and memory-mapped I/O devices (i.e. LCD)
SD/MMC interface
Touch interface & LED Matrix
Battery-backed real-time clock with calender function and timebase or external wake-up capabilities

Specifikationer
Attribute Value
Family Name XMC4000
Package Type LQFP
Mounting Type Surface Mount
Pin Count 144
Device Core ARM Cortex M4
Data Bus Width 32bit
Program Memory Size 1.024 MB
Maximum Frequency 120MHz
RAM Size 160 kB
USB Channels 1
ADC Channels 12
Typical Operating Supply Voltage 1.3 (Core) V, 3.3 (Digital) V
Program Memory Type Flash
Length 20mm
ADC Resolution 12bit
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Dimensions 20 x 20 x 1.4mm
Instruction Set Architecture DSP, MAC
Maximum Number of Ethernet Channels 1
Number of ADC Units 4
Data Rate 100Mbps
Height 1.4mm
Width 20mm
ADCs 4 (8 x 12 bit)
347 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
61,38 kr
(exkl. moms)
76,72 kr
(inkl. moms)
Enheter
Per unit
1 +
61,38 kr
Förpackningsalternativ:
