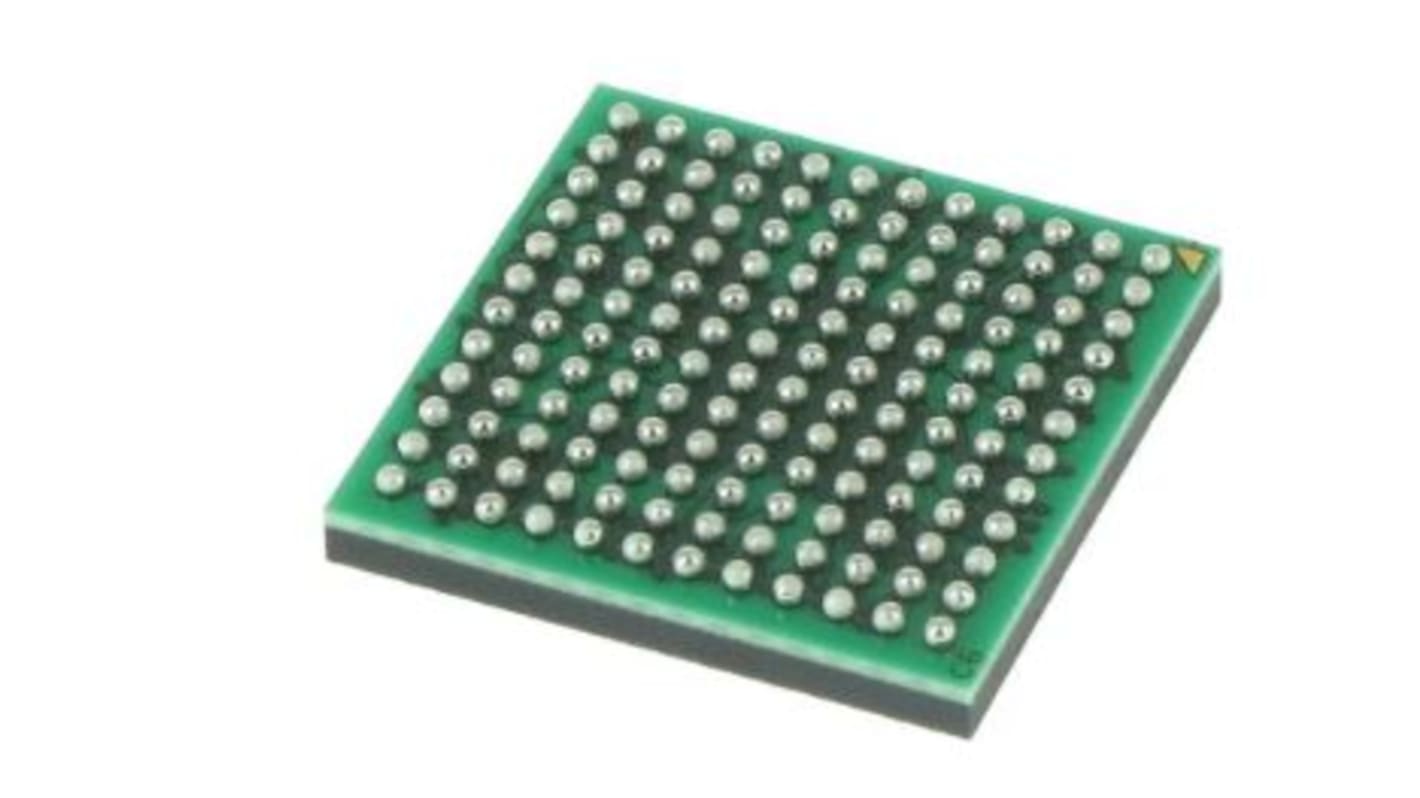

STMicroelectronics, 32 bit ARM Cortex M4, STM32L4R9ZG Microcontroller, 120 MHz, 1024kB FLASH, 144-Pin UFBGA

RS-artikelnummer:: 233-3084
Tillv. art.nr:: STM32L4R9ZGJ6
Tillverkare / varumärke:: STMicroelectronics

STMicroelectronics, 32 bit ARM Cortex M4, STM32L4R9ZG Microcontroller, 120 MHz, 1024kB FLASH, 144-Pin UFBGA

Mängdrabatt möjlig

Antal (1 fack med 168 enheter)*

24 850,392 kr

(exkl. moms)

31 063,032 kr

(inkl. moms)

Lägg till 168 enheter för att få fri frakt

Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.

I lager

168 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Bricka*
168 - 168	147,919 kr	24 850,39 kr
336 +	144,221 kr	24 229,13 kr

*vägledande pris

RS-artikelnummer:: 233-3084
Tillv. art.nr:: STM32L4R9ZGJ6
Tillverkare / varumärke:: STMicroelectronics

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32L4R9ZG
	Package Type	UFBGA
	Mount Type	Surface
	Pin Count	144
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1024kB
	Maximum Clock Frequency	120MHz
	RAM Size	640kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Analogue Comparators	2
	Length	10mm
	Standards/Approvals	No
	Width	10 mm
	Maximum Power Dissipation Pd	385mW
	Height	0.6mm
	DACs	2 x 12 Bit
	Number of Programmable I/Os	136
	Minimum Supply Voltage	1.71V
	ADCs	1 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC
	Program Memory Type	FLASH
	Number of Timers	16

	Välj alla
	Brand STMicroelectronics
	Product Type Microcontroller
	Series STM32L4R9ZG
	Package Type UFBGA
	Mount Type Surface
	Pin Count 144
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1024kB
	Maximum Clock Frequency 120MHz
	RAM Size 640kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Analogue Comparators 2
	Length 10mm
	Standards/Approvals No
	Width 10 mm
	Maximum Power Dissipation Pd 385mW
	Height 0.6mm
	DACs 2 x 12 Bit
	Number of Programmable I/Os 136
	Minimum Supply Voltage 1.71V
	ADCs 1 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC
	Program Memory Type FLASH
	Number of Timers 16

Datasheet - STM32L4R9ZGJ6

The STMicroelectronics STM32 devices are an ultra-low-power microcontrollers family (STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.

1.71 V to 3.6 V power supply

-40 °C to 85/125 °C temperature range

Batch acquisition mode (BAM)

305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers

33 nA Shutdown mode (5 wakeup pins)

125 nA Standby mode (5 wakeup pins)

420 nA Standby mode with RTC

2.8 μA Stop 2 with RTC

110 μA/MHz Run mode (LDO mode)

43 μA/MHz Run mode (@ 3.3 V SMPS mode)

5 μs wakeup from Stop mode

Brownout reset (BOR) in all modes except shutdown

Interconnect matrix
