mbed Application Board MCU Development Board mbed-014.1

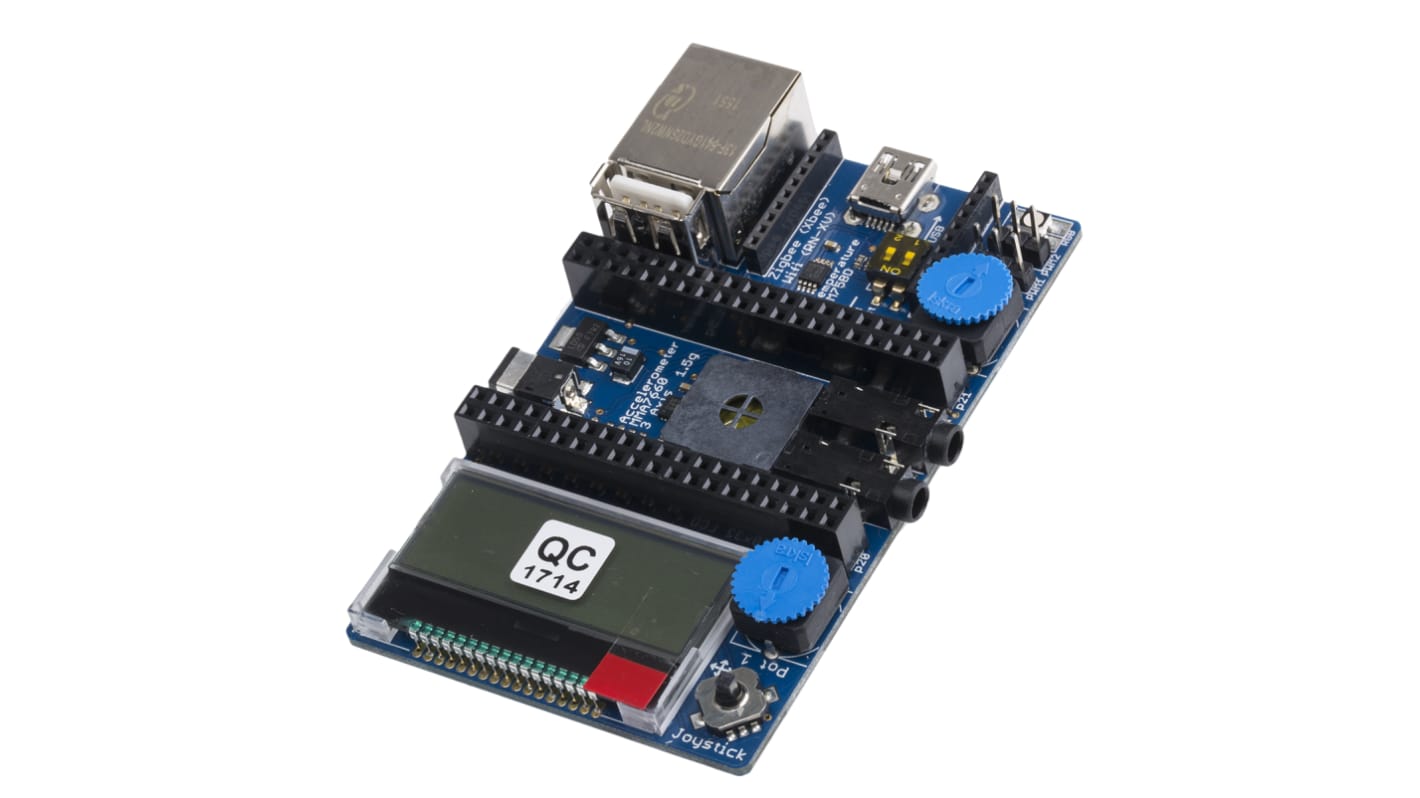

mbed Application Board

The mbed application board is a compact breakout board similar in size to an average credit card and has been designed for use with the mbed LPC1768 Cortex-M3 microcontroller. Featuring a set of standard communication sockets and various on-board peripheral devices it is ideal for education and development in a laboratory environment.


See the website for additional information as well as test programs and example code here: http://mbed.org/cookbook/mbed-application-board

What’s on-board?
• LPC1768 mbed module compatible double row header
• Backlit LCD (128 x 32)
• 9 Vdc power socket (1.3mm)
• RJ45 Ethernet connector
• 2 x 3.5 mm audio jack for analogue In/Out
• Mini-USB connector for peripherals
• Miniature loudspeaker
• 2 x Potentiometers
• 3-axis accelerometer
• Temperature sensor
• RGB LED
• SPI interface
• 5-way thumb joystick navigation control
• Xbee Zigbee module or RN-XV WiFi module compatible socket headers
• 2 x standard R/C servo motor headers (See 781-3058 & 781-3046 for suitable motors)
• USB-A connector for flash drives, Bluetooth and GSM Modem (UK Only)

Note

The mbed module is NOT included, but is available separately: 703-9238.
