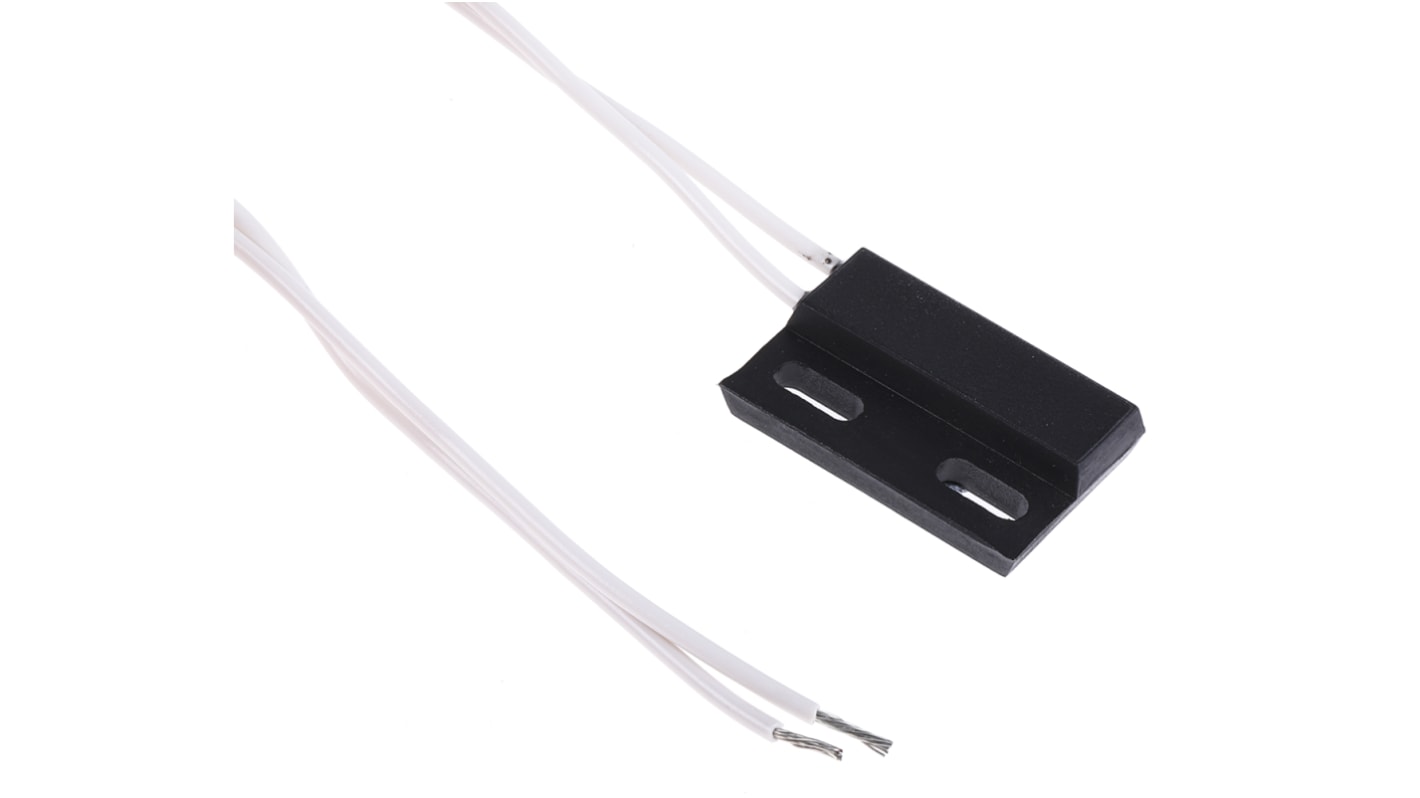

    RS PRO Proximity Switch Rectangular 250V, NO, 500mA

    RS-artikelnummer:
    811-0736
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Magnetic Proximity Switches
    1042 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    71,24 kr

    (exkl. moms)

    89,05 kr

    (inkl. moms)

    EnheterPer unit
    1 - 471,24 kr
    5 - 1167,40 kr
    12 +63,98 kr
    RS-artikelnummer:
    811-0736
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    GB

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    GB

    Produktdetaljer

    RS PRO Rectangular Proximity Reed Switches


    RS PRO range of rectangular magnetic proximity reed switches which provide a simple and cost-effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches.
    Options include:
    811-0748 - Proximity Switch - Reed based changeover contacts
    811-0736 - Proximity Switch - Normally Open Contacts
    811-0745 - Rectangular Encapsulated Magnet

    Reed switches are a type of industrial switch and are used to interrupt or redirect the flow of electricity within a circuit. Reed switches are composed of two ferrous reeds in a small glass casing. The switches are magnetised and move when the magnetic field is moved towards the switch. A reed switch can turn on or off when a magnetic field is nearby.
    RS PRO have a great range of industrial magnetic proximity switches and magnetic proximity sensors to suit many different applications.

    Features and Benefits:


    Moulded switch case with 2 slotted fixing holes
    Robust sealed switch

    Typical Applications:


    Reed Proximity Switches and Proximity Sensors (also known as magnetic sensors) are popular due to their reliability and simple design.
    Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit. Magnetic proximity switches can be used in the following applications:
    Position sensing
    Linear actuators
    Security switching
    Door Switch

    FAQs
    What is a magnetic proximity switch?
    Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit.

    What is the difference between a proximity switch and a proximity sensor?
    A proximity sensor is a sensor which is able to detect the presence of nearby objects without any physical contact. Proximity switches open or close an electrical circuit when they make contact with or come within a certain distance of an object.

    Why RS PRO?
    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.


    Specifikationer

    AttributeValue
    Switch ShapeRectangular
    Normal State ConfigurationNO
    Terminal TypeWire Lead
    Maximum Current500mA
    Maximum AC Voltage250V
    Maximum DC Voltage150V
    Switching Frequency200Hz
    Contact Resistance150mΩ
    Total Length328.5mm
    Length28.5mm
    Minimum Operating Temperature-40°C
    Width19mm
    Depth6.4mm
    Maximum Operating Temperature+105°C
    Dimensions28.5 x 19 x 6.4mm
