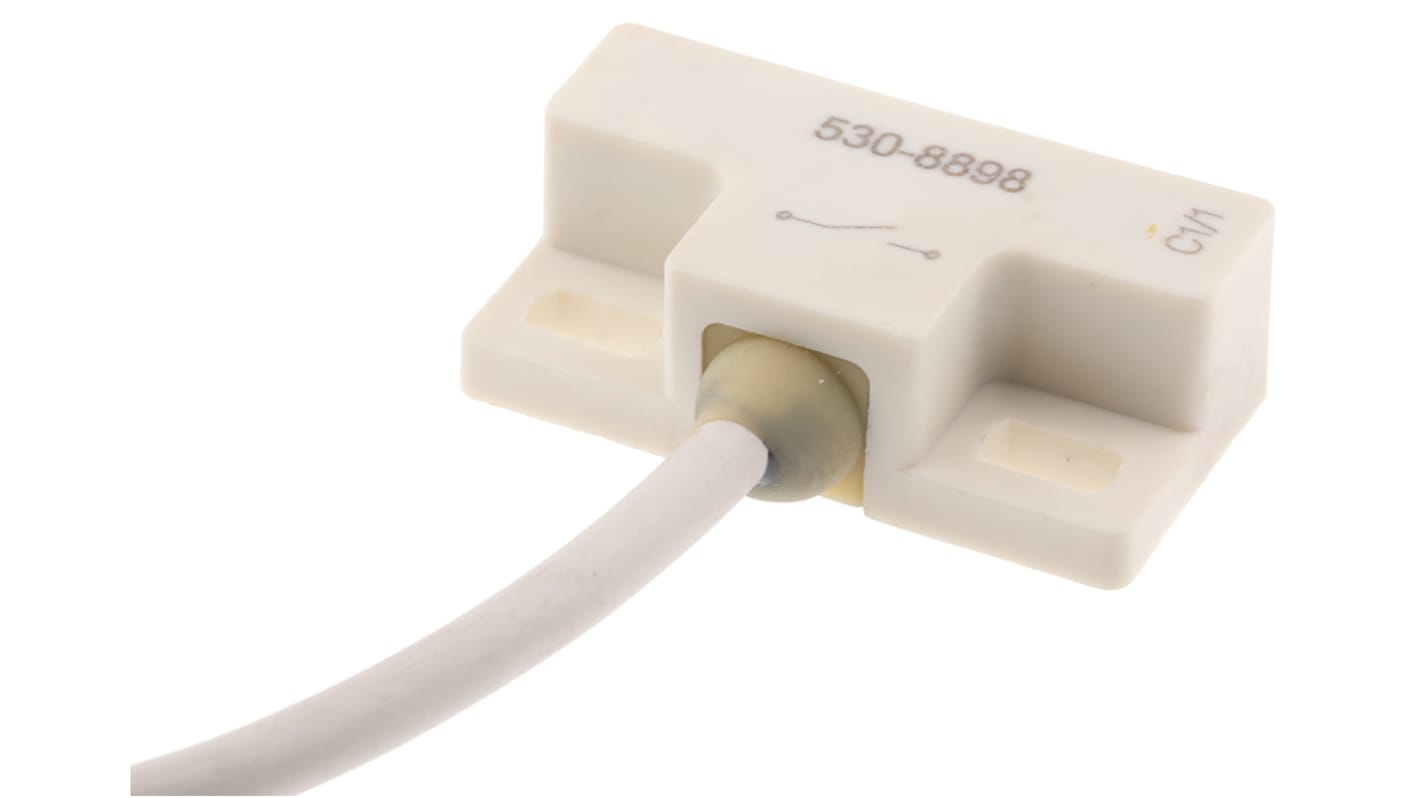

    RS PRO Reed Switch Rectangular 180V, NO, 500mA

    RS-artikelnummer:
    530-8898
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Magnetic Proximity Switches
    68 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    190,67 kr

    (exkl. moms)

    238,34 kr

    (inkl. moms)

    EnheterPer unit
    1 - 4190,67 kr
    5 - 11182,67 kr
    12 +174,89 kr
    RS-artikelnummer:
    530-8898
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    DE

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    DE

    Produktdetaljer

    Side Facing Sensor


    Note

    For best operation, ferromagnetic mounting or fixing materials should not be used.


    Ferromagnetic Metal Detection Sensors


    These Reed proximity switches operate when in the presence of magnetically conductive material. Instead of an actuating magnet, only a simple piece of iron is required to operate the sensor from the front or above. Applications include industrial, end travelling sensing limit switch in pneumatic cylinders, position control, functions control in plant and utility vehicles, security, door and window control, opening recognition contact and fire protection doors.

    Specifikationer

    AttributeValue
    Switch ShapeRectangular
    Pole and Throw ConfigurationSPST
    Normal State ConfigurationNO
    Terminal TypeWire Lead
    Maximum Current500mA
    Maximum AC Voltage180V
    Maximum DC Voltage200V
    Contact Resistance150mΩ
    Total Length32.4mm
    Length500mm
    Minimum Operating Temperature-30°C
    Depth10mm
    Maximum Operating Temperature+80°C
    Dimensions32.4 x 16.7 x 10mm
    Width16.7mm
