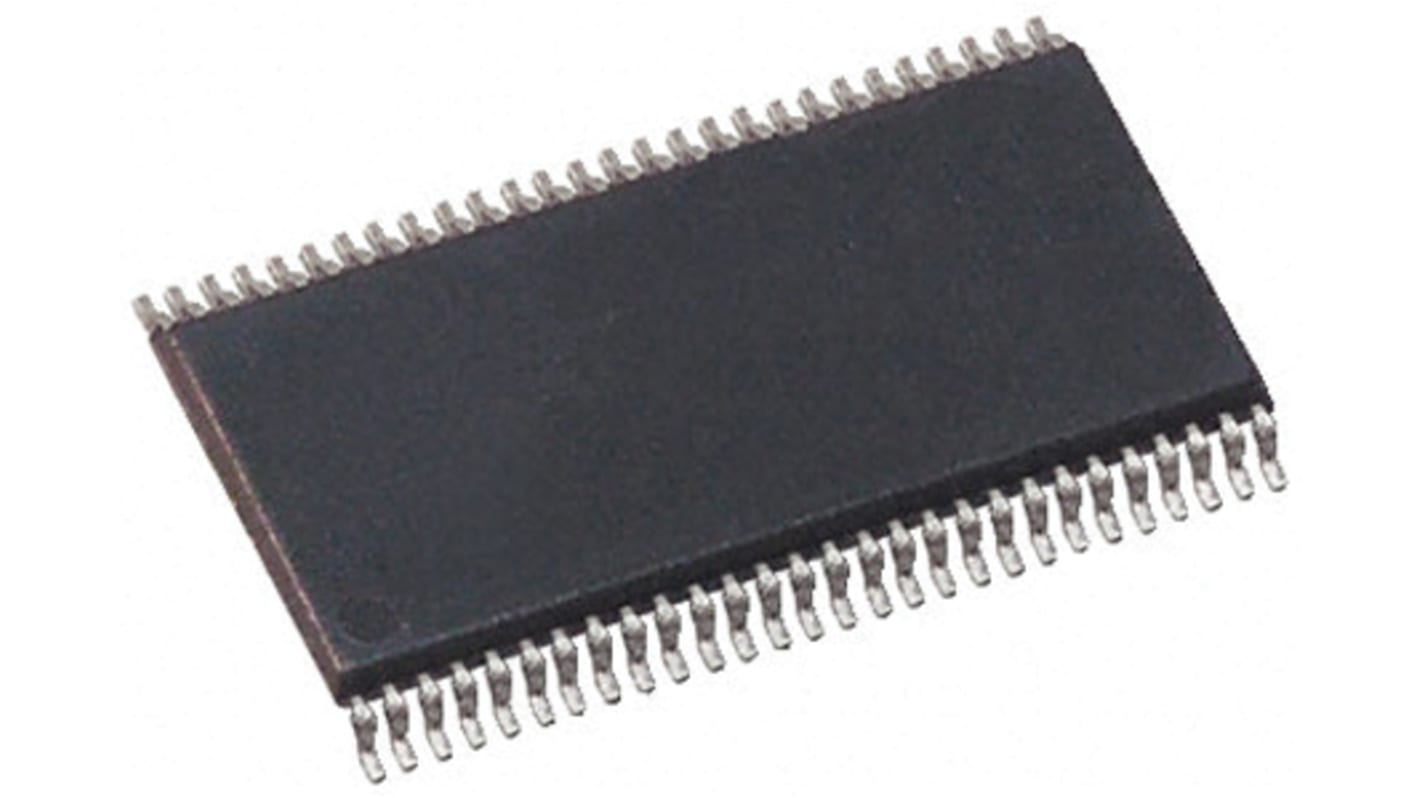

Name: Texas Instruments SN75LVDS82DGG, LVDS Receiver 28 LVTTL, 56-Pin TSSOP
Brand: Texas Instruments
SKU: 923-3978
Price: 57.91 SEK
Availability: Discontinued

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Texas Instruments
	Number of Drivers	28
	Input Type	LVDS
	IC Type	Receiver IC
	Output Type	LVTTL
	Transmission Data Rate	238Mbps
	Number of Elements per Chip	4
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Pin Count	56
	Differential Input Low Threshold Voltage	-100mV
	Dimensions	14 x 6.1 x 1.15mm
	Height	1.15mm
	Length	14mm
	Maximum Operating Supply Voltage	3.6 V
	Minimum Operating Supply Voltage	3 V
	Width	6.1mm
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	0 °C

	Välj alla
	Brand Texas Instruments
	Number of Drivers 28
	Input Type LVDS
	IC Type Receiver IC
	Output Type LVTTL
	Transmission Data Rate 238Mbps
	Number of Elements per Chip 4
	Mounting Type Surface Mount
	Package Type TSSOP
	Pin Count 56
	Differential Input Low Threshold Voltage -100mV
	Dimensions 14 x 6.1 x 1.15mm
	Height 1.15mm
	Length 14mm
	Maximum Operating Supply Voltage 3.6 V
	Minimum Operating Supply Voltage 3 V
	Width 6.1mm
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature 0 °C

ESD Control Selection Guide V1

LVDS Line Receivers, Texas Instruments

A range of Differential line receivers for balanced or unbalanced digital data transmission via LVDS networks fromTexas Instruments.

LVDS Communication

Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.

Applications: Firewire, SATA, SCSI
