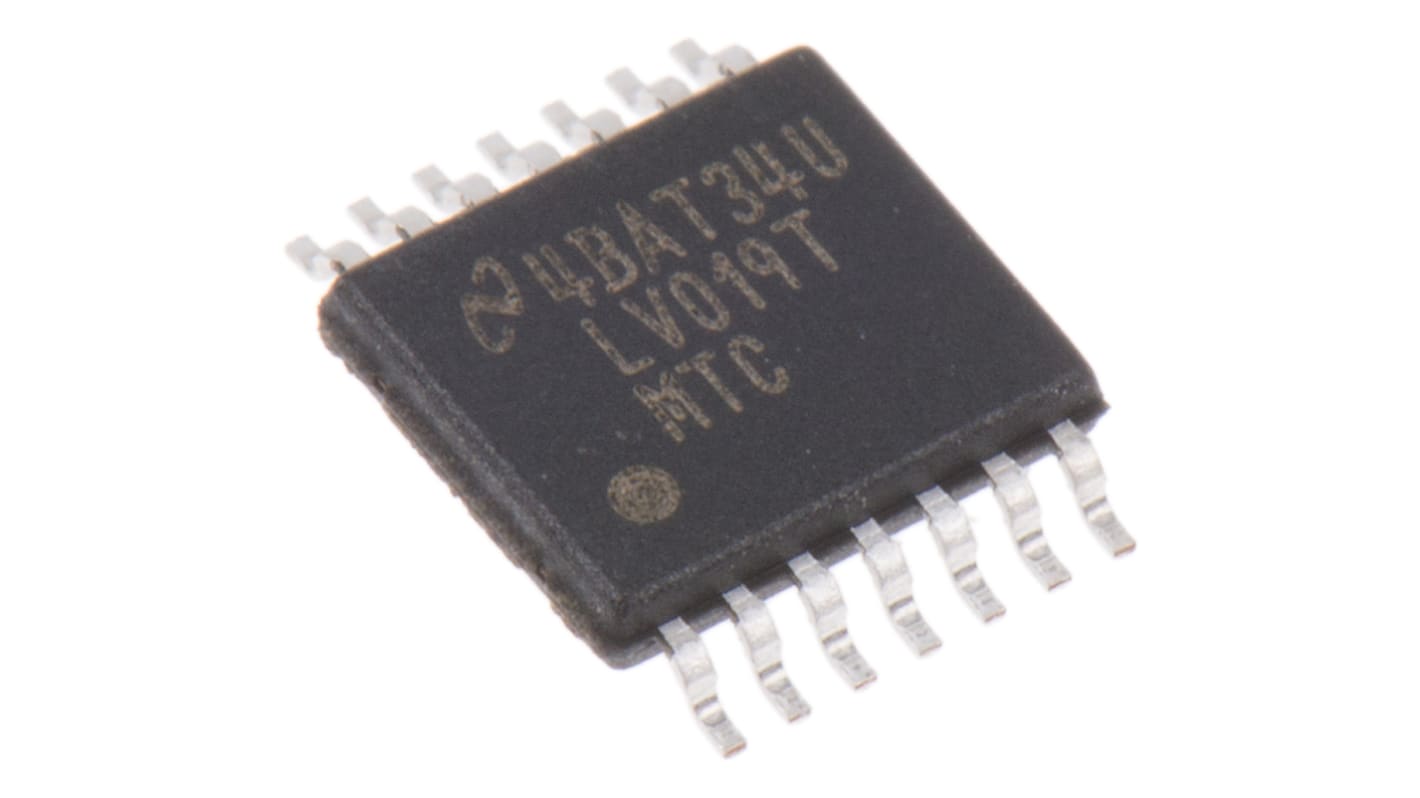

Texas Instruments DS90LV019TMTC/NOPB, LVDS Transceiver Dual LVCMOS, LVDS, LVTTL Driver, Receiver, 14-Pin TSSOP
- RS-artikelnummer:
- 121-8727
- Tillv. art.nr:
- DS90LV019TMTC/NOPB
- Tillverkare / varumärke:
- Texas Instruments
188 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 94)
24,634 kr
(exkl. moms)
30,792 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 94 - 94 | 24,634 kr | 2 315,596 kr |
| 188 - 376 | 19,707 kr | 1 852,458 kr |
| 470 + | 18,475 kr | 1 736,65 kr |
- RS-artikelnummer:
- 121-8727
- Tillv. art.nr:
- DS90LV019TMTC/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
Differential Line Drivers and Receivers (LVDS PHY), Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifikationer
Attribute | Value |
|---|---|
| Number of Drivers | 2 |
| Input Type | LVCMOS, LVDS, LVTTL |
| IC Type | Transceiver IC |
| Output Type | Driver, Receiver |
| Transmission Data Rate | 100Mbps |
| Number of Elements per Chip | 2 |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 14 |
| Dimensions | 5 x 4.4 x 0.9mm |
| Height | 0.9mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 3 V |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
