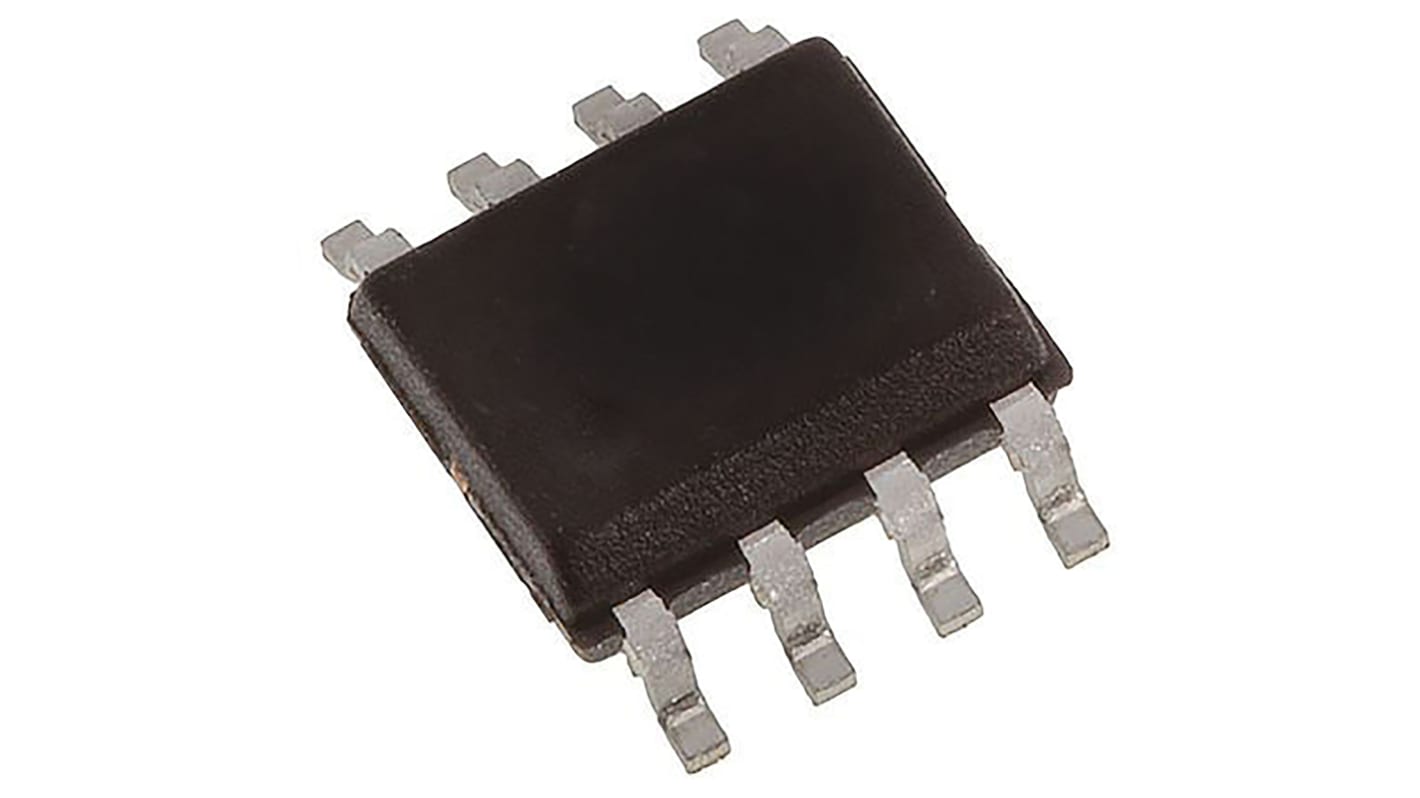

Maxim Integrated MAX3462ESA+ Line Transceiver, 3 State, 8-Pin SOIC

Se alla Line Interface ICs
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer att finnas i lager igen, den har utgått från tillverkaren.
RS-artikelnummer:
192-3122
Tillv. art.nr:
MAX3462ESA+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Product Type

Line Transceiver

Logic Family

BiCMOS

Logic Function

Line Driver

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

3 State

Mount Type

Surface

Package Type

SOIC

Pin Count

8

Minimum Supply Voltage

0.3V

Maximum Supply Voltage

6V

Maximum High Level Output Current

-4mA

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

20ns

Maximum Low Level Output Current

4mA

Maximum Operating Temperature

85°C

Width

6.2 mm

Series

MAX3462

Height

1.75mm

Length

5mm

Standards/Approvals

No

Supply Current

4mA

Automotive Standard

No

COO (Country of Origin):
US
Guaranteed 20Mbps Data Rate

20ns Transmitter and Receiver Propagation Delay

2ns Transmitter and Receiver Skew

High Differential Driver Output Level (2.1V on 54Ω)

Hot-Swap Versions

1μA Shutdown Supply Current

Low Supply Current Requirements (2.5mA typ)

Allow Up to 128 Transceivers on the Bus

True Fail-Safe Receiver

Designed for Multipoint Transmissions on Long or Noisy Bus Lines

Full Duplex and Half Duplex Versions Available

Phase Controls to Correct for Twisted-Pair Reversal for 14-Pin Versions

Current-Limiting and Thermal Shutdown for Driver Overload Protection

Applications

High-Speed RS-422 Communications

High-Speed RS-485 Communications

Industrial Control Local Area Networks

Level Translators

PROFIBUS Applications
