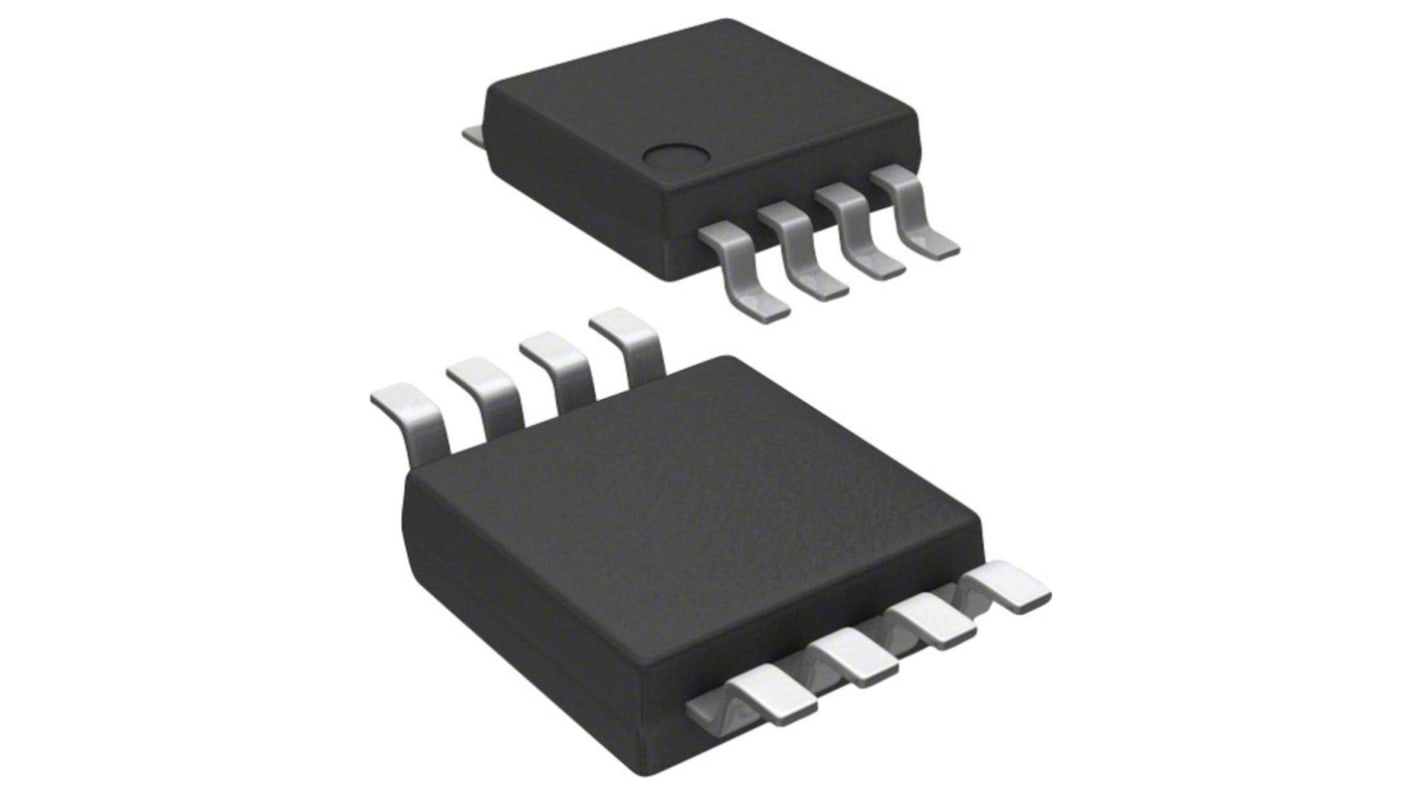

Maxim Integrated MAX3488AEGSA+ Line Transceiver, 3 State, 8-Pin SOIC

RS-artikelnummer:: 192-2830
Tillv. art.nr:: MAX3488AEGSA+
Tillverkare / varumärke:: Maxim Integrated

Maxim Integrated MAX3488AEGSA+ Line Transceiver, 3 State, 8-Pin SOIC

Mängdrabatt möjlig

Antal (1 förpackning med 5 enheter)*

383,71 kr

(exkl. moms)

479,64 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Håller på att utgå

Slutlig(a) 45 enhet(er), redo att levereras

Enheter	Per enhet	Per förpackning*
5 - 5	76,742 kr	383,71 kr
10 - 20	68,992 kr	344,96 kr
25 - 95	65,318 kr	326,59 kr
100 +	59,002 kr	295,01 kr

*vägledande pris

RS-artikelnummer:: 192-2830
Tillv. art.nr:: MAX3488AEGSA+
Tillverkare / varumärke:: Maxim Integrated

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Maxim Integrated
	Product Type	Line Transceiver
	Logic Family	CMOS
	Logic Function	Driver & Receiver
	IC Type	Line Transceiver IC
	Input Type	Differential
	Output Type	3 State
	Mount Type	Surface
	Package Type	SOIC
	Minimum Supply Voltage	3V
	Pin Count	8
	Maximum Supply Voltage	3.6V
	Maximum High Level Output Current	-20mA
	Maximum Propagation Delay Time @ CL	35ns
	Minimum Operating Temperature	-40°C
	Maximum Low Level Output Current	20mA
	Maximum Operating Temperature	105°C
	Length	5mm
	Width	6.2 mm
	Standards/Approvals	No
	Series	MAX3488AE
	Height	1.75mm
	Automotive Standard	No
	Supply Current	4mA

	Välj alla
	Brand Maxim Integrated
	Product Type Line Transceiver
	Logic Family CMOS
	Logic Function Driver & Receiver
	IC Type Line Transceiver IC
	Input Type Differential
	Output Type 3 State
	Mount Type Surface
	Package Type SOIC
	Minimum Supply Voltage 3V
	Pin Count 8
	Maximum Supply Voltage 3.6V
	Maximum High Level Output Current -20mA
	Maximum Propagation Delay Time @ CL 35ns
	Minimum Operating Temperature -40°C
	Maximum Low Level Output Current 20mA
	Maximum Operating Temperature 105°C
	Length 5mm
	Width 6.2 mm
	Standards/Approvals No
	Series MAX3488AE
	Height 1.75mm
	Automotive Standard No
	Supply Current 4mA

COO (Country of Origin):: TH

Devices in the MAX3483AE family are ±20kV ESD-protected RS-485/422 transceivers, optimized for extended cable runs in noisy environments. All devices operate from a single 3. 3V supply. The MAX3483AE and MAX3485AE are half-duplex transceivers. The MAX3488AE, MAX3490AE, and MAX3491AE are full-duplex transceivers. The MAX3483AE/85AE have a 1-unit load receiver input impedance, allowing up to 32 transceivers on the bus. The MAX3488AE/90AE/91AE have a 1/4-unit load receiver input impedance, allowing up to 128 transceivers on the bus.

Integrated Protection Increases Robustness

High ESD Protection

Short-Circuit Protected Outputs

True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open Events

Hot-Swap Capability Eliminates False Transitions During Power-Up or Hot Insertion

High-Speed Data Rates up to 20Mbps

Allows Up to 128 Transceivers on the Bus

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
