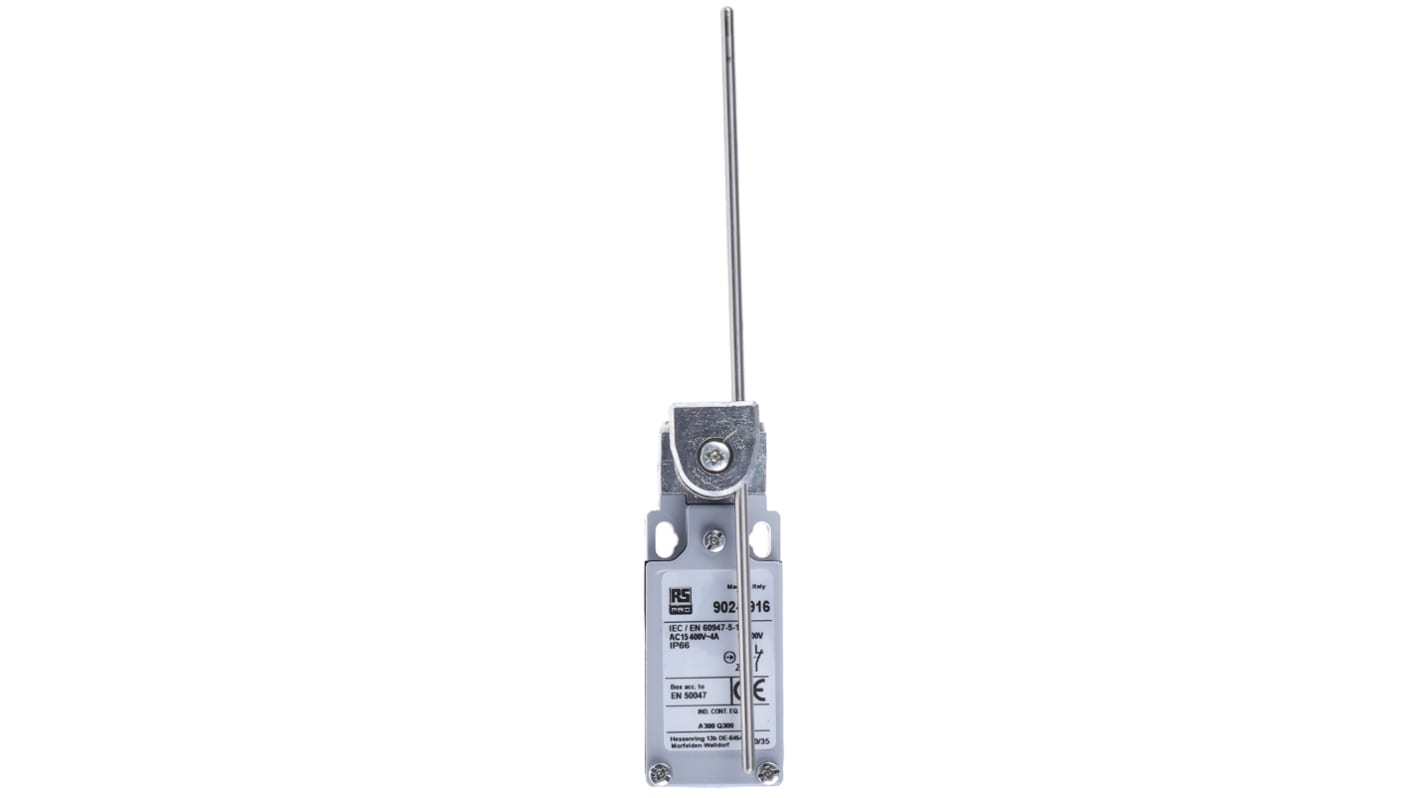

RS PRO Rod Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

Se alla Limit Switches

Antal (1 enhet)*

364,31 kr

(exkl. moms)

455,39 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 27 enhet(er) är redo att levereras
  • Plus 33 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 7 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +364,31 kr

*vägledande pris

RS-artikelnummer:
902-6916
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Actuator Type

Rod

Pole and Throw Configuration

DPST

Normal State Configuration

NO/NC

IP Rating

IP66

Maximum Current

10A

Housing Material

Zinc Alloy

Maximum AC Voltage

400V

Maximum DC Voltage

250V

Connection Type

Cable

Action Type

Snap Action

Length

30.3mm

Maximum Operating Temperature

+70°C

Width

232.5mm

Depth

32.5mm

Minimum Operating Temperature

-25°C

Mounting Orientation

Vertical

Mechanical Life

15000000Operations

Operating Force

0.1 N

COO (Country of Origin):
IT

RS PRO Snap Action Limit Switch, Zinc Alloy, NO/NC, Roller Lever, 400 V, IP66


This limit switch from RS PRO has an adjustable lever actuator that changes the electrical switches from the open to closed position and vice versa. This can activate or deactivate electrical circuits or indicate object position, presence and absence or limit of travel.


This limit switch is made from a strong, durable zinc alloy that has excellent resistance to corrosion. It has an IP66 rating, so it's completely dust-tight and waterproof.

The adjustable lever gives you a variety of options when installing this switch, making it a versatile choice. The switch features snap-action NO (normally open) and NC (normally closed) contacts. It complies with US (ANSI/ESD S20.20:2014) and UK (BS EN 61340-5-1:2007) electrostatic discharge (ESD) standards, so it won't interfere with electronic equipment.

Features and Benefits



  • Adjustable lever actuator type

  • Cable connection type

  • Snap-action contact type

  • Dimensions of 30.3 (length) x 232.5 (width) x 32.5 mm (depth)

  • Zinc alloy housing material

  • IP66 rated

  • Maximum voltage of 400 V AC

  • Maximum current of 10 A

  • Maximum voltage of 250 V DC

  • Operating temperature range of -25°C to +70°C

  • Mechanical life (minimum) of 15000000 operations

  • Vertical mounting orientation

  • NO/NC normal state configuration

  • Operating force of 0.1 N

  • DPST (double pole, single throw) configuration

  • Meets CE, CSA, RU, UL standards

  • Screw terminal type
