RS PRO Spring Lever Limit Switch, 1NO/1NC, IP65, Aluminium Housing, 400V ac Max, 10A Max

Se alla Limit Switches

Antal (1 enhet)*

469,98 kr

(exkl. moms)

587,48 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.
I lager
  • 79 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +469,98 kr

*vägledande pris

RS-artikelnummer:
120-073
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Actuator Type

Spring Lever

Normal State Configuration

1NO/1NC

IP Rating

IP65

Maximum Current

10A

Housing Material

Aluminium

Maximum AC Voltage

400V

Maximum DC Voltage

250V

Connection Type

M20

Action Type

Snap Action

Length

200mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Depth

43mm

Width

40mm

Standards Met

IEC/EN 60947

Operating Force

0.18Nm

Mounting Orientation

Side Mount

Output Type

Analogue

COO (Country of Origin):
IT

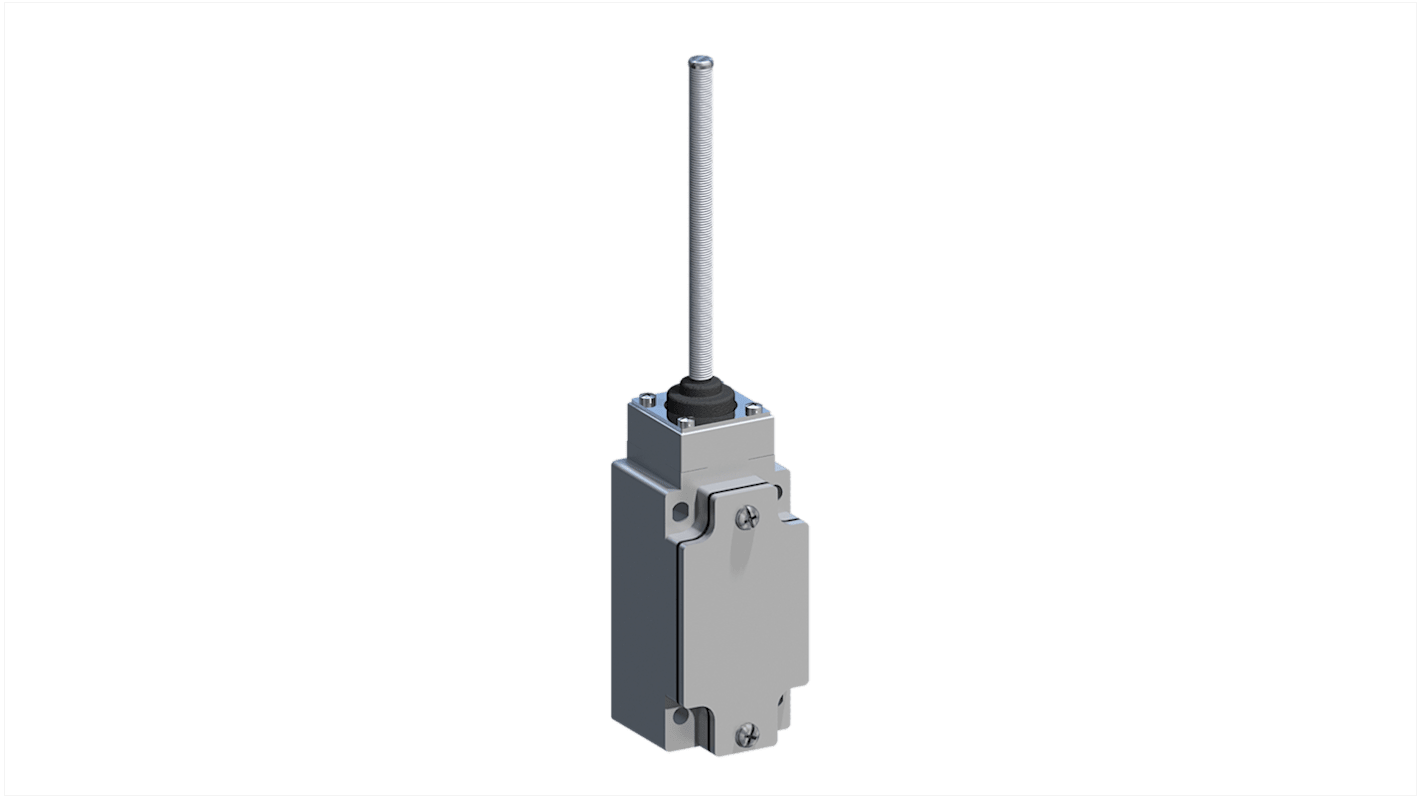

RS PRO 10A Snap Action NO/NC Spring Lever Limit Switch


A limit switch with a multidirectional spring lever actuator providing presence/absence, positioning, travel and counting detection control. Constructed from hardwearing Aluminium the spring lever action limit switch is rated to an IP65 level for protection from dust and water and class II protection against shock.

The switch is designed with snap action NO/NC contacts and an operating force of 0.18Nm. The spring limit switch is installed using M20 x 1.5 cable entry and M3.5 screw terminal complete with cable clamp for a secure connection.

The limit switch provides a service life of 10,000,000 mechanical operations and can achieve 3600 operations per hour. Suitable for industrial applications.

Features and Benefits


Lever limit switch

Snap action contacts

1NO/1NC configuration

IP65 rated

40 x 43 x 200mm dimensions

230g weight

25MΩ contact resistance

Standards and Approvals: IEC EN 60947-5-1
