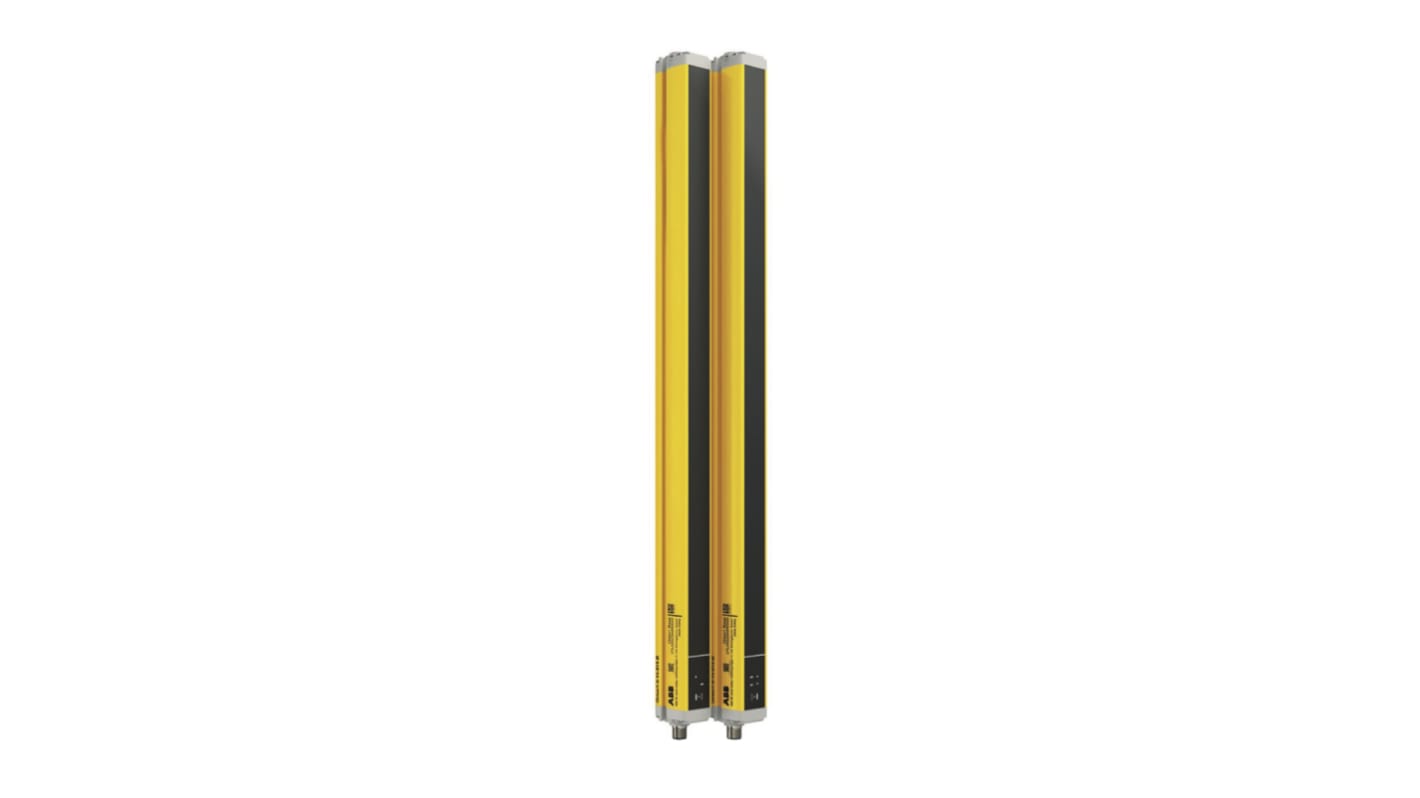

ABB Ljusridå Mottagare, 64 balkar, 30 mm upplösning e Typ 4

Se alla Ljusgardiner

Antal (1 par)*

29 748,30 kr

(exkl. moms)

37 185,38 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 3 enhet(er) från den 27 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Par
Per par
1 +29 748,30 kr

*vägledande pris

RS-artikelnummer:
920-9701
Tillv. art.nr:
2TLA022302R0700 Orion1-4-30-120-B
Tillverkare / varumärke:
ABB
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Varumärke

ABB

Produkttyp

Ljusridå

Strålupplösning

30mm

Komponenttyp

Mottagare

Säkerhetstyp

Typ 4

Standarder/godkännanden

e

Antal balkar

64

Skyddshöjd

1200mm

Maximal matningsspänning

24V dc

Maximal skyddsbredd

19m

Minsta skanningsavstånd

0.2m

Maximalt skanningsavstånd

19m

Längd

1283mm

Maximal svarstid

21ms

Bredd

32.3mm

Höjd

37mm

Terminaltyp

Skruv

COO (ursprungsland):
HU

ABB Orion1 Light Curtains


The Orion1 light curtains from ABB are supplied with a transmitter and receiver. They can be installed close to a dangerous machine and are designed for finger or hand detection. The Orion1 is available in two options, a base model and an extended model.

Features and Benefits


No more functions or settings than necessary

A local reset button can be connected directly to the light curtain: no need for cable between the reset button and the electrical cabinet or for an extra control module.

Each light curtain can monitor the actuators without any extra control module (EDM function)

Alignment help and a wide angle within the limits of a Type 4 device facilitate alignment

Rotation brackets simplify alignment too

M12 connectors speed up cabling

The alignment level being displayed, the alignment can be improved before the occurrence of the unwanted stop

Extensive error indication reduces troubleshooting time

Protective tubes and lens shields protect the devices in harsh environments

Muting sensors are connected directly to the extended model, with no need for a remote extra muting module

6 m and 19 m operating distances (finger and hand detection)

Compact dimensions

Applications


Finger and hand detection

When the light guard is required to be close to the hazardous zone

When repeated access to the machine is necessary, manually serviced machines for example

For area protection (horizontal mounting) and limitation of work zones

Ljusridå


Note

Both the base and extended models provide detection, local reset and external device monitoring (EDM), but the extended model also provides muting.

Approvals

CE, cULus, TUV.

Standards

EN ISO 13849-1:2008 PL e, Cat 4
EN 61508-1..4:2010 SIL3
EN 62061:2005/A1:2013 SIL CL 3
