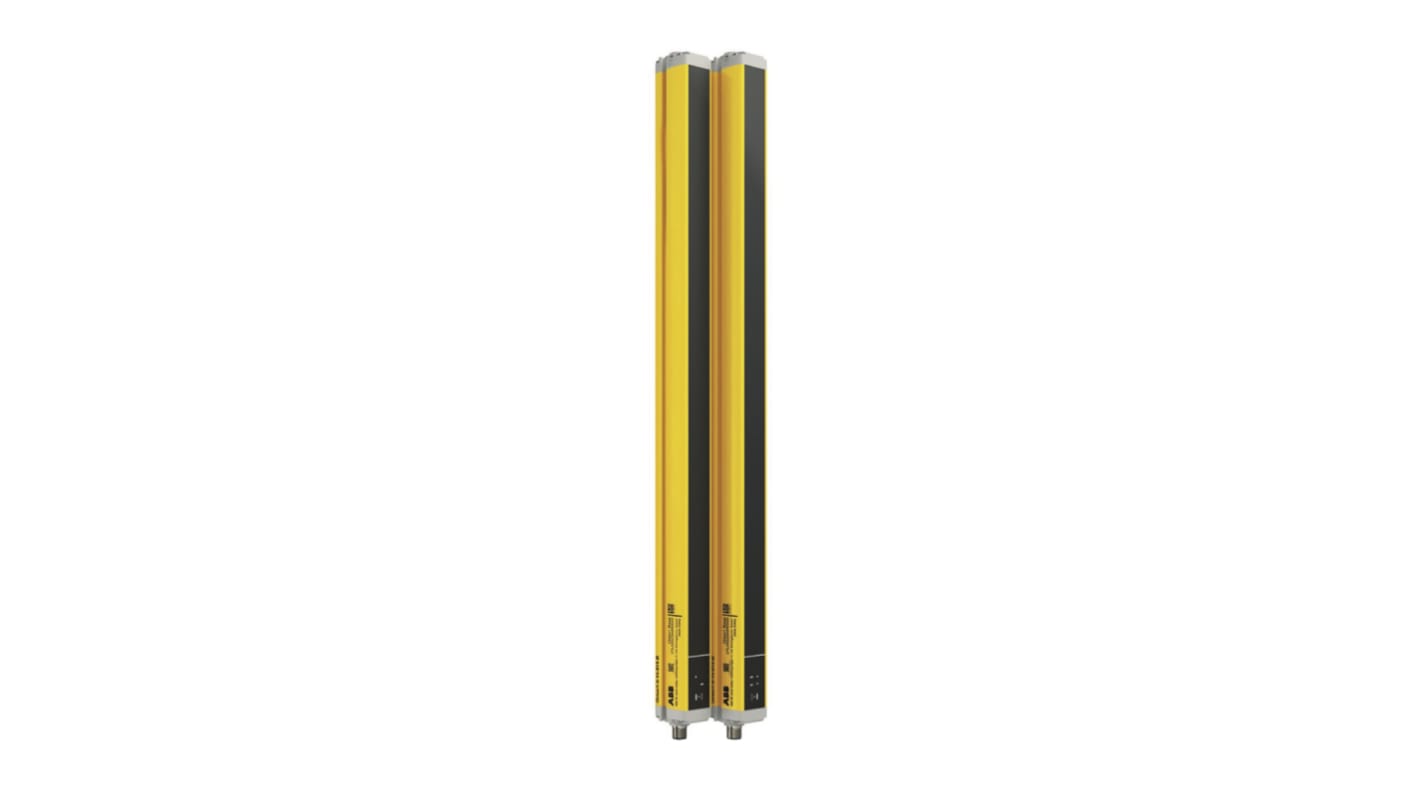

    ABB Orion1 Light Curtain, Sender & Receiver, 32 Beam(s), 30mm Resolution

    ABB
    RS-artikelnummer:
    920-9697
    Tillv. art.nr:
    2TLA022302R0300 Orion1-4-30-060-B
    Tillverkare / varumärke:
    ABB
    Se alla Light Curtains
    Tillfälligt slut i lager restorder för leverans 2023-10-13
    Add to Basket
    Par

    Lagt till varukorgen

    Pris (ex. moms) 1 Pair(s)

    14 929,98 kr

    (exkl. moms)

    18 662,48 kr

    (inkl. moms)

    ParPer Pair
    1 +14 929,98 kr

    Alternatives

    Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.

    presentation
    RS-artikelnummer
    920-9694

    Pris (ex. moms) 1 Pair(s)

    11 134,37 kr

    (exkl. moms)

    13 917,96 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    920-9701

    Pris (ex. moms) 1 Pair(s)

    22 925,18 kr

    (exkl. moms)

    28 656,48 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    920-9704

    Pris (ex. moms) 1 Pair(s)

    14 080,81 kr

    (exkl. moms)

    17 601,01 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    920-9708

    Pris (ex. moms) 1 Pair(s)

    15 966,96 kr

    (exkl. moms)

    19 958,70 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    920-9710

    Pris (ex. moms) 1 Pair(s)

    31 837,73 kr

    (exkl. moms)

    39 797,16 kr

    (inkl. moms)

    presentation
    RS-artikelnummer
    920-9717

    Pris (ex. moms) 1 Pair(s)

    26 409,41 kr

    (exkl. moms)

    33 011,76 kr

    (inkl. moms)

    RS-artikelnummer:
    920-9697
    Tillv. art.nr:
    2TLA022302R0300 Orion1-4-30-060-B
    Tillverkare / varumärke:
    ABB

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    IT

    Produktdetaljer

    ABB Orion1 Light Curtains


    The Orion1 light curtains from ABB are supplied with a transmitter and receiver. They can be installed close to a dangerous machine and are designed for finger or hand detection. The Orion1 is available in two options, a base model and an extended model.

    Features and Benefits


    No more functions or settings than necessary
    A local reset button can be connected directly to the light curtain: no need for cable between the reset button and the electrical cabinet or for an extra control module.
    Each light curtain can monitor the actuators without any extra control module (EDM function)
    Alignment help and a wide angle within the limits of a Type 4 device facilitate alignment
    Rotation brackets simplify alignment too
    M12 connectors speed up cabling
    The alignment level being displayed, the alignment can be improved before the occurrence of the unwanted stop
    Extensive error indication reduces troubleshooting time
    Protective tubes and lens shields protect the devices in harsh environments
    Muting sensors are connected directly to the extended model, with no need for a remote extra muting module
    6 m and 19 m operating distances (finger and hand detection)
    Compact dimensions

    Applications


    Finger and hand detection
    When the light guard is required to be close to the hazardous zone
    When repeated access to the machine is necessary, manually serviced machines for example
    For area protection (horizontal mounting) and limitation of work zones

    Note

    Both the base and extended models provide detection, local reset and external device monitoring (EDM), but the extended model also provides muting.

    Standards

    EN ISO 13849-1:2008 PL e, Cat 4
    EN 61508-1..4:2010 SIL3
    EN 62061:2005/A1:2013 SIL CL 3

    Approvals

    CE, cULus, TUV.


    Light Curtain

    Specifikationer

    AttributeValue
    RangeOrion1
    Beam Resolution30mm
    Component TypeReceiver, Sender
    Safety Type4
    PL EN ISO 13849-1e
    Number of Beams32
    Protective Height600mm
    Minimum Scanning Distance0.2m
    Maximum Scanning Distance19m
    Maximum Response Time14 ms
    Length683mm
    Height37mm
    Supply Voltage24 V dc
    Terminal TypeM12 Connector
    Features32 Beams, Hand Protection, Type 4 Safety Category
    Dimensions683.2 x 32.3 x 36.9 mm
    Width32mm
    ApplicationHand
