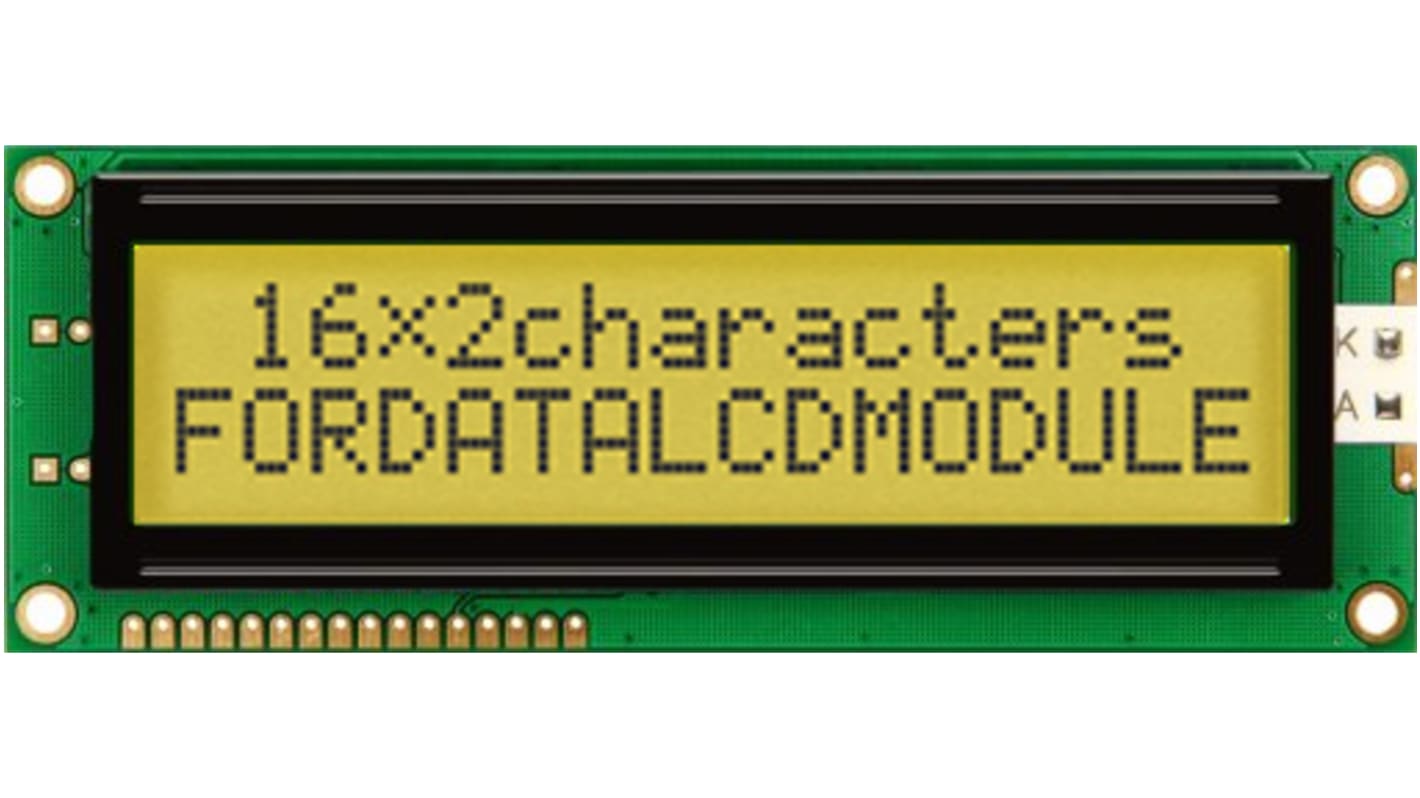

Fordata FC1602P00-FHYYBW-51SE FC Alphanumeric LCD Graphic Display, Green, Yellow on, 2 Rows by 16 Characters,
- RS-artikelnummer:
- 163-1921
- Tillv. art.nr:
- FC1602P00-FHYYBW-51SE
- Tillverkare / varumärke:
- Fordata
Mängdrabatt möjlig
Antal (1 enhet)*
268,58 kr
(exkl. moms)
335,72 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 17 enhet(er) är redo att levereras
- Dessutom levereras 12 enhet(er) från den 24 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 268,58 kr |
| 10 - 24 | 227,25 kr |
| 25 + | 211,12 kr |
*vägledande pris
- RS-artikelnummer:
- 163-1921
- Tillv. art.nr:
- FC1602P00-FHYYBW-51SE
- Tillverkare / varumärke:
- Fordata
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Fordata | |
| Display Type | Alphanumeric | |
| Character Matrix | 2 Rows by 16 Characters | |
| Character Rows | 2 | |
| Characters per Row | 16 | |
| Character Height | 9.7mm | |
| Character Width | 4.8mm | |
| Viewing Area Dimensions | 99 x 24mm | |
| Viewing Area Height | 24mm | |
| Viewing Area Width | 99mm | |
| External Depth | 13.2mm | |
| Backlight Type | LED | |
| Illumination Colour | Green, Yellow | |
| External Width | 122mm | |
| External Dimensions | 122 x 13.2 x 44mm | |
| External Height | 44mm | |
| Controller Type | SPLC780D | |
| Display Mode | Transflective | |
| Display Matrix Technology | STN | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 5.5V | |
| Operating Temperature Range | -20 → +70°C | |
| Current Rating | 4mA | |
| Series | FC | |
| Driver Mounting | COB | |
| Välj alla | ||
|---|---|---|
Brand Fordata | ||
Display Type Alphanumeric | ||
Character Matrix 2 Rows by 16 Characters | ||
Character Rows 2 | ||
Characters per Row 16 | ||
Character Height 9.7mm | ||
Character Width 4.8mm | ||
Viewing Area Dimensions 99 x 24mm | ||
Viewing Area Height 24mm | ||
Viewing Area Width 99mm | ||
External Depth 13.2mm | ||
Backlight Type LED | ||
Illumination Colour Green, Yellow | ||
External Width 122mm | ||
External Dimensions 122 x 13.2 x 44mm | ||
External Height 44mm | ||
Controller Type SPLC780D | ||
Display Mode Transflective | ||
Display Matrix Technology STN | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 5.5V | ||
Operating Temperature Range -20 → +70°C | ||
Current Rating 4mA | ||
Series FC | ||
Driver Mounting COB | ||
- COO (Country of Origin):
- CN
5x8 Dots with cursor
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
