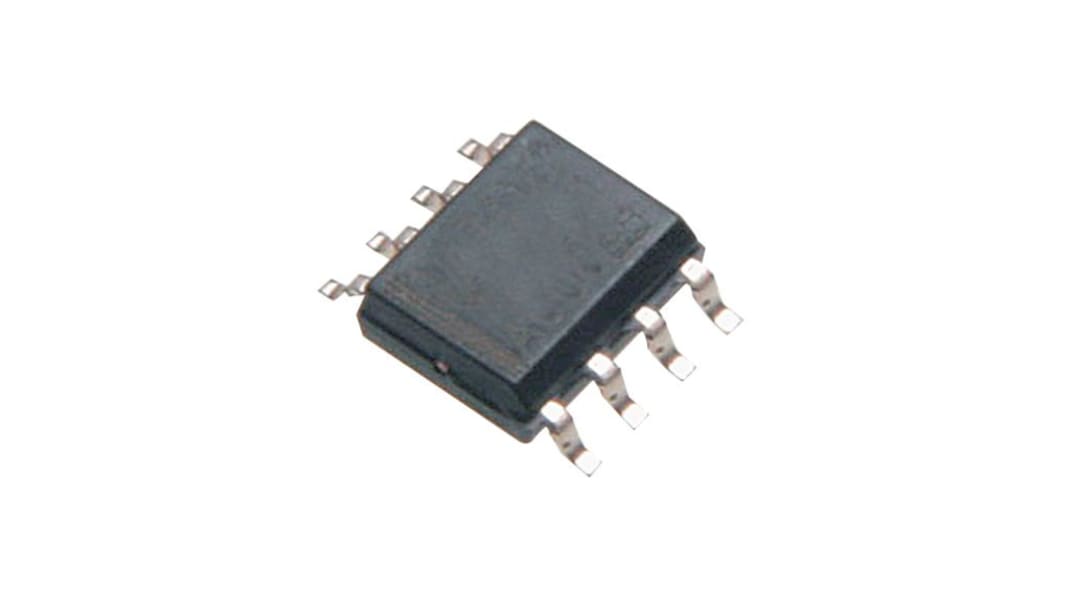

IC Haus IC-WKL SO8 N Type 2.7 → 6 V Laser Diode Driver 8 SOIC

Se alla Laser Drivers
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
288-4596
Distrelec artikelnummer:
173-50-884
Tillv. art.nr:
IC-WKL SO8
Tillverkare / varumärke:
IC Haus
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

IC Haus

Diode Types Driven

N Type

Laser Type Driven

CW

Dimensions

5 x 6 x 2mm

Package Type

SOIC

Number of Pins

8

Supply Voltage Range

2.7 → 6 V

COO (Country of Origin):
DE
The Laser Diode Driver designed for continuous wave operation. It operates in a supply voltage range of 2.4 to 6 V and can handle a laser drive current of up to 70 mA. This driver offers a rapid soft start after power-on, simple power adjustment via an external resistor, and a control loop accuracy better than 1% with changes in temperature, supply voltage, and load current.

CW operation up to 90 mA from 2.4 to 6 V supply voltage
Rapid soft start after power-on typical within 70 μs
Simple power adjustment via external resistor
Control loop accuracy better than 1% with changes in temperature, supply voltage, and load current
Integrated reverse polarity protection for the driver and laser diode
Strong suppression of transients with very small external capacitors
Permanent shutdown with excessive temperature and overcurrent
Wide monitor current range from 10 μA to 2.5 mA
