Apem 3-Axis Hall Effect Joystick Button, Hall Effect, IP65, IP68 4.75V

Se alla Joysticks
Mängdrabatt möjlig

Antal (1 enhet)*

3 967,68 kr

(exkl. moms)

4 959,60 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 1 enhet(er), redo att levereras
Enheter
Per enhet
1 - 43 967,68 kr
5 - 93 650,30 kr
10 - 243 570,90 kr
25 - 493 253,38 kr
50 +2 975,73 kr

*vägledande pris

RS-artikelnummer:
693-2332
Tillv. art.nr:
HFX-45S12
Tillverkare / varumärke:
APEM
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

APEM

Number of Axes

3

Switch Technology

Hall Effect

IP Rating

IP65, IP68

Handle Type

Button

Contact Voltage Rating

4.75V

Contact Current Rating

10 mA @ 5 V ac

Joystick Travel

36 °

Mechanical Life

3000000Cycles

Depth Behind Panel

32.77mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Operating Temperature Range

-25 → +70°C

COO (Country of Origin):
US

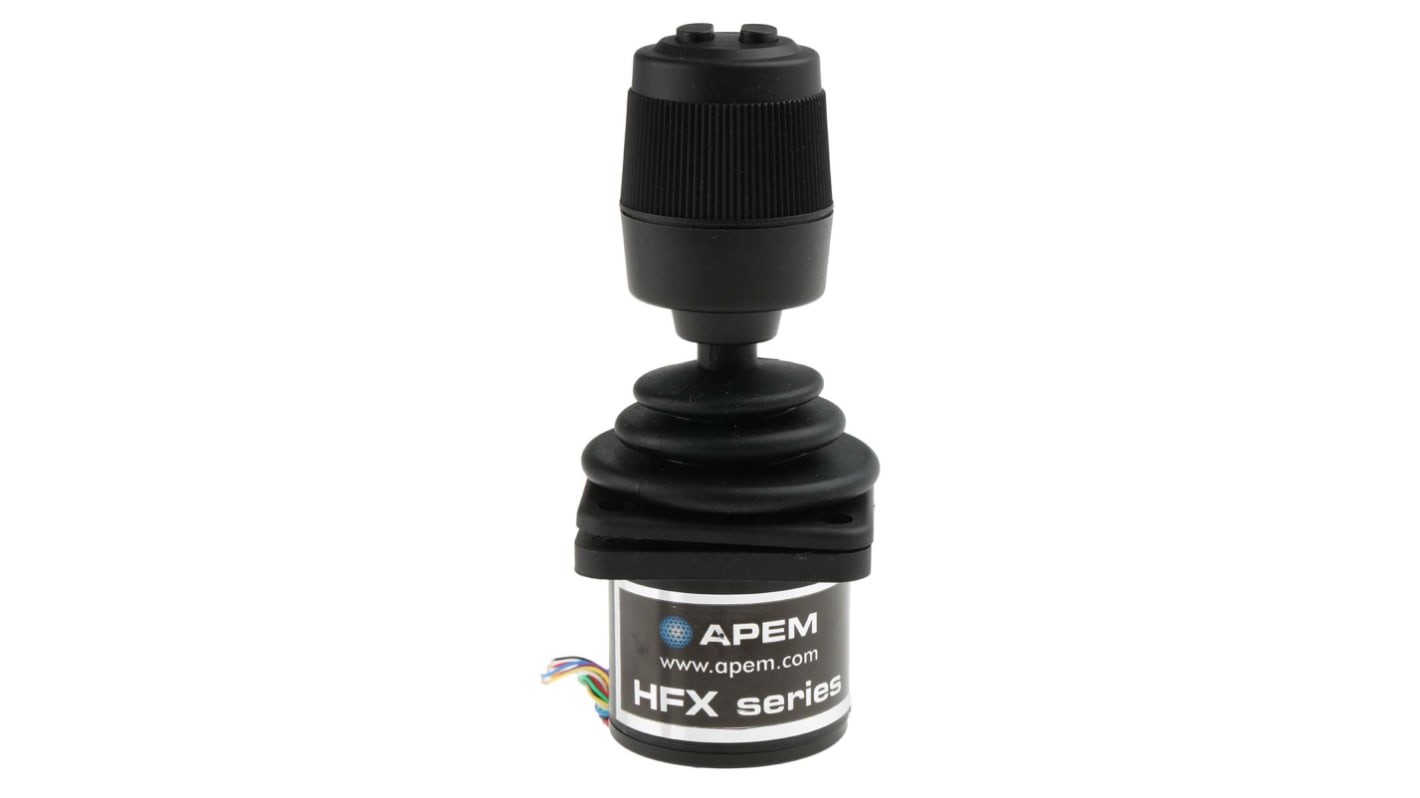

APEM Joystick Button


The APEM 3 way contactless joystick button has an operating life of 3000000 cycles and contact electrical current rating of 10mA and voltage rating of 5VAC. It has 3-axes format, which covers X, Y and Z axes and each provides one proportional output. The stick controls the X and Y axis while the handle incorporates the Z-axis. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analogue signals or custom PWM output options. This joystick is designed for performance, strength and robustness. A square limiter has been fitted, giving the full movement of the stick.

Features and Benefits


Precision analogue control
One, two, or three axes operation
Range of fingertip handle options
Operating temperature range is between -25℃ and 70℃

Certifications


IP65 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP68 rated
