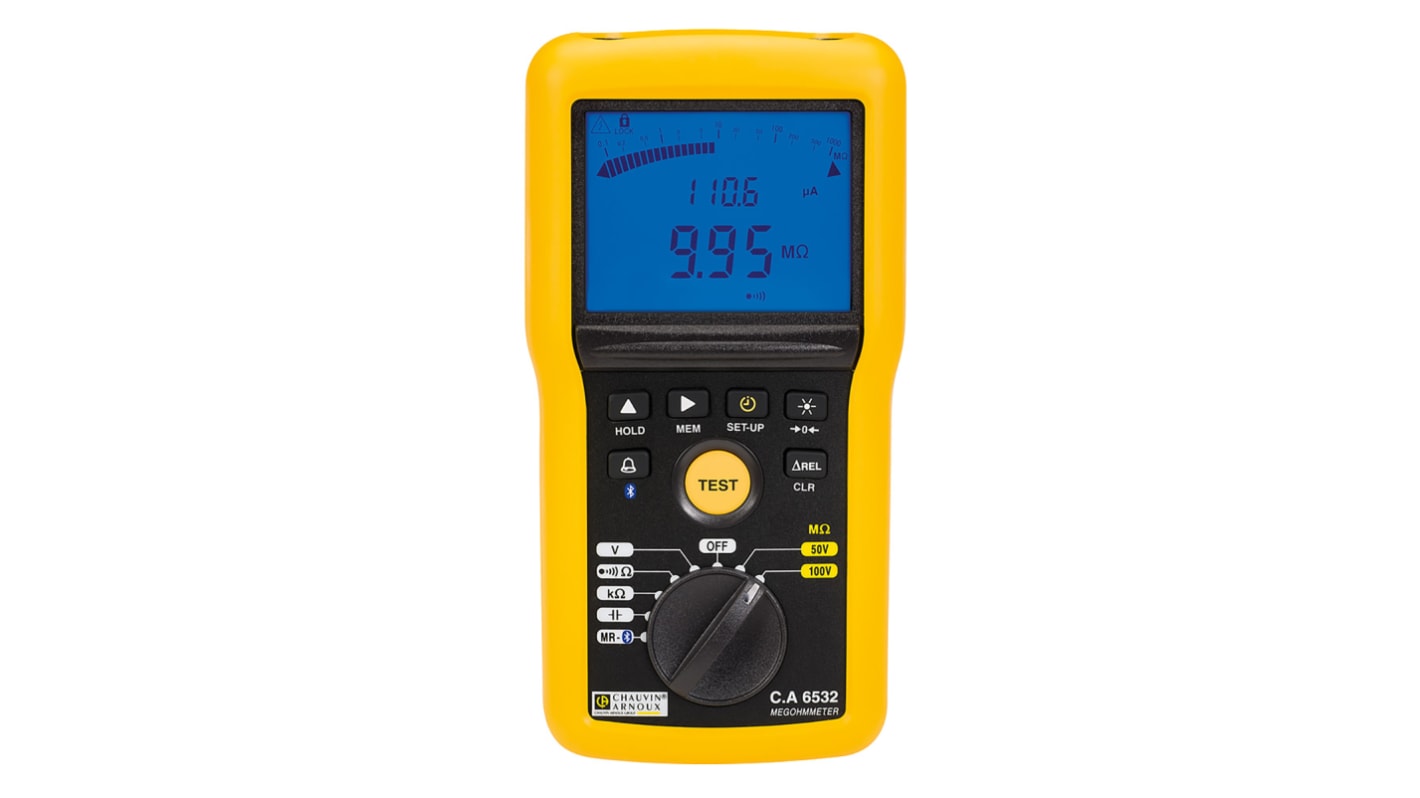

Chauvin Arnoux CA 6532 Insulation & Continuity Tester, 50V Min, 100V Max, 20GΩ Max, CAT IV
- RS-artikelnummer:
- 914-2881
- Tillv. art.nr:
- P01140832
- Tillverkare / varumärke:
- Chauvin Arnoux
Antal (1 enhet)*
10 621,97 kr
(exkl. moms)
13 277,46 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 1 enhet(er) från den 05 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 + | 10 621,97 kr |
*vägledande pris
- RS-artikelnummer:
- 914-2881
- Tillv. art.nr:
- P01140832
- Tillverkare / varumärke:
- Chauvin Arnoux
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Model Number p | CA 6532 | |
| Tester Type | Insulation & Continuity Tester | |
| Minimum Test Voltage | 50V | |
| Maximum Test Voltage | 100V | |
| Maximum Insulation Resistance Measurement | 20GΩ | |
| Display Type | Backlit LCD | |
| Test Current | 200 mA, 20mA | |
| Battery Life | 3000 Measurements, 6000 Measurements | |
| Power Source | Battery | |
| Battery Type | AA | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Safety Category Voltage | 600V | |
| Safety Category | CAT IV 600V | |
| Safety Category Level | CAT IV | |
| Length | 108mm | |
| Width | 60mm | |
| Weight | 850g | |
| Dimensions | 108 x 60 x 211mm | |
| Height | 211mm | |
| Välj alla | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Model Number p CA 6532 | ||
Tester Type Insulation & Continuity Tester | ||
Minimum Test Voltage 50V | ||
Maximum Test Voltage 100V | ||
Maximum Insulation Resistance Measurement 20GΩ | ||
Display Type Backlit LCD | ||
Test Current 200 mA, 20mA | ||
Battery Life 3000 Measurements, 6000 Measurements | ||
Power Source Battery | ||
Battery Type AA | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Safety Category Voltage 600V | ||
Safety Category CAT IV 600V | ||
Safety Category Level CAT IV | ||
Length 108mm | ||
Width 60mm | ||
Weight 850g | ||
Dimensions 108 x 60 x 211mm | ||
Height 211mm | ||
RoHS-status: Undantagen
- COO (Country of Origin):
- FR
Chauvin Arnoux Insulation and Continuity Tester for Telecom Applications
Chauvin Arnoux model C.A 6532 is a simple-to-use insulation and continuity tester designed for telecommunications applications. It is the instrument of choice for measurements on telephone lines by insulation testing at 50 V or 100 V. Its ΔREL function can be used to obtain the difference in resistance between two pairs of wires. The length of the line being tested is displayed automatically by programming the line capacitance in nF/km.
Features and Benefits
Insulation tests at 50 V or 100 V
Measurement of resistance, capacitance, leakage current and AC voltage
Measurement of difference in resistance between 2 wires in a pair by using the ΔREL function
Display of length of line being tested, because of programming linear capacitance in nF/km
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54
Measurement of resistance, capacitance, leakage current and AC voltage
Measurement of difference in resistance between 2 wires in a pair by using the ΔREL function
Display of length of line being tested, because of programming linear capacitance in nF/km
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54
Supplied with
Carrying bag for hands-free use, elbowed-straight safety leads 1.5 m long (1 red, 1 black) , red crocodile clip, black test probe, wire-grips (1 red, 1 black), batteries (x6), multilingual user manual on CD, quick start-up guide, multilingual safety datasheet, CD containing Megohmmeter Transfer software
