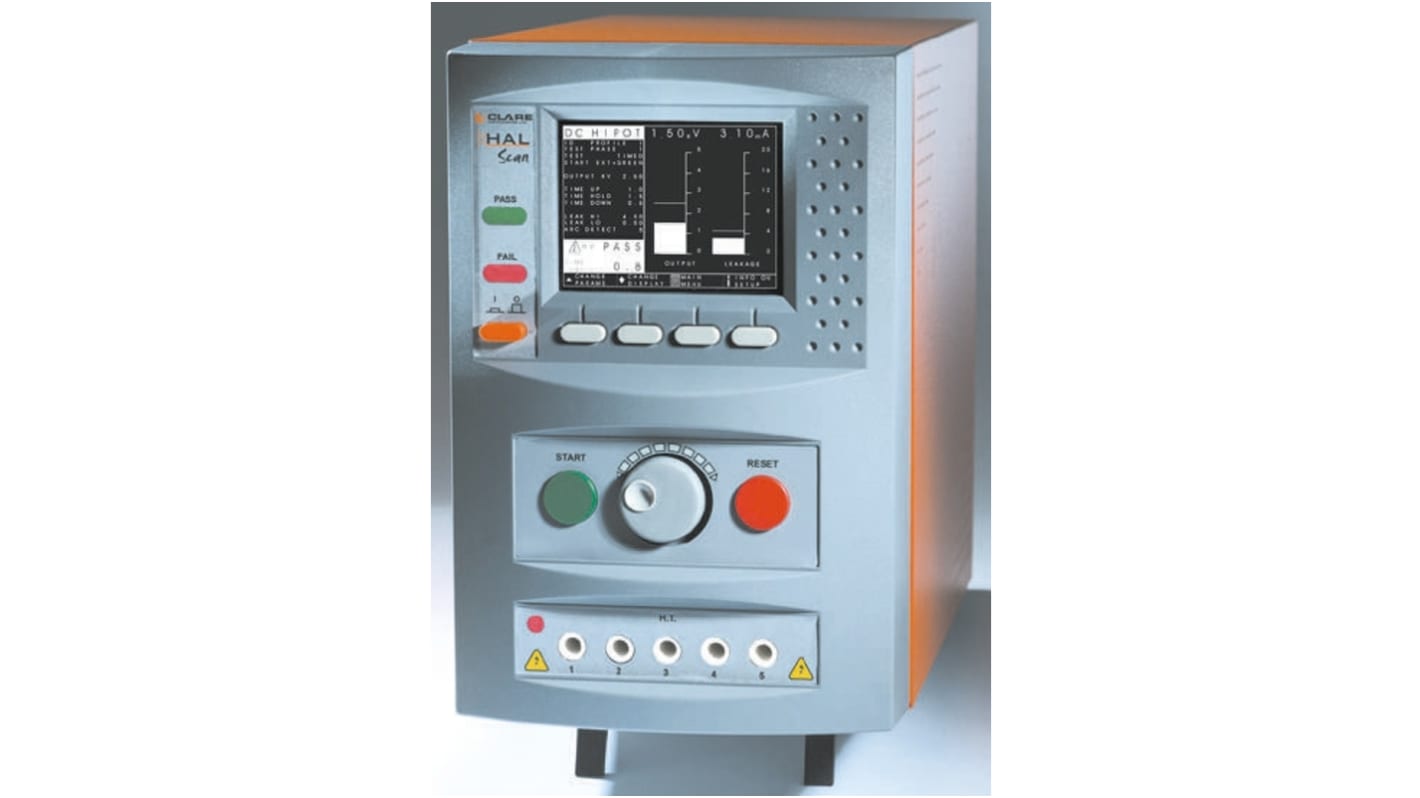

Seaward Clare H101 Hipot Tester, 250V Min, 5000 V ac, 6000V dc Max, 999.9MΩ Max

The Seaward Clare H101 is a high-voltage and insulation resistance tester designed for testing the electrical safety of various electrical equipment. It's a versatile instrument that can perform both AC and DC flash/hipot tests, as well as DC insulation resistance tests.

The HAL 101 offers simple straightforward operation in a factory test or lab/compliance environment. Providing simple manual testing or complete automated operation, equipment can be tested quickly and safely.

The Seaward Clare H101 HAL series 1kV insulation and ground bond tester offers an outstanding level of flexibility and functionality to dramatically improve the quality and productivity of production line safety testing. It has a range of different tests and functionality, which provides a solution for any production line testing requirement from low volume manual testing through to high volume automated test programmes. A choice of automatic, manual or direct PC modes offers maximum flexibility for use and control of the tester. Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard.

Supplied with
HT probe (Yellow), HT clip lead, Guard Plug, UK mains lead.

Earth Bond Test
AC / DC Flash / Hipot Test
Insulation Resistance
Scanner
Arc detection - can detect and indicate the presence of arcs during testing.
Visual Alarm
Audible Alarm
Storage of test results
Predefined and custom test sequences
PLC interface
Fast automatic production testing using sequence capability
Internal storage of up to 6000 test results and test sequences for easy review and analysis
Graphical representation of test voltage and pass fail limits on a 320 x 240 VGA graphical LCD
Operating Temperature between 0°C and 40°C
Single-button operation with simple PASS/FAIL indication
Compatible with the BrainCell equipment tagging system
Provides bar-code read facility for control of inventory
Prints product ID and test reports, when connected to a printer
User-friendly interface: Features a large, graphical display and intuitive controls for easy operation.
Fast automatic production testing using sequence capability
Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard, EN 50191

The Seaward Clare H101 is commonly used in various industries, including manufacturing, electrical testing laboratories, and maintenance facilities. It's a reliable and accurate tool for ensuring the electrical safety of products and equipment and found in the following areas:
Cables
Transformers
Motors/generators
Circuit breakers
Bushings

EN50191
IEC/EN 60990
