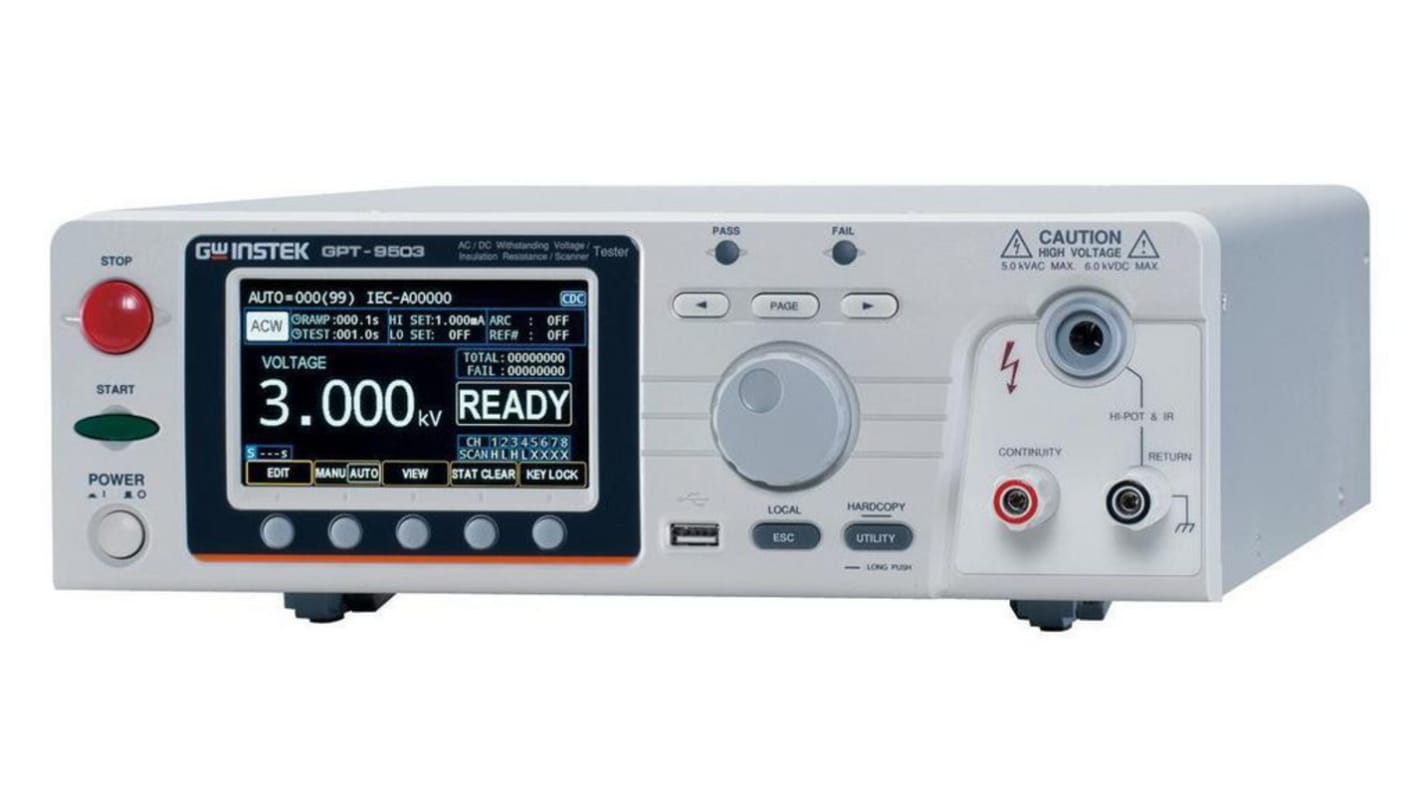

GW Instek GPT-9503 Insulation Tester, 50V dc Min, 6000V Max, 10GΩ Max

The GPT-9503 is a multi-channel high voltage (hipot) tester designed for testing the electrical safety of various components and devices by applying high voltages to them and measuring their response.

The reliable and versatile AC 150VA Multi-Channel Hipot Tester meets safety regulations and provides AC withstanding voltage, DC withstanding voltage, and insulation resistance, making it ideal for routine tests on electronic components.

Output voltage range 0.050kV ∼ 6.000kV for DC withstanding
Insulation resistance measurement range 0.1M Ω ∼ 10G Ω
Export/Import of setting parameters via USB flash drive for efficiency
8-Channel output with H or X status settings for Different Models
USB and RS-232C connectivity for control and data acquisition - allows for easy data transfer and connection to a computer
ARC detect and short-circuit current features for safety
Rise Time, Fall Time, and timer functions for precise testing
AC and DC voltage testing
Ground bond and continuity testing - tests the integrity of ground connections and continuity of circuits
Large colour LCD 4.3 inch display - provides clear and easy-to-read test results
LED indicators show the status of the tester
User-friendly interface - intuitive controls and menus for simple operation
Data logging and storage - stores test results for later analysis and documentation
Dimensions – 320x120x435 (WxHxD)mm

The GPT-9503 is a versatile and efficient multi-channel high voltage (hipot) tester that offers several advantages for various applications, including:
• Simultaneous testing of multiple components - its 8-channel capability allows for efficient testing of multiple components or devices at the same time, saving time and resources.
• Testing different electrical parameters - the GPT-9503 can perform AC and DC withstand voltage tests, insulation resistance testing, and ground bond and continuity testing, providing a comprehensive assessment of electrical safety.
• Ensuring product safety and reliability - by identifying potential electrical faults and weaknesses, the GPT-9503 can help prevent accidents, malfunctions, and costly repairs.
• Meeting industry standards - the GPT-9503 is designed to meet relevant electrical safety standards, making it suitable for a wide range of industries and applications.
• Improving manufacturing efficiency - the tester's user-friendly interface and data logging capabilities can streamline quality control processes and improve overall manufacturing efficiency.
