Chauvin Arnoux CA 6528 Insulation & Continuity Tester, 250V Min, 1000V Max, CAT IV - UKAS Calibration

Se alla Insulation Testers

Antal (1 enhet)*

6 222,90 kr

(exkl. moms)

7 778,62 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 2 enhet(er) är redo att levereras
  • Plus 16 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +6 222,90 kr

*vägledande pris

RS-artikelnummer:
282-1817
Tillv. art.nr:
P01140838
Tillverkare / varumärke:
Chauvin Arnoux
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Chauvin Arnoux

Model Number p

CA 6528

Tester Type

Insulation & Continuity Tester

Maximum Test Voltage

1000V

Minimum Test Voltage

250V

Display Type

Backlit LCD

Calibrated

UKAS

Test Current

200mA

Battery Life

1000 5s insulation Measurements at 1000V, 3000 5s continuity Measurements

Battery Type

LR06 AA

Power Source

Battery

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+40°C

Safety Category Level

CAT IV

Safety Category Voltage

600V

Safety Category

CAT IV 600V

Height

64mm

Length

215mm

Width

93mm

Dimensions

215 x 93 x 64mm

Weight

650g

RoHS-status: Undantagen

COO (Country of Origin):
CN

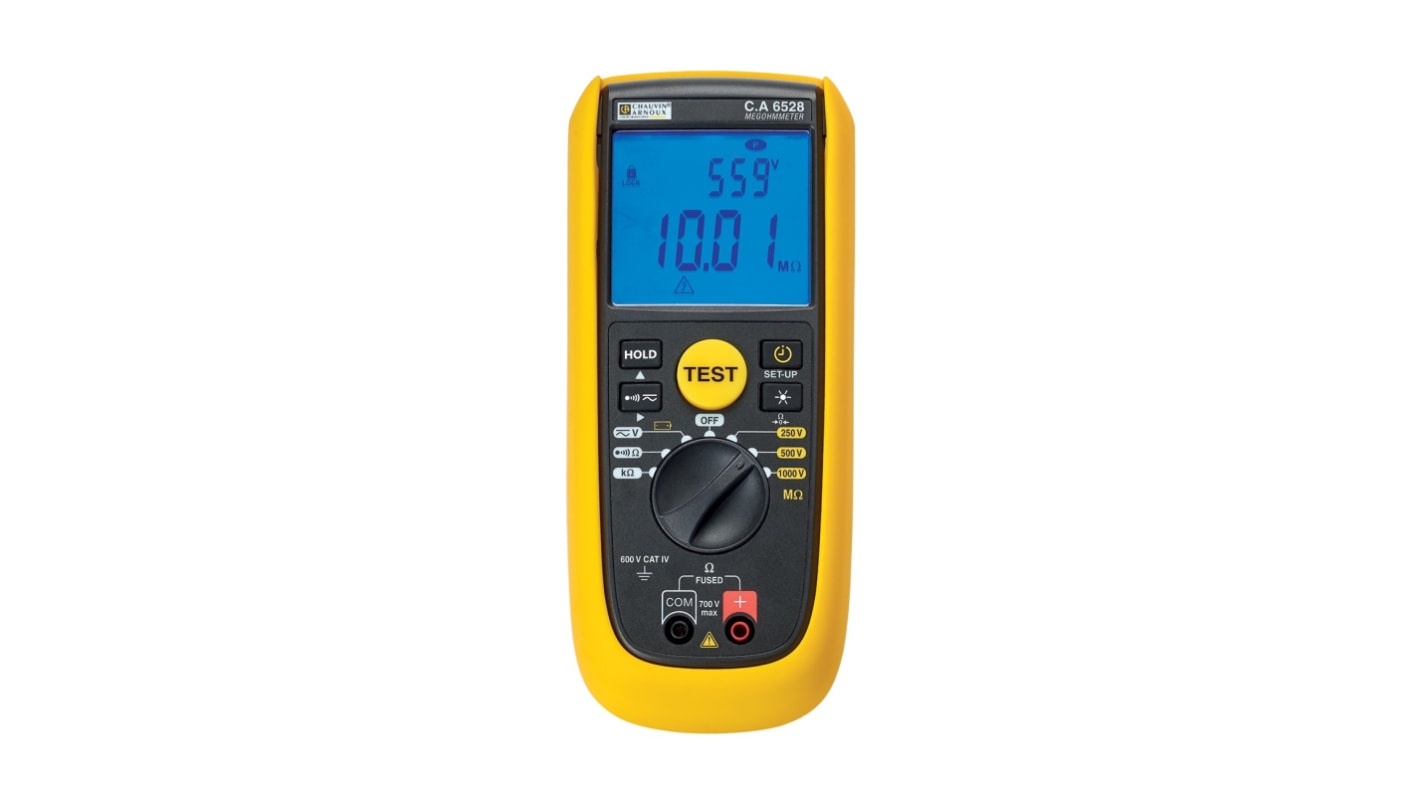

The Chauvin Arnoux CA 6528 insulation tester is ideal for maintenance and repair operations on electrical equipment such as motors, cables, etc. Thanks to its "hands-free" bag, the CA 6528 insulation tester can be used without any constraints in the field. The shockproof sheath with stand (props) ensure stability on horizontal surfaces. The large LCD screen can show the insulation value and the real test voltage simultaneously thanks to its double display. The backlighting makes it easy to read in all circumstances. The CA 6528 indicates the test results instantaneously: the screen turns red if the threshold is overrun. The presence of a hazardous voltage (>30 V) is detected automatically by the CA 6528, which then prohibits insulation testing.

It has voltage range of 0 to 700 VAC/DC
It has Insulation up to 11 GΩ
It also has automatic voltage detection
It has electrical safety standards like IEC 61010-1, 61010-2-030, 61010-2-034 - 600V CAT IV
It has IP40 rating for protection
