Chauvin Arnoux CA 6528 Insulation & Continuity Tester, 0 V Min, 700 V Max, 9.99 GΩ CAT IV
- RS-artikelnummer:
- 282-1816
- Tillv. art.nr:
- P01140838
- Tillverkare / varumärke:
- Chauvin Arnoux
Antal (1 enhet)*
5 917,90 kr
(exkl. moms)
7 397,38 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 1 enhet(er) från den 19 januari 2026
- Dessutom levereras 12 enhet(er) från den 19 januari 2026
- Dessutom levereras 5 enhet(er) från den 26 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 + | 5 917,90 kr |
*vägledande pris
- RS-artikelnummer:
- 282-1816
- Tillv. art.nr:
- P01140838
- Tillverkare / varumärke:
- Chauvin Arnoux
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Insulation Tester | |
| Model Number | CA 6528 | |
| Tester Type | Insulation & Continuity Tester | |
| Maximum Test Voltage | 700V | |
| Minimum Test Voltage | 0V | |
| Display Type | LCD Backlight | |
| Test Current | 200mA | |
| Power Source | Battery | |
| Battery Type | AA LR06 | |
| Insulation Testing Resistance | 9.99GΩ | |
| Safety Category Level | CAT IV | |
| Safety Category Voltage | 600V | |
| Length | 215mm | |
| Width | 108 mm | |
| Standards/Approvals | IEC 610102034, IEC 61010031 | |
| Height | 64mm | |
| Weight | 850g | |
| Välj alla | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Insulation Tester | ||
Model Number CA 6528 | ||
Tester Type Insulation & Continuity Tester | ||
Maximum Test Voltage 700V | ||
Minimum Test Voltage 0V | ||
Display Type LCD Backlight | ||
Test Current 200mA | ||
Power Source Battery | ||
Battery Type AA LR06 | ||
Insulation Testing Resistance 9.99GΩ | ||
Safety Category Level CAT IV | ||
Safety Category Voltage 600V | ||
Length 215mm | ||
Width 108 mm | ||
Standards/Approvals IEC 610102034, IEC 61010031 | ||
Height 64mm | ||
Weight 850g | ||
RoHS-status: Undantagen
- COO (Country of Origin):
- CN

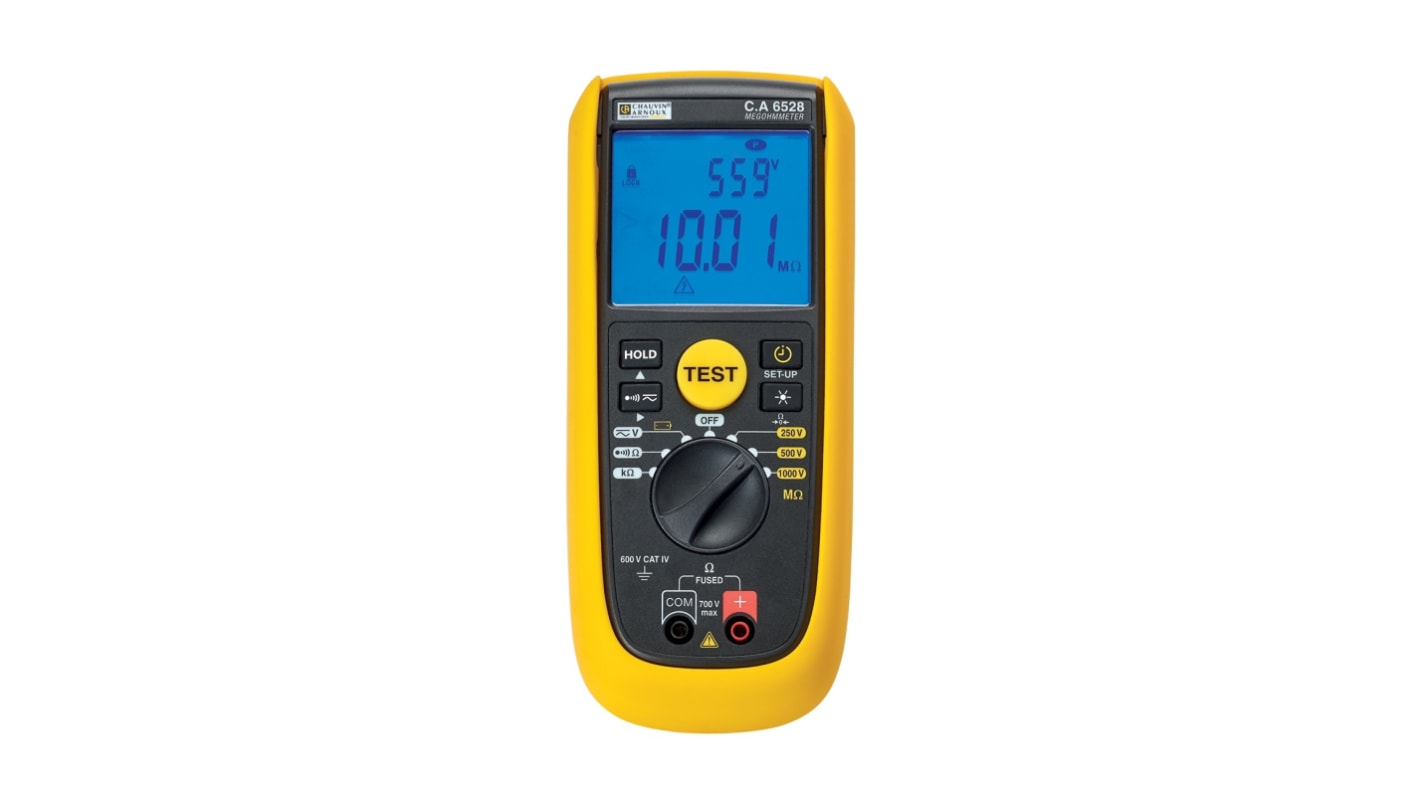

The Chauvin Arnoux CA 6528 insulation tester is ideal for maintenance and repair operations on electrical equipment such as motors, cables, etc. Thanks to its "hands-free" bag, the CA 6528 insulation tester can be used without any constraints in the field. The shockproof sheath with stand (props) ensure stability on horizontal surfaces. The large LCD screen can show the insulation value and the real test voltage simultaneously thanks to its double display. The backlighting makes it easy to read in all circumstances. The CA 6528 indicates the test results instantaneously: the screen turns red if the threshold is overrun. The presence of a hazardous voltage (>30 V) is detected automatically by the CA 6528, which then prohibits insulation testing.
It has voltage range of 0 to 700 VAC/DC
It has Insulation up to 11 GΩ
It also has automatic voltage detection
It has electrical safety standards like IEC 61010-1, 61010-2-030, 61010-2-034 - 600V CAT IV
It has IP40 rating for protection
