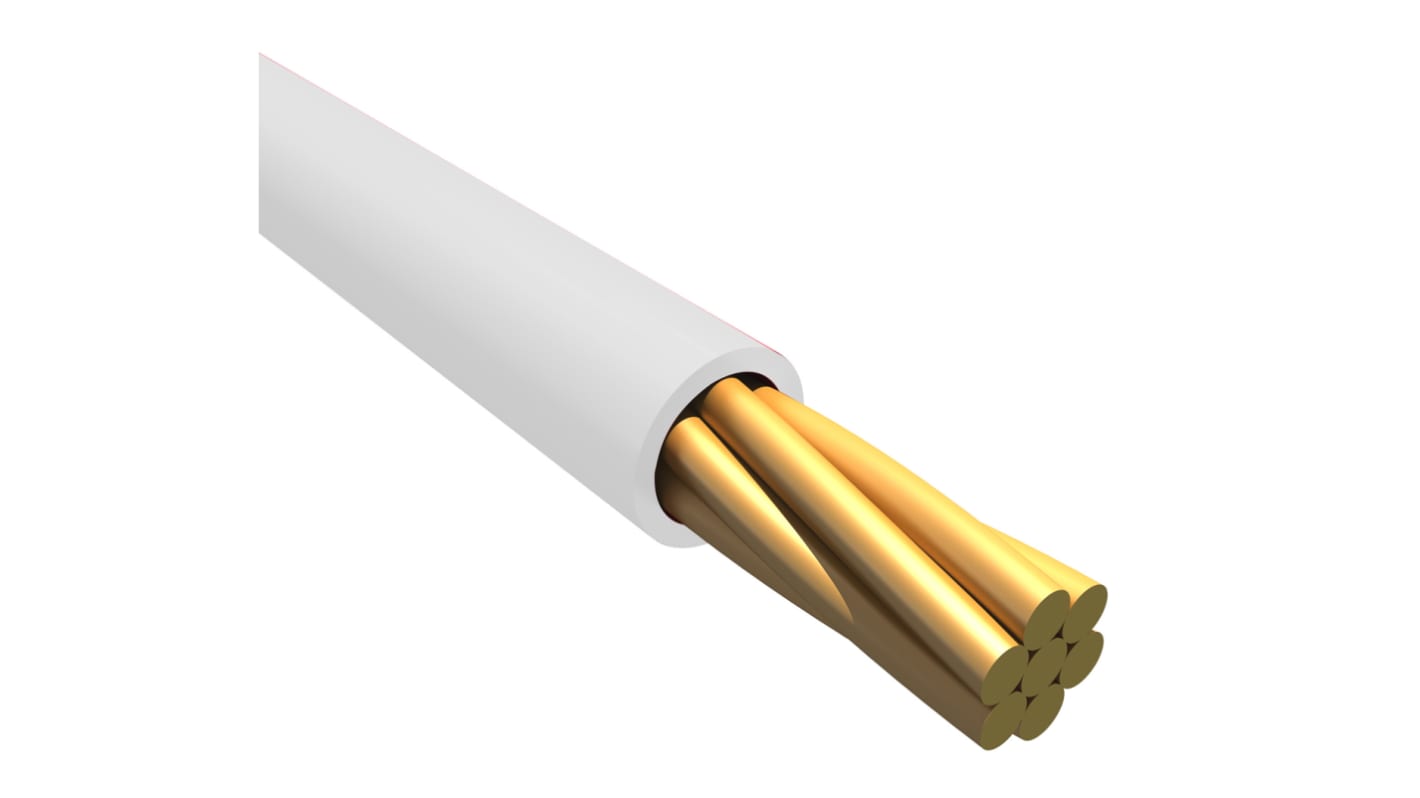

Alpha Wire Hook-up Wire PVC Series White 0.75 mm² Hook Up Wire, 18 AWG, 1/0.81 mm, 30m, PVC Insulation, 1565 WH005

RS-artikelnummer:: 842-5892
Distrelec artikelnummer:: 301-48-333
Tillv. art.nr:: 1565 WH005
Tillverkare / varumärke:: Alpha Wire

Alpha Wire Hook-up Wire PVC Series White 0.75 mm² Hook Up Wire, 18 AWG, 1/0.81 mm, 30m, PVC Insulation, 1565 WH005

Antal (1 rulle med 30 meter)*

593,53 kr

(exkl. moms)

741,91 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 5 enhet(er) från den 22 december 2025
Dessutom levereras 1 enhet(er) från den 22 december 2025
Dessutom levereras 10 enhet(er) från den 23 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	593,53 kr	19,784 kr

*vägledande pris

RS-artikelnummer:: 842-5892
Distrelec artikelnummer:: 301-48-333
Tillv. art.nr:: 1565 WH005
Tillverkare / varumärke:: Alpha Wire

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Alpha Wire
	Cross Sectional Area	0.75 mm²
	Sheath Colour	White
	American Wire Gauge	18 AWG
	Cable Shape	Wire/Single Core
	Core Strands	1/0.81 mm
	Length	30m
	Insulation Material	PVC
	Outer Diameter	1.83mm
	Voltage Rating	1 kV
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-40°C
	Conductor Material	Copper
	Wire Style	MIL-W-76
	Standards Met	Military MIL-W-76B TYPE MW
	Series	Hook-up Wire PVC
	Insulation Wall Thickness	0.4mm
	Number of Strands	1
	Size of Strands	0.81 mm

	Välj alla
	Brand Alpha Wire
	Cross Sectional Area 0.75 mm²
	Sheath Colour White
	American Wire Gauge 18 AWG
	Cable Shape Wire/Single Core
	Core Strands 1/0.81 mm
	Length 30m
	Insulation Material PVC
	Outer Diameter 1.83mm
	Voltage Rating 1 kV
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -40°C
	Conductor Material Copper
	Wire Style MIL-W-76
	Standards Met Military MIL-W-76B TYPE MW
	Series Hook-up Wire PVC
	Insulation Wall Thickness 0.4mm
	Number of Strands 1
	Size of Strands 0.81 mm

RoHS-status: Undantagen

Alpha Wire 1000 V, PVC Hook-Up Wire – MIL-W-76 B Type MW

Alpha Wires 1000 V PVC hook-up wire is a tough, high-performing wire which can be used in the electronics industry and can also be used in military applications. This hook-up wire has been made from quality PVC and is available in an assortment of colours for easy circuit identification.

Features and Benefits

Temperature range: -40°C to +80°C
Excellent uniformity and low-fray design for easy-handling, stripping and termination
Stranded or solid tinned copper conductor
PVC insulation
Mil-spec compliance: MIL-W-76 B Type MW
Colour-coded insulation for easy circuit identification
Good abrasion resistance
Excellent flame resistance

What is Mil-spec?

Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. Suitable for demanding electronic military applications. Military hook-up wire is expected to work under extreme conditions such as, temperature, shock and exposure to chemicals.

Product Application Information

Control cabinets in protected environments
Machine tool on the factory floor
High temperature oven
Off-road construction equipment
Transformers
Switchboard
Military

Standards

CA Prop 65, RoHS
