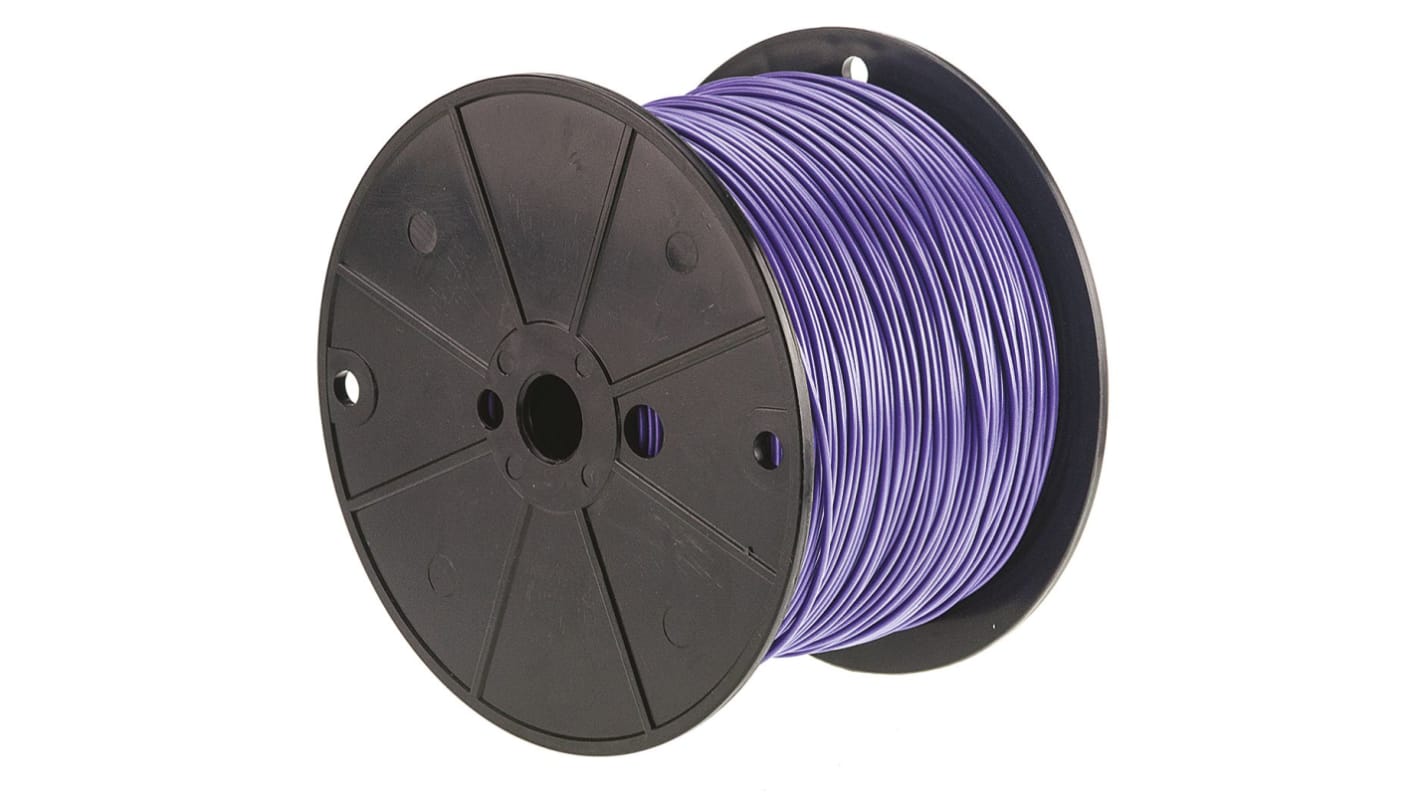

Alpha Wire Hook-up Wire PVC Series Purple 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation, 3055 VI001

RS-artikelnummer:: 124-2716
Distrelec artikelnummer:: 303-02-271
Tillv. art.nr:: 3055 VI001
Tillverkare / varumärke:: Alpha Wire

Alpha Wire Hook-up Wire PVC Series Purple 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation, 3055 VI001

Antal (1 rulle med 304 meter)*

1 491,37 kr

(exkl. moms)

1 864,21 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

3 enhet(er) levereras från den 24 februari 2026
Dessutom levereras 4 enhet(er) från den 03 mars 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	1 491,37 kr	4,906 kr

*vägledande pris

RS-artikelnummer:: 124-2716
Distrelec artikelnummer:: 303-02-271
Tillv. art.nr:: 3055 VI001
Tillverkare / varumärke:: Alpha Wire

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Alpha Wire
	Cross Sectional Area	0.81 mm²
	Sheath Colour	Purple
	American Wire Gauge	18 AWG
	Cable Shape	Single Core
	Core Strands	16/0.25 mm
	Length	305m
	Insulation Material	PVC
	Voltage Rating	300 V
	Outer Diameter	2.01mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C
	Conductor Material	Copper
	Standards Met	UL Listed
	Wire Style	UL1007
	Fire Behaviour	Flame Retardant
	Series	Hook-up Wire PVC
	Insulation Wall Thickness	0.4mm
	Number of Strands	16
	Size of Strands	0.25 mm

	Välj alla
	Brand Alpha Wire
	Cross Sectional Area 0.81 mm²
	Sheath Colour Purple
	American Wire Gauge 18 AWG
	Cable Shape Single Core
	Core Strands 16/0.25 mm
	Length 305m
	Insulation Material PVC
	Voltage Rating 300 V
	Outer Diameter 2.01mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C
	Conductor Material Copper
	Standards Met UL Listed
	Wire Style UL1007
	Fire Behaviour Flame Retardant
	Series Hook-up Wire PVC
	Insulation Wall Thickness 0.4mm
	Number of Strands 16
	Size of Strands 0.25 mm

Belden Alpha Wire Hook Up Wire, 300 V, PVC

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

Features and Benefits:

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Applications:

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
