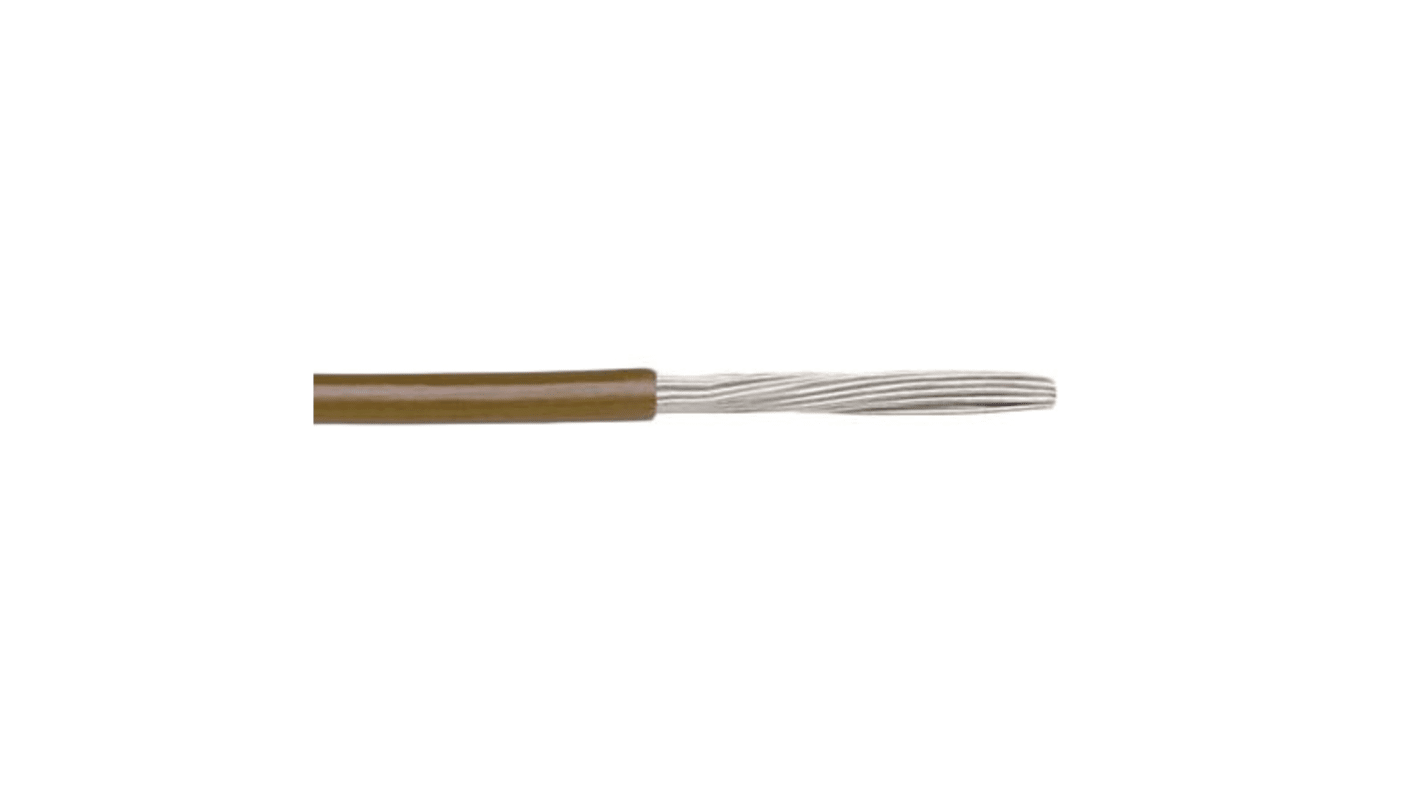

Alpha Wire Hook-up Wire PVC Series Brown 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation, 3055 BR001
- RS-artikelnummer:
- 124-2659
- Distrelec artikelnummer:
- 301-51-249
- Tillv. art.nr:
- 3055 BR001
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 304 meter)*
1 501,41 kr
(exkl. moms)
1 876,76 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 8 enhet(er) är redo att levereras
- Plus 12 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 1 501,41 kr | 4,939 kr |
*vägledande pris
- RS-artikelnummer:
- 124-2659
- Distrelec artikelnummer:
- 301-51-249
- Tillv. art.nr:
- 3055 BR001
- Tillverkare / varumärke:
- Alpha Wire
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.81 mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 18 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 16/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Outer Diameter | 2.01mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Cable Type | High Temperature | |
| Fire Behaviour | Flame Retardant | |
| Tri-rated | No | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Hook Up Wire Type | High Temperature | |
| Shield Type | Unshielded | |
| Number of Strands | 16 | |
| Size of Strands | 0.25 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.81 mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 18 AWG | ||
Cable Shape Single Core | ||
Core Strands 16/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Outer Diameter 2.01mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Cable Type High Temperature | ||
Fire Behaviour Flame Retardant | ||
Tri-rated No | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Hook Up Wire Type High Temperature | ||
Shield Type Unshielded | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Belden Hook-up Wire PVC Series Hookup Wire, 0.81mm² Cross Sectional Area, 300V Voltage Rating - 3055 BR001
This hook-up wire is designed for high-temperature applications, featuring robust PVC insulation. With a cross-sectional area of 0.81 mm² and a length of 305m, it provides optimal performance for various electrical projects. The unshielded electrical wire is suitable for use in a range of environments, supported by its excellent resistance properties and flame-retardant capabilities.
Features & Benefits
• High temperature tolerance from -40°C to +105°C
• Resistant to chemicals, oils, and solvents
• Tinned copper construction ensures corrosion resistance
• Flame retardant for improved safety in installations
• Meets stringent UL standards for electrical reliability
• Lightweight design facilitates easier handling and installation
• Resistant to chemicals, oils, and solvents
• Tinned copper construction ensures corrosion resistance
• Flame retardant for improved safety in installations
• Meets stringent UL standards for electrical reliability
• Lightweight design facilitates easier handling and installation
Applications
• Used for internal wiring in electronic devices
• Suitable for connecting components in automation systems
• Ideal for use in electrical and mechanical industries
• Employed in situations requiring resilient and high-temperature wiring
• Utilised in environments where exposure to harsh chemicals is likely
• Suitable for connecting components in automation systems
• Ideal for use in electrical and mechanical industries
• Employed in situations requiring resilient and high-temperature wiring
• Utilised in environments where exposure to harsh chemicals is likely
What is the maximum voltage this wire can safely handle?
This wire is rated for a maximum voltage of 300V, making it suitable for a variety of electrical applications.
How does the insulation material contribute to the wire's performance?
The PVC insulation provides excellent durability and resistance to environmental factors, ensuring consistent performance in demanding conditions.
What is the significance of the tinned copper construction?
Tinned copper enhances corrosion resistance, ensuring longevity and reliability, especially in harsh working environments.
What lengths are available for purchase?
The wire is available in a standard length of 305m, allowing flexibility for various projects without the need for frequent replacements.
