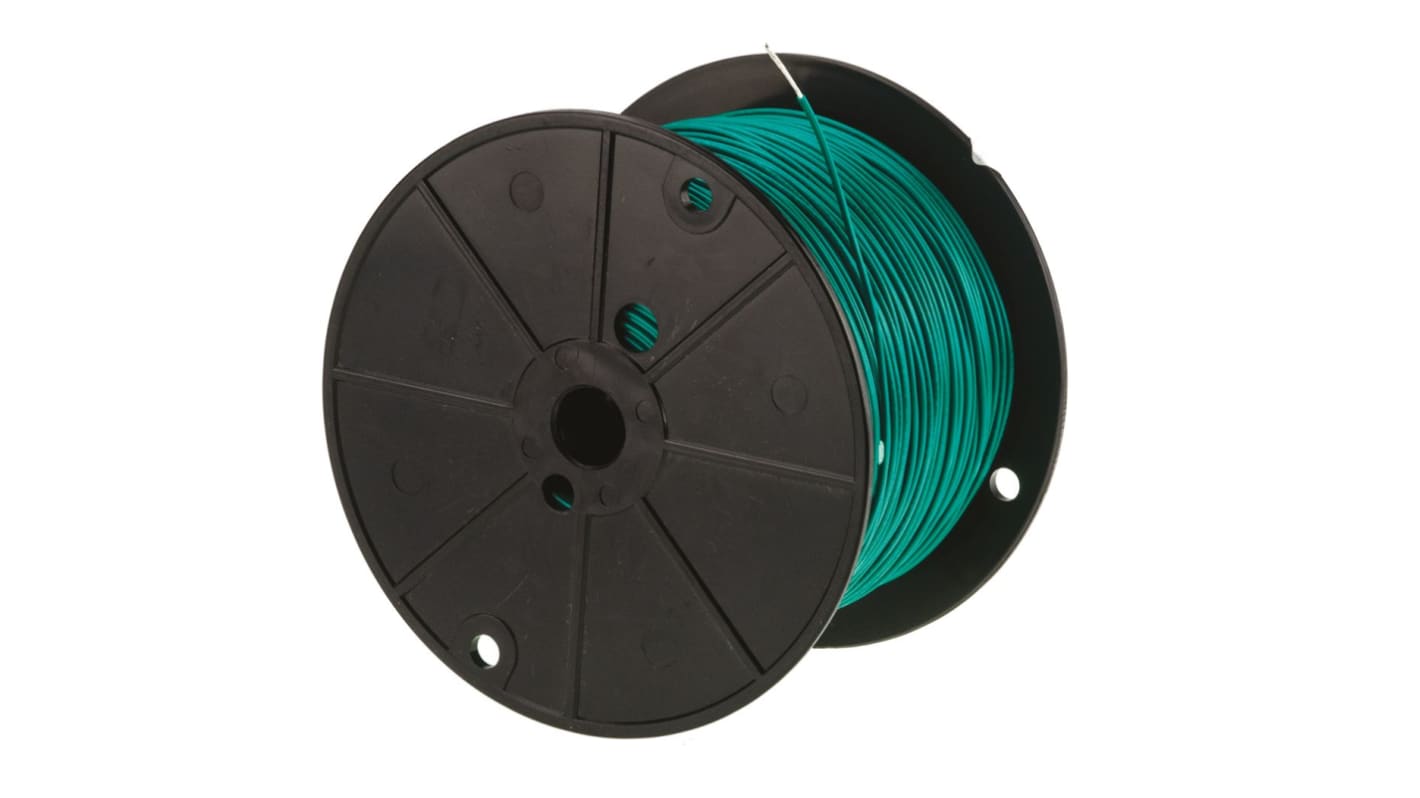

Alpha Wire Hook-up Wire PVC Series Green 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation, 3055 GR001
- RS-artikelnummer:
- 124-2592
- Distrelec artikelnummer:
- 303-02-267
- Tillv. art.nr:
- 3055 GR001
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 304 meter)*
1 501,41 kr
(exkl. moms)
1 876,76 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 3 enhet(er) från den 22 december 2025
- Dessutom levereras 8 enhet(er) från den 23 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 1 501,41 kr | 4,939 kr |
*vägledande pris
- RS-artikelnummer:
- 124-2592
- Distrelec artikelnummer:
- 303-02-267
- Tillv. art.nr:
- 3055 GR001
- Tillverkare / varumärke:
- Alpha Wire
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.81 mm² | |
| Sheath Colour | Green | |
| Cable Shape | Single Core | |
| American Wire Gauge | 18 AWG | |
| Core Strands | 16/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 2.01mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.016in | |
| Number of Strands | 16 | |
| Size of Strands | 0.25 mm | |
| Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.81 mm² | ||
Sheath Colour Green | ||
Cable Shape Single Core | ||
American Wire Gauge 18 AWG | ||
Core Strands 16/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 2.01mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.016in | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
RoHS-status: Undantagen
Belden Hook-up Wire PVC Series Hookup Wire, 0.81mm² Cross Sectional Area, 2.01mm Outer Diameter - 3055 GR001
This hookup wire is a versatile, single core wire designed for various electrical applications. Constructed from tinned copper, this 18 AWG wire features robust PVC insulation in green, ensuring durability and reliability. With a length of 305 m, it is suitable for extensive wiring tasks, from automation systems to general electrical projects.
Features & Benefits
• High-temperature range from -40°C to +105°C ensures performance in extreme conditions
• Flame retardant properties enhance safety in electrical installations
• The PVC insulated wire provides excellent electrical insulation and protection
• Tinned copper wire resists corrosion for long-lasting conductivity
• UL1007 wire certification confirms compliance with safety standards
• Outer diameter of 2.01 mm ensures compatibility with various connectors
• Flame retardant properties enhance safety in electrical installations
• The PVC insulated wire provides excellent electrical insulation and protection
• Tinned copper wire resists corrosion for long-lasting conductivity
• UL1007 wire certification confirms compliance with safety standards
• Outer diameter of 2.01 mm ensures compatibility with various connectors
Applications
• Used in automation and control systems
• Ideal for internal wiring in electrical panels
• Employed in hobbyist electronics projects
• Suitable for wiring in low-voltage lighting installations
• Ideal for internal wiring in electrical panels
• Employed in hobbyist electronics projects
• Suitable for wiring in low-voltage lighting installations
What properties ensure safety when using this wire in electrical installations?
This wire is flame retardant, which significantly reduces fire hazards in electrical applications. The PVC insulation also provides excellent insulation against electrical shocks.
Is this wire suitable for outdoor use?
While it can withstand high temperatures, it is advisable to use this wire in dry conditions, as exposure to moisture may compromise its performance unless appropriately protected.
How can this wire be best manipulated for installation?
The wire requires a minimum bend radius of 10 times its diameter to prevent damaging the insulation, ensuring longevity and performance.
What are the implications of using tinned copper as a conductor material?
Tinned copper effectively resists oxidation, thus improving overall conductivity and reducing maintenance needs over time, especially in humid environments.
