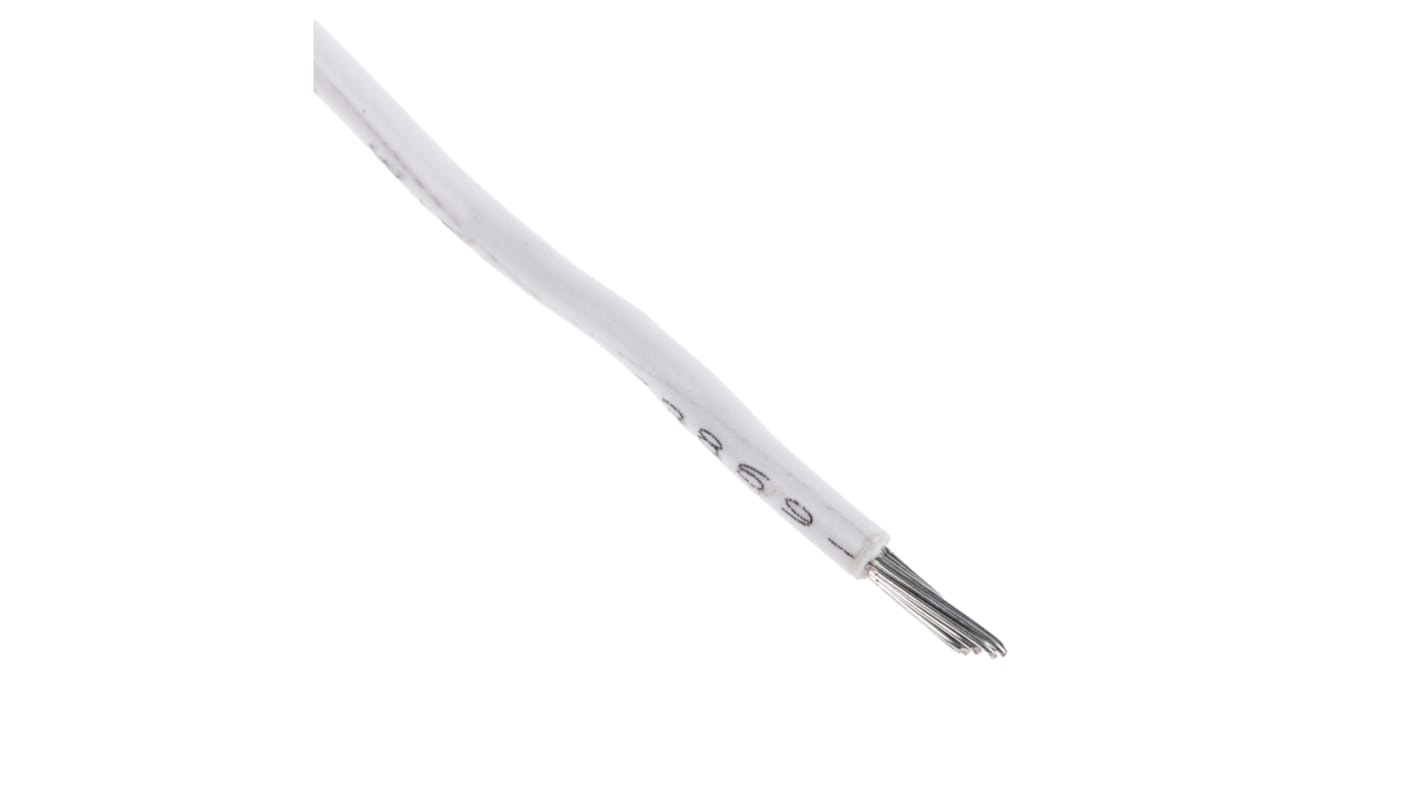

Alpha Wire Hook-up Wire PVC Series White 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation
- RS-artikelnummer:
- 124-2558
- Tillv. art.nr:
- 3055 WH001
- Tillverkare / varumärke:
- Alpha Wire
Tillfälligt slut i lager – restorder för leverans 2024-05-08
Lagt till varukorgen
Pris (ex. moms) 1 rulle med 304 meter
1 188,85 kr
(exkl. moms)
1 486,06 kr
(inkl. moms)
Rulle(ar) | Per Reel | Per Metre* |
1 - 4 | 1 188,85 kr | 3,911 kr |
5 - 9 | 1 135,24 kr | 3,734 kr |
10 + | 1 081,86 kr | 3,559 kr |
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer
- 124-2564
Pris (ex. moms) 1 rulle med 304 meter
1 188,85 kr
(exkl. moms)
1 486,06 kr
(inkl. moms)
- RS-artikelnummer
- 124-2586
Pris (ex. moms) 1 rulle med 304 meter
1 188,85 kr
(exkl. moms)
1 486,06 kr
(inkl. moms)
- RS-artikelnummer
- 124-2716
Pris (ex. moms) 1 rulle med 304 meter
1 188,85 kr
(exkl. moms)
1 486,06 kr
(inkl. moms)
- RS-artikelnummer:
- 124-2558
- Tillv. art.nr:
- 3055 WH001
- Tillverkare / varumärke:
- Alpha Wire
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer
Belden Alpha Wire Hook Up Wire, 300 V, PVC
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.
Features and Benefits:
• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
• Colour-coded insulation for easy circuit identification
• Easy to handle, strip and terminate
• PVC insulation
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
• Colour-coded insulation for easy circuit identification
• Easy to handle, strip and terminate
• PVC insulation
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Applications:
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wires FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Belden Alpha Wire Hook-Up Wire, 16 Strands, 305m Length - Premium Series - 3055 WH001
This hook-up wire from Belden Alpha Wire is ideal for use with low-voltage electrical equipment both at home and in light industrial environments. It has a tinned-copper conductor that's corrosion-resistant, ensuring your devices will work reliably even in damp conditions. The cable's PVC sheathing insulates the core and offers protection against impact damage for long-lasting performance.
Features & Benefits
• White colour-coded sheathing makes circuit identification easy
• Operating temperature range of -40°C to +105°C for use in extreme temperatures
• Supplied in 305m spool to cut and use in multiple applications
• Operating temperature range of -40°C to +105°C for use in extreme temperatures
• Supplied in 305m spool to cut and use in multiple applications
Applications
• Circuit boards
• Plugs and sockets
• Automotive industry
• Plugs and sockets
• Automotive industry
Can I bend this wire without damaging it?
Yes, this wire is unshielded and its core is made of 16 strands, so it's a flexible option. You can use it in complex setups or install it around corners without risking damage or loss of performance.
Specifikationer
Attribute | Value |
---|---|
Cross Sectional Area | 0.81 mm² |
Sheath Colour | White |
Cable Shape | Single Core |
American Wire Gauge | 18 AWG |
Core Strands | 16/0.25 mm |
Length | 305m |
Insulation Material | PVC |
Voltage Rating | 300 V |
Outer Diameter | 2.01mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
Conductor Material | Tinned Copper |
Wire Style | UL1007 |
Standards Met | UL Listed |
Fire Behaviour | Flame Retardant |
Series | Hook-up Wire PVC |
Shield Type | Unshielded |
Insulation Wall Thickness | 0.4mm |
Number of Strands | 16 |
Resistant To | Chemicals, Oils, Solvents |
Size of Strands | 0.25 mm |
