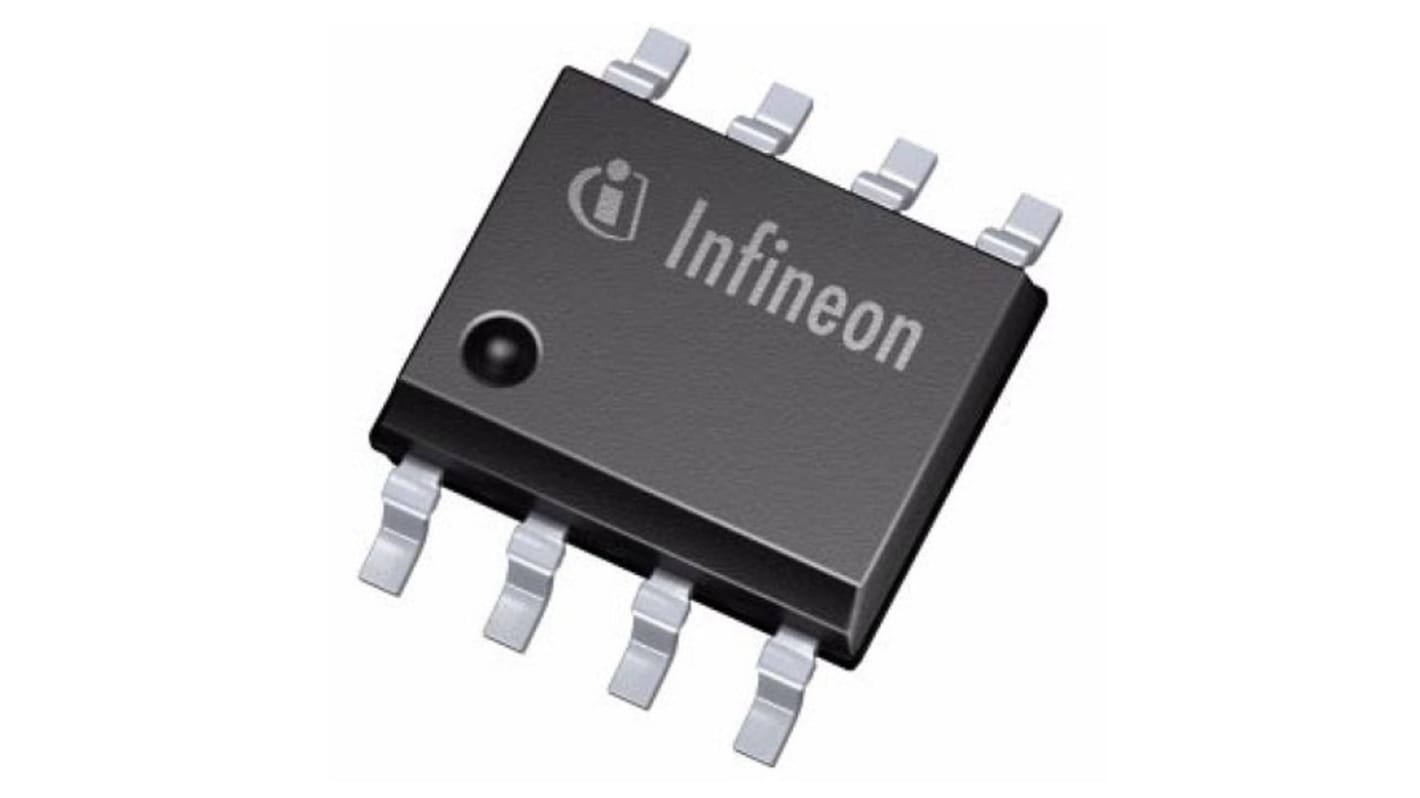

Infineon SMD/SMT Hall Effect Sensor, Analogue Output, 4.5-5.5 V, Rectangular Body, 5.5V

This Hall Effect Sensor is an analogue device designed for precise magnetic field detection. With a compact rectangular body measuring only 5 x 3.9 x 1.2 mm, it is suitable for SMD/SMT applications in various industries. Built to operate within a supply voltage of 4.5 to 5.5V, it supports both high accuracy and durability in automotive and industrial contexts.

• Integrated dual programmable sensors provide versatile functionalities
• Reverse polarity protection safeguards against incorrect wiring
• Short circuit protection enhances device longevity under fault conditions
• Wide operating temperature range supports diverse environmental conditions
• Configurable magnetic range supports specific application requirements

• Ideal for precise angle and position detection in automotive systems
• Utilised in automation systems requiring robust sensing solutions
• Applicable for the replacement of potentiometers under demanding conditions
• Suitable for in industrial controls, including steering torque sensing

Digital signal processing provides enhanced stability in the output, mitigating the effects of temperature fluctuations and ensuring consistent performance over time.

A temperature range of -40°C to +125°C allows for reliable operation even in extreme conditions, making it suitable for use in various harsh environmental applications.

The analogue output is designed to be compatible with standard A/D conversion processes, facilitating integration into various electronic systems without the need for complex modifications.

Various parameters such as magnetic sensitivity, gain, and bandwidth can be configured via EEPROM, allowing users to tailor performance to specific applications and improve functionality.
