- RS-artikelnummer:
- 190-2634
- Tillv. art.nr:
- 973053101
- Tillverkare / varumärke:
- Hirschmann Test & Measurement
Tillfälligt slut i lager – restorder för leverans 2024-06-28
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 100)
69,683 kr
(exkl. moms)
87,104 kr
(inkl. moms)
Enheter | Per unit | Per Box* |
100 + | 69,683 kr | 6 968,30 kr |
- RS-artikelnummer:
- 190-2634
- Tillv. art.nr:
- 973053101
- Tillverkare / varumärke:
- Hirschmann Test & Measurement
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer

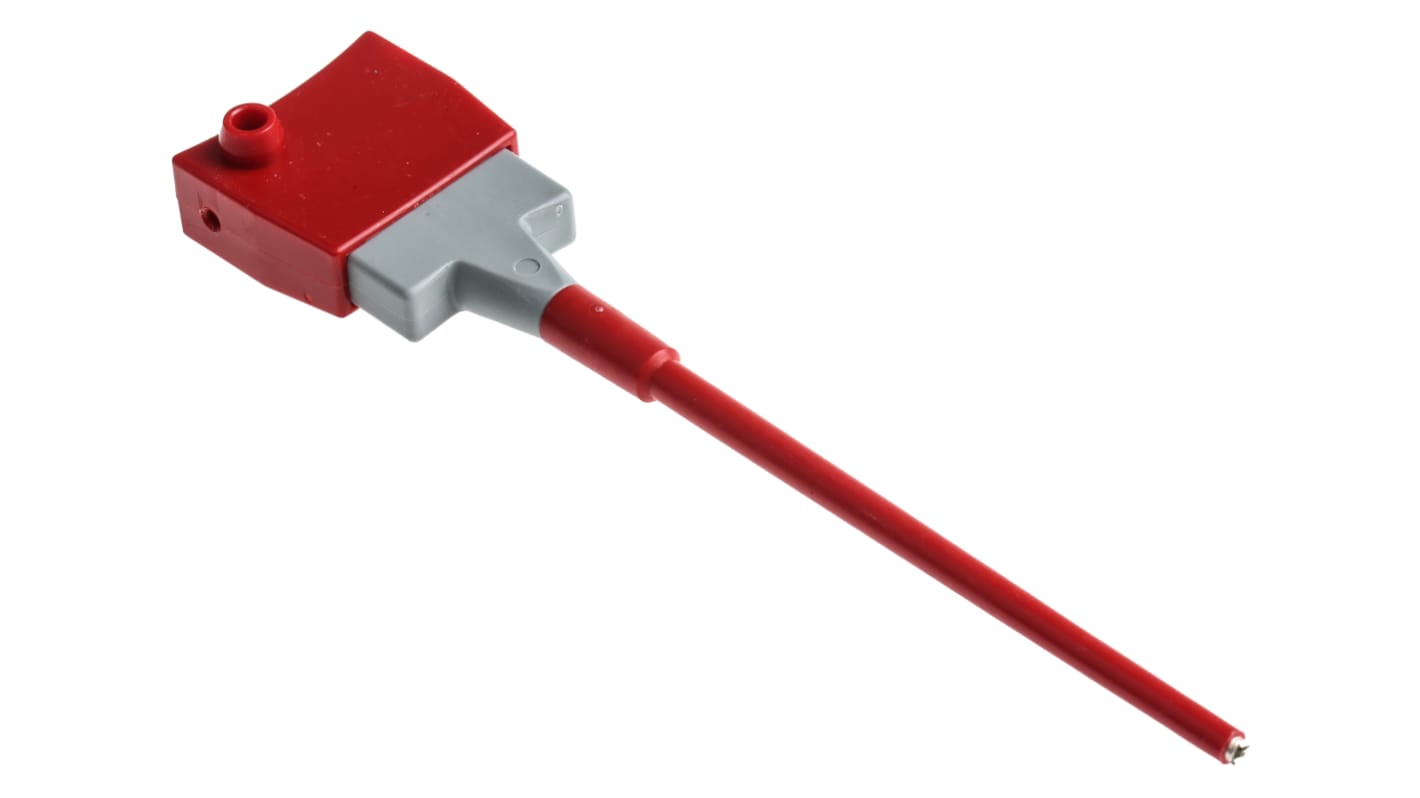

KLEPS 60 4 mm safety clamp test probe
Terminal connector: Ø 4 mm, total length: 148 mm, clamping range: Ø 4 mm, jaw opening: 3.5 mm
Clamp-type test probe with grip jaws and flexible shaft.
The special shape of the grip jaws allows pins and wires up to a maximum Ø 4 mm to be clamped without slipping.
The Ø 4 mm socket connector means that sprung Ø 4 mm plugs are can be connected.
The additional screw connection means that plugs and cables up to a maximum Ø 2 mm can be connected.
Socket material: brass; grip jaws also nickel-plated.
Clamp-type test probe with grip jaws and flexible shaft.
The special shape of the grip jaws allows pins and wires up to a maximum Ø 4 mm to be clamped without slipping.
The Ø 4 mm socket connector means that sprung Ø 4 mm plugs are can be connected.
The additional screw connection means that plugs and cables up to a maximum Ø 2 mm can be connected.
Socket material: brass; grip jaws also nickel-plated.
Specifikationer
Attribute | Value |
---|---|
Product Type | Grabber Clip |
Tip Type | Pincers |
Colour | Red |
Current Rating | 4A |
Voltage Rating | 60V dc |
Contact Material | Steel |
Tip Size | 4mm |
Probe Socket Size | 4mm |
Length | 148mm |
