RF Solutions GP-01 GPS Module -148 dBm 1 Hz
- RS-artikelnummer:
- 274-2168
- Tillv. art.nr:
- GP-01
- Tillverkare / varumärke:
- RF Solutions
Mängdrabatt möjlig
Antal (1 enhet)*
101,17 kr
(exkl. moms)
126,46 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 06 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 101,17 kr |
| 10 - 24 | 96,10 kr |
| 25 - 49 | 91,50 kr |
| 50 - 99 | 86,91 kr |
| 100 + | 82,54 kr |
*vägledande pris
- RS-artikelnummer:
- 274-2168
- Tillv. art.nr:
- GP-01
- Tillverkare / varumärke:
- RF Solutions
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RF Solutions | |
| Product Type | GPS Module | |
| Number of Channels | 24 | |
| Acquisition Sensitivity | -148dBm | |
| Tracking Sensitivity | -162dBm | |
| Frequency | 1Hz | |
| Interface Type | UART | |
| Length | 16.2mm | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Time to First Fix - Cold Start | 32s | |
| Maximum Operating Temperature | 85°C | |
| Series | GP-01 | |
| Standards/Approvals | RoHS | |
| Width | 12.2 mm | |
| Välj alla | ||
|---|---|---|
Brand RF Solutions | ||
Product Type GPS Module | ||
Number of Channels 24 | ||
Acquisition Sensitivity -148dBm | ||
Tracking Sensitivity -162dBm | ||
Frequency 1Hz | ||
Interface Type UART | ||
Length 16.2mm | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Time to First Fix - Cold Start 32s | ||
Maximum Operating Temperature 85°C | ||
Series GP-01 | ||
Standards/Approvals RoHS | ||
Width 12.2 mm | ||
- COO (Country of Origin):
- CN

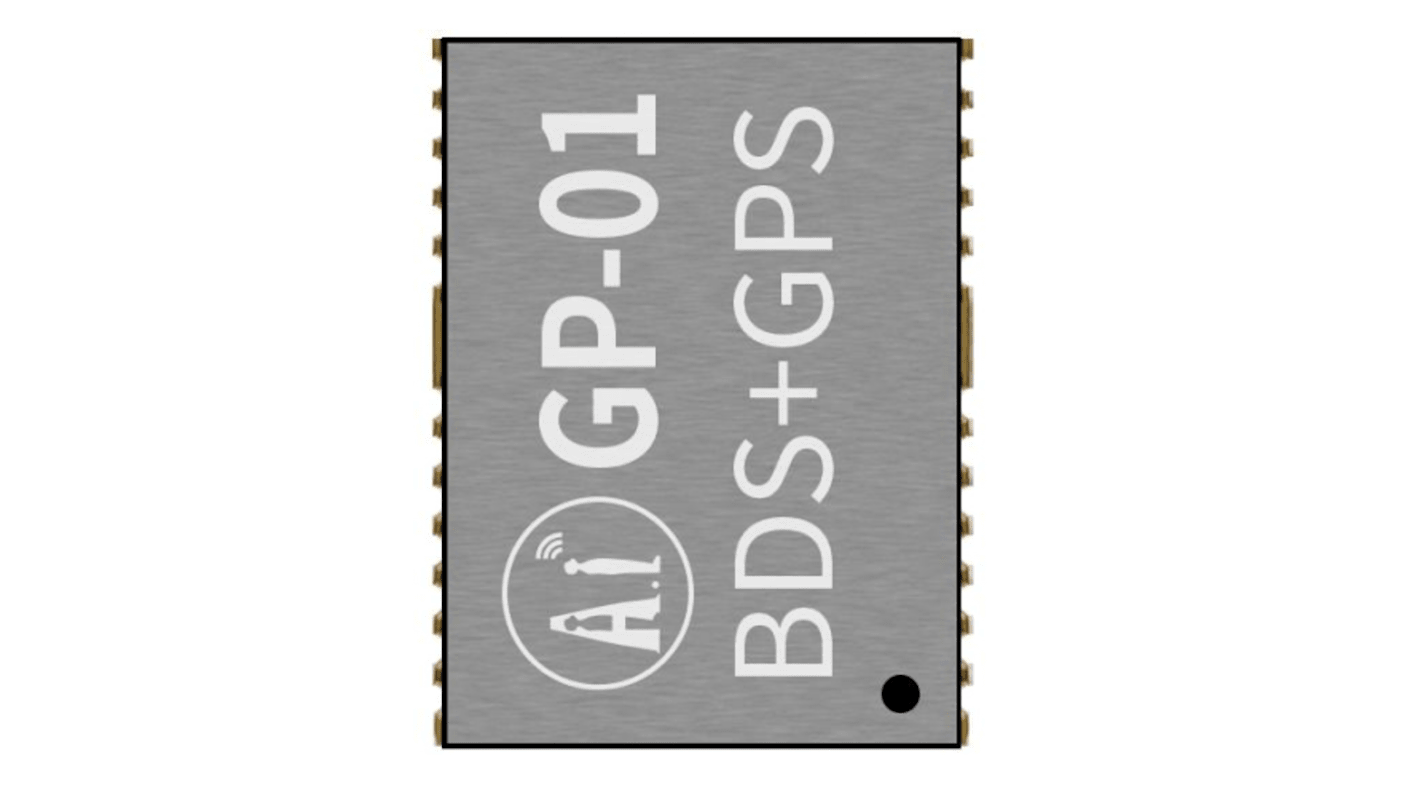

The RF Solutions GPS receiver module is a high performance BDS and GNSS multi mode satellite navigation receiver SOC module. This module integrates RF front end, digital baseband processor, 32 bit RISC CPU, power management and active antenna detection and protection functions. Support a variety of satellite navigation systems.
RoHS compliant
Total 24 interfaces
Short circuit current protection
32.768 kHz RTC crystal frequency
