- RS-artikelnummer:
- 280-0852
- Tillv. art.nr:
- PC 125/35 LT ENCLOSURE
- Tillverkare / varumärke:
- Fibox
1848 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
254,48 kr
(exkl. moms)
318,10 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 254,48 kr |
10 - 14 | 244,06 kr |
15 + | 233,65 kr |
- RS-artikelnummer:
- 280-0852
- Tillv. art.nr:
- PC 125/35 LT ENCLOSURE
- Tillverkare / varumärke:
- Fibox
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FI
Produktdetaljer

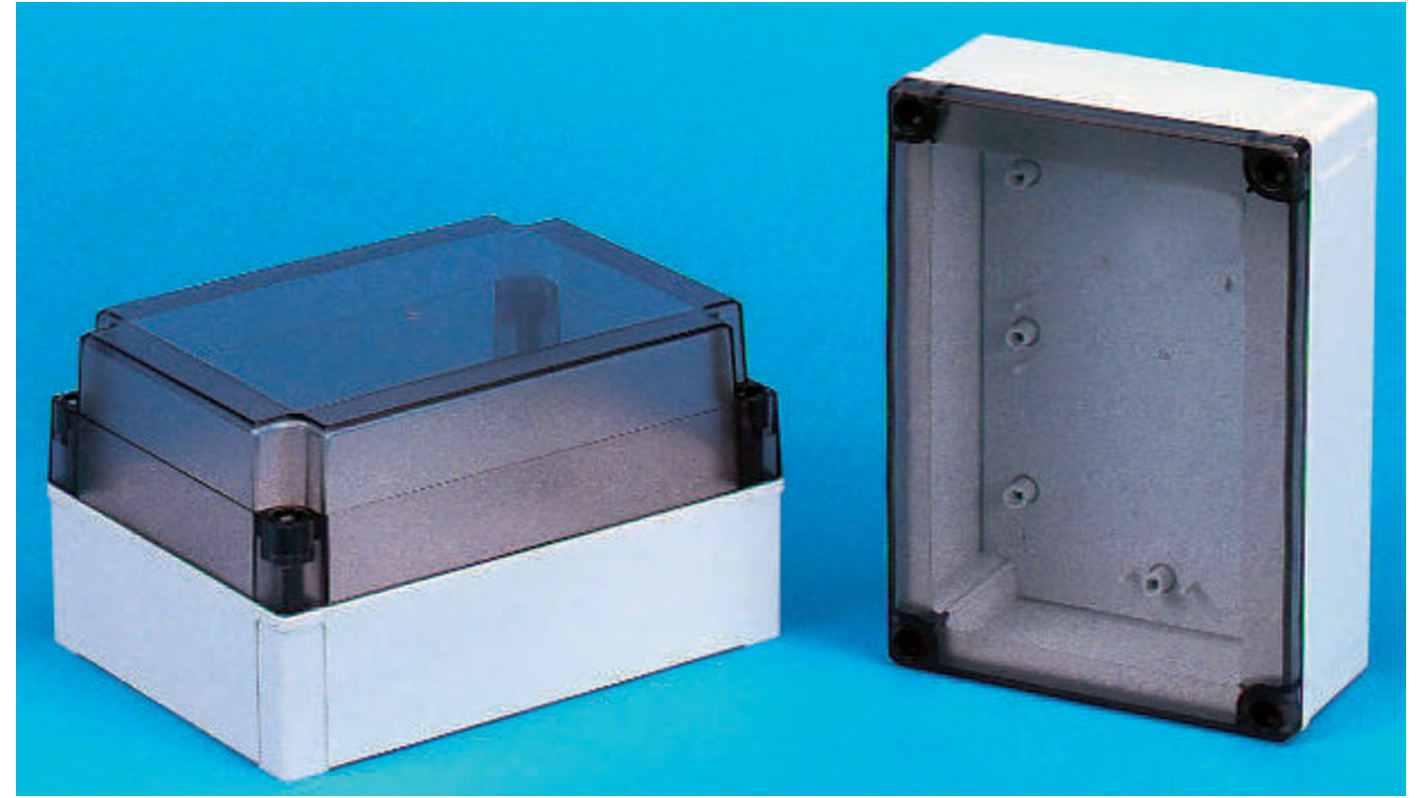

MNX Enclosures
MNX Enclosures are light grey (RAL 7035), with a flammability rating of UL94-V2. Termperature range of the enclosure material is -40 → +120 °C, (+80 °C for continuous use).
Enclosures for housing electronic systems and components
Unique fixing pod arrangements allow three separate mounting options, including ready moulded guides for quick installation of PCBs
Lid centre recessed for mounting membrane keypads
Good chemical resistance
IP67 rating
Choice of Light Grey or Smoked Transparent lids
Chassis plates and mounting brackets available separately
Unique fixing pod arrangements allow three separate mounting options, including ready moulded guides for quick installation of PCBs
Lid centre recessed for mounting membrane keypads
Good chemical resistance
IP67 rating
Choice of Light Grey or Smoked Transparent lids
Chassis plates and mounting brackets available separately
Note
Boxes available in two base heights. Those where the overall height measurement ends in a "5" have a base height of 25mm. All others have a base height of 50mm.
Approvals
NEMA 4, 4X, 12; UL 94-V2 (USA); IP 67; UL 94-V2 (Euro); IEC 529 (Others)
Specifikationer
Attribute | Value |
---|---|
Body Material | Polycarbonate |
External Length | 130 mm |
External Height | 35 mm |
External Width | 130 mm |
External Dimensions | 130 x 130 x 35mm |
IP Rating | IP66, IP67 |
Colour | Grey |
Lid Colour | Smoked Transparent |
Shielded | No |
Series | MNX |
