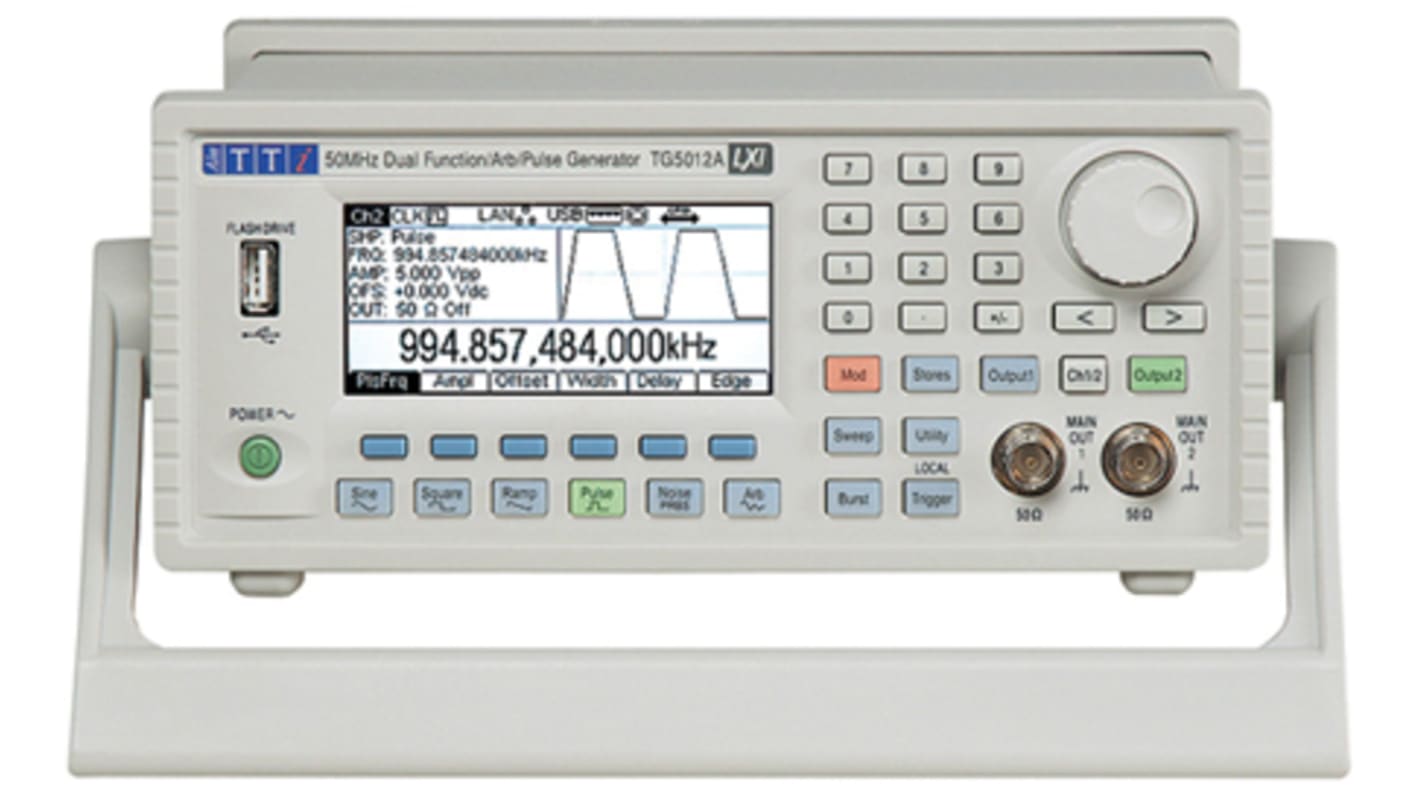

Aim-TTi TG5012A Function Generator, 1μHz Min, 50MHz Max, FM Modulation, Variable Sweep - With RS Calibration

Se alla Function Generators

Antal (1 enhet)*

14 787,16 kr

(exkl. moms)

18 483,95 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 2 enhet(er) är redo att levereras
  • Dessutom levereras 2 enhet(er) från den 30 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +14 787,16 kr

*vägledande pris

RS-artikelnummer:
800-5028
Tillv. art.nr:
TG5012A
Tillverkare / varumärke:
Aim-TTi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Aim-TTi

Maximum Frequency Range Sinewave

50MHz

Calibrated

RSCAL

Maximum Frequency Range Square Pulse and Arbitrary Waveform

10 MHz, 12.5 MHz, 50 MHz

Series

TGxA

Output Impedance

50Ω

Minimum Frequency Range Sinewave

1µHz

Variable Sweep

Yes

Minimum Frequency Range Square Pulse and Arbitrary Waveform

1 μHz, 500 μHz

FM Modulation

Yes

Time Base Accuracy

1ppm

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

1MHz

Minimum Frequency Range Triangle/Saw

1µHz

Internal Linear and Log Sweep

Yes

Internal and External Amplitude Modulation

Yes

Output Amplitude

20V Pk-Pk

Maximum Operating Temperature

+40°C

Input Impedance

5 kΩ

Length

295mm

Minimum Operating Temperature

+5°C

Model Number

TG5012A

Interface Type

LAN, USB

Height

97mm

Frequency Range Square Pulse and Arbitrary Waveform

1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz

Dimensions

295 x 250 x 97mm

Weight

2.7kg

Digital Amplitude and Offset

Yes

Width

250mm

RoHS-status: Inte relevant

COO (Country of Origin):
GB

Aim-TTi Advanced 2 Channel Function/Arbitrary/Pulse Generators TG5012A, TG2512A


The Aim-TTi TG5012A and TG2512A are 2-channel versions of the single channel TG5011A ( 800-3173 ) and TG2511A ( 800-3177 ). All of these instruments share the same features but the 2-channel versions also have multi-channel capabilities including coupling for frequency and/or level, full tracking and defined phase offset. The channels can be used as completely independent generators, representing excellent value for money compared with buying two generators.

Two identical channels - independent or linked with coupled and tracking modes
Selectable coupling of frequency (equal or offset), amplitude/dc offset
Inter-channel phase offset of -360° to +360° with 0.1° resolution
0.001mHz to 50MHz (TG5012A) or 25MHz (TG2512A) range, 14 digits or 1μHz resolution
20mV to 20V pk-pk output from 50Ω, multi function aux. out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic, PRBS
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS
Waveform Manager Plus for Windows software included
Programmable via USB & LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle
