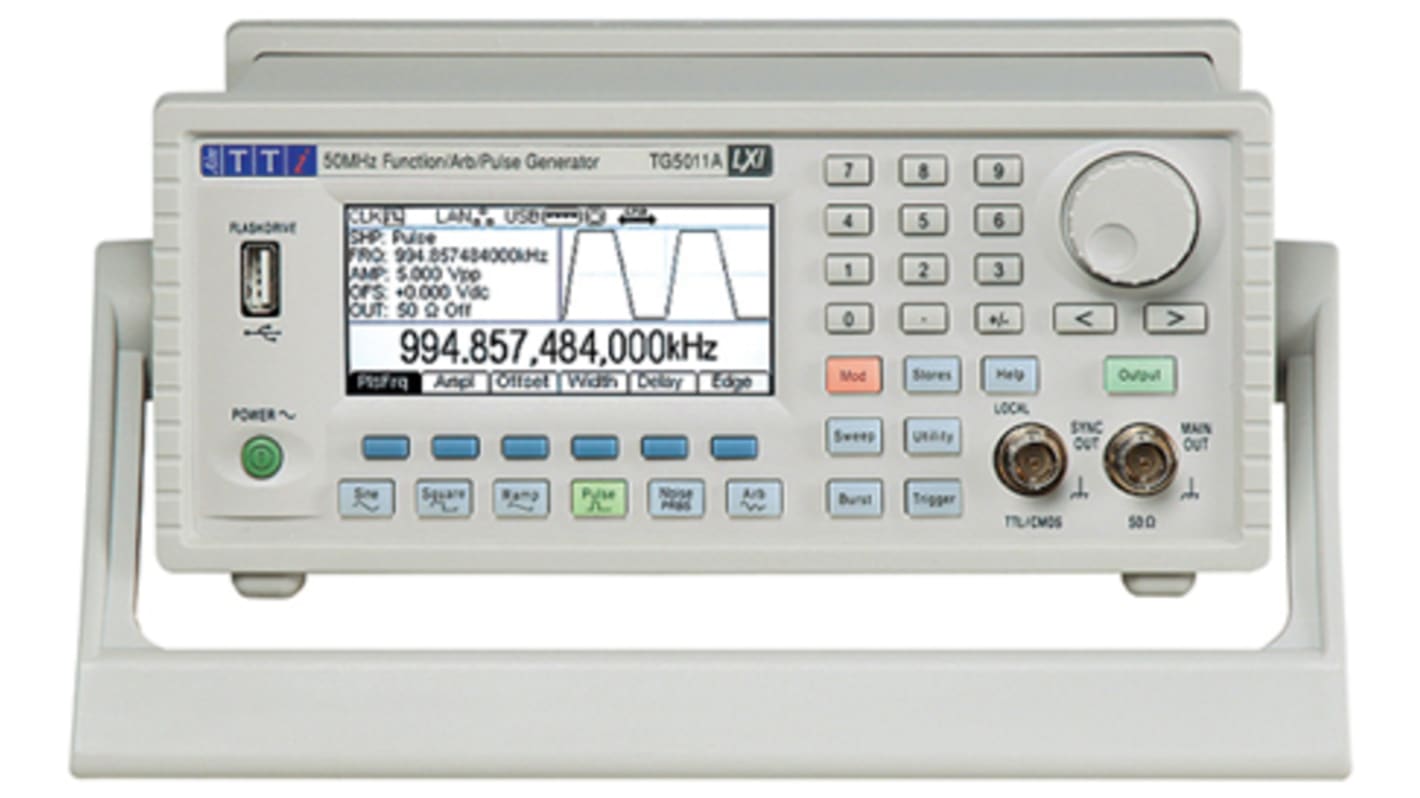

Aim-TTi TG5011A Function Generator, 1μHz Min, 50MHz Max, FM Modulation, Variable Sweep - With RS Calibration
- RS-artikelnummer:
- 800-4940
- Tillv. art.nr:
- TG5011A
- Tillverkare / varumärke:
- Aim-TTi
2 I lager för leverans inom 3-5 arbetsdagar
Nästa dag-leverans inte möjlig
Pris (ex. moms) Varje
11 048,09 kr
(exkl. moms)
13 810,11 kr
(inkl. moms)
Enheter | Per enhet |
---|---|
1 + | 11 048,09 kr |
- RS-artikelnummer:
- 800-4940
- Tillv. art.nr:
- TG5011A
- Tillverkare / varumärke:
- Aim-TTi
RoHS-status: Undantagen
- COO (Country of Origin):
- GB
Aim-TTi Advanced Single Channel Function/Arbitrary/Pulse Generators TG5011A, TG2511A
The Aim-TTi TG5011A and TG2511A are state-of-the-art single channel DDS-based function generators. The 50MHz TG5011A offers high bandwidth and sampling speed, which enables it to significantly outperform many generators in its price range. The 25MHz TG2511A incorporates a similar feature set while offering a still lower cost to users with lower frequency requirements.
0.001mHz to 50MHz (TG5011A) or25MHz (TG2511A) range, 14 digits or 1μHz resolution
20mV to 20V pk-pk output from 50Ω, available over the full frequency range - multi-function aux-out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, PRBS
Waveform Manager Plus for Windows editing software included
Programmable via USB and LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle
20mV to 20V pk-pk output from 50Ω, available over the full frequency range - multi-function aux-out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, PRBS
Waveform Manager Plus for Windows editing software included
Programmable via USB and LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle
Aim-TTi Function Generator, 10 kΩ Input Impedance, 270 x 250 x 97mm - TG5011A
This functional and versatile function generator by AIM & THURLBY THANDAR INSTRUMENTS is a reliable solution. With digital amplitude and offset capabilities, this function generator is a game-changer in the industry. It offers precise and reliable functionality for various applications in automation, electronics, electrical, and mechanical industries without compromising on performance.
Features & Benefits
• Offers a wide frequency range from 1 μHz to 50 MHz
• Internal and external modulation options for AM, FM, PM, PWM
• RS232 interface for seamless connectivity
• Variable sweep feature for flexible waveform generation
• TTL output level of 3V for compatible integration
• Lightweight and compact design for easy portability
• Internal and external modulation options for AM, FM, PM, PWM
• RS232 interface for seamless connectivity
• Variable sweep feature for flexible waveform generation
• TTL output level of 3V for compatible integration
• Lightweight and compact design for easy portability
Applications
• For modulation and signal generation in electronic circuits
• Ideal for testing and calibrating electronic equipment
• Suitable for educational purposes in electronics and engineering labs
• Ideal for testing and calibrating electronic equipment
• Suitable for educational purposes in electronics and engineering labs
Can it generate arbitrary waveforms?
Yes, this function generator can produce arbitrary waveforms with up to 128K points at 125MS/s.
Is the TG5011A suitable for frequency modulation?
Yes, It supports AM, FM, and PM modulation for versatile waveform generation.
Will it work with external devices?
Yes, it features an RS232 interface for seamless integration with external devices like PCs or controllers.
Attribute | Value |
---|---|
Series | TGxA |
Model Number | TG5011A |
Calibrated | RSCAL |
Digital Frequency | Yes |
Minimum Frequency Range Sinewave | 1µHz |
Maximum Frequency Range Sinewave | 50MHz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz, 500 μHz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 10 MHz, 12.5 MHz, 50 MHz |
Maximum Frequency Range Triangle/Saw | 1MHz |
Minimum Frequency Range Triangle/Saw | 1µHz |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
Variable Sweep | Yes |
Internal and External Amplitude Modulation | Yes |
FM Modulation | Yes |
Minimum Operating Temperature | -5°C |
Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz |
Interface Type | RS232 |
Dimensions | 270 x 250 x 97mm |
Output Impedance | 50Ω |
Length | 270mm |
Width | 250mm |
Output Amplitude | 20V Pk-Pk |
Maximum Operating Temperature | +40°C |
Weight | 2.6kg |
TTL Output Level | 3V |
Height | 97mm |
Input Impedance | 10 kΩ |
