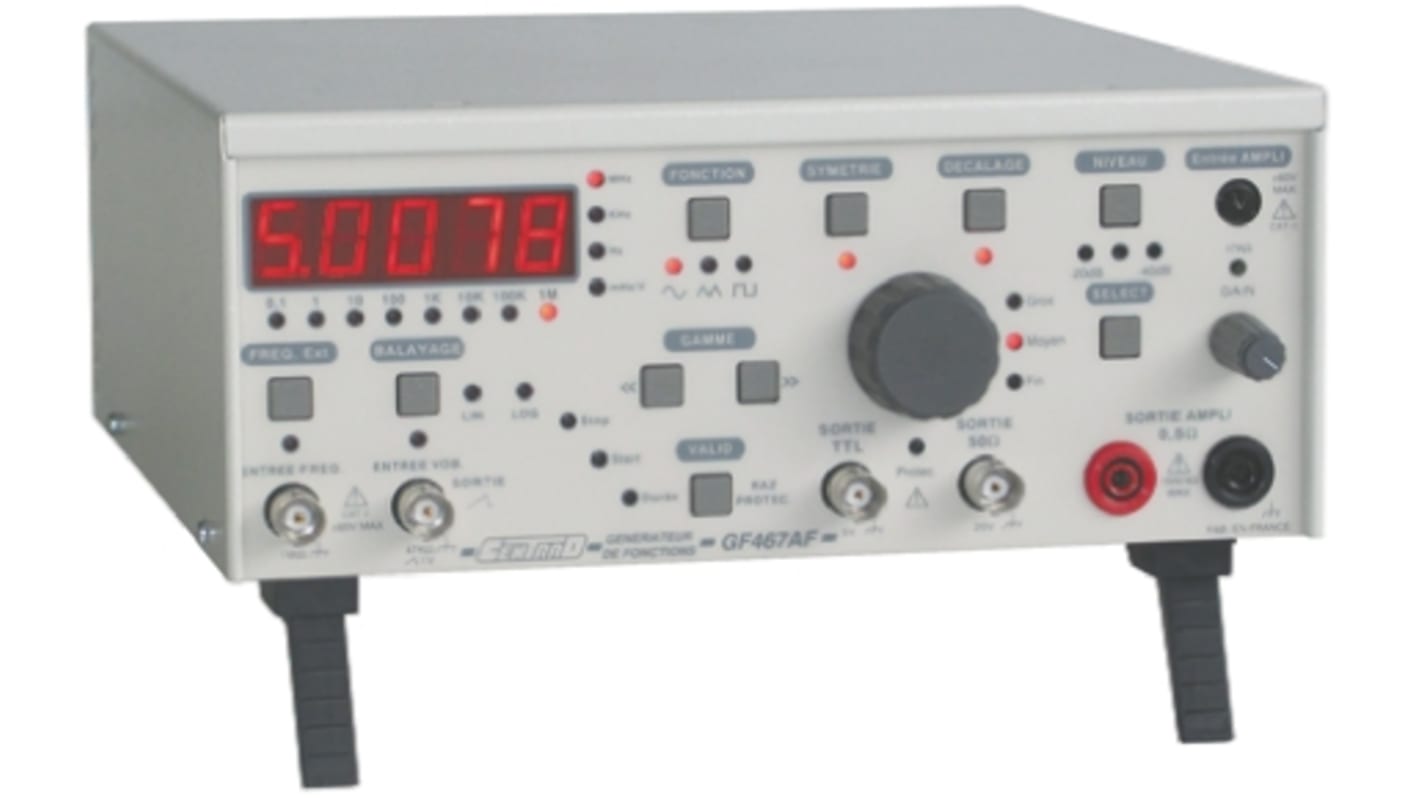

ELC GF467AF Function Generator, 0.01Hz Min, 5MHz Max, FM Modulation, Variable Sweep

Antal (1 enhet)*

5 090,40 kr

(exkl. moms)

6 363,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 3 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +5 090,40 kr

*vägledande pris

RS-artikelnummer:
506-6550
Tillv. art.nr:
GF467AF
Tillverkare / varumärke:
ELC
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

ELC

Maximum Frequency Range Sinewave

5MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

5MHz

Output Impedance

0.5 Ω, 50 Ω

Minimum Frequency Range Sinewave

0.01Hz

Variable Sweep

Yes

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.01 Hz

FM Modulation

Yes

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

5MHz

Minimum Frequency Range Triangle/Saw

0.01Hz

Internal Linear and Log Sweep

Yes

Input Impedance

47 kΩ

Frequency Range Square Pulse and Arbitrary Waveform

0.01 Hz → 5 MHz

Length

218mm

Attenuation

-40 dB, -20 dB, 0 dB

CMOS Output Level

0 → 10V

Maximum Operating Temperature

+40°C

Output Amplitude

20V Pk-Pk

Internal and External Amplitude Modulation

Yes

Minimum Operating Temperature

+5°C

Interface Type

RS232

Height

101mm

Dimensions

218 x 238 x 101mm

Model Number

GF467AF

Weight

2.2kg

Digital Amplitude and Offset

Yes

TTL Output Level

0 → 5V

Width

238mm

COO (Country of Origin):
FR

Function generators 0.01 Hz → 5 MHz, protected, RS232 / GF467F


GF 467F


Function generator 0.01 Hz → 5 MHz.
Display: 5 digits, 14-mm red LED display.
Functions:
Triangle, sine, square, offset, internal linear or logarithmic sweep, external wobulation VCF or FM modulation, AM modulation, CMOS.
Frequency range: 0.01 Hz → 5 MHz in 8 ranges.
Frequency adjustment: Coarse setting button + fine control (10% of coarse setting).
Offset voltage independent of the attenuator.
Waveform characteristics:
Sine-wave distortion: < 1% and harmonics < -30 dB.
Triangle linearity error: 1% max (up to 100 KHz).
Square-wave signal rise or fall times: 30 ns max (10 → 90%).
Duty cycle:
Calibrated: to 50% ±1%.
Variable: continuously from 20 to 80% on all ranges and for all waveforms.
Frequency sweep:
Internal: Linear or logarithmic, sweep time adjustable from 10 ms → 5 s and depth adjustable from 1 → 100.
External: Input on BNC socket, Input impedance: 47 Kohms ±10%, Bandwidth: DC → 20 KHz.
Frequency meter:
Frequency range: 0 Hz → 50 MHz in 8 automatic ranges.
Reciprocal reading for very low frequencies.
External input: Impedance: 1 Mohms / 20 pF
Typical sensitivity: 10 mV rms
Direct reading of the frequency in internal position.
Accuracy at 100 KHz: ±0.025% ±1 digit.
50 ohms and TTL output protected against reverse power surges of up to ±60 V.
All inputs and outputs are protected against power surges of up to ± 60 V.
LABVIEW interface.

GF 467AF


Also features a protected 0.5 ohm output supplying 15 W at 4 ohms.

Standards

Safety: EN 61010-1, Surge category II, pollution level 2.
EMC: EN 61000-6-1 and EN 55011, class B.

Specifications


Technology: Linear
Class: II
Primary Voltage Rating: 230V±10%

Safety Standards


EN 61010-1

EMC Standard


EN 61326-1
