BK Precision 4014B Function Generator, 0.01Hz Min, 12MHz Max, FM Modulation, Variable Sweep - With RS Calibration

Se alla Function Generators

Antal (1 enhet)*

7 325,82 kr

(exkl. moms)

9 157,28 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 1 enhet(er) levereras från den 26 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +7 325,82 kr

*vägledande pris

RS-artikelnummer:
122-2091
Tillv. art.nr:
BK4014B
Tillverkare / varumärke:
BK Precision
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

BK Precision

Maximum Frequency Range Sinewave

12MHz

Calibrated

RSCAL

Maximum Frequency Range Square Pulse and Arbitrary Waveform

12MHz

Output Impedance

50Ω

Minimum Frequency Range Sinewave

0.01Hz

Variable Sweep

Yes

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.01 Hz

FM Modulation

Yes

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

1MHz

Minimum Frequency Range Triangle/Saw

0.01Hz

Input Impedance

10 (Modulation) kΩ

Dimensions

213 x 210 x 88mm

Interface Type

USB A, USB B

Output Amplitude

20V Pk-Pk

Model Number

4014B

Internal Linear and Log Sweep

Yes

Internal and External Amplitude Modulation

Yes

Length

213mm

Height

88mm

Frequency Range Square Pulse and Arbitrary Waveform

0.01 Hz → 12 MHz

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+50°C

Digital Amplitude and Offset

Yes

Width

210mm

Weight

2.5kg

TTL Output Level

5V Pk-Pk

RoHS-status: Undantagen

COO (Country of Origin):
IL

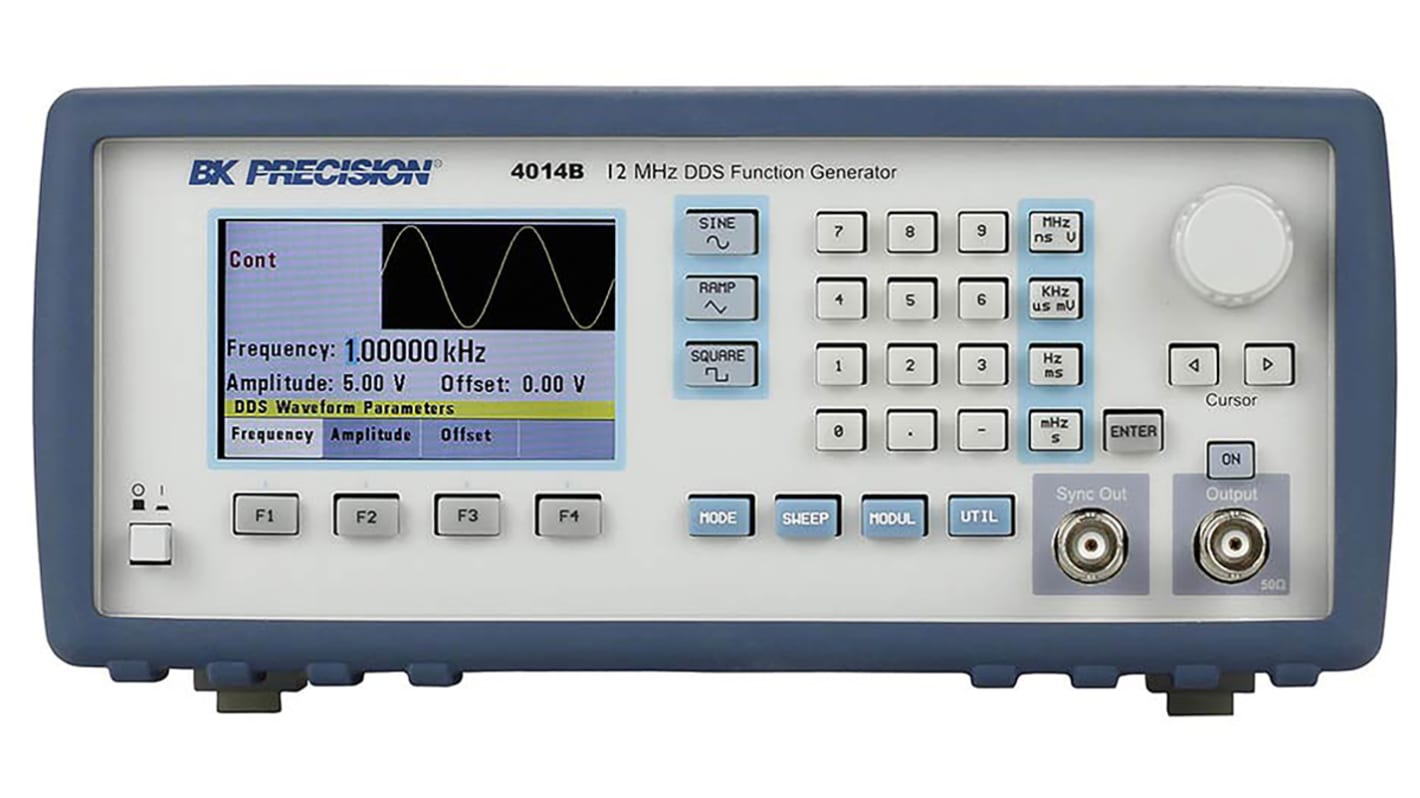

B&K Precision Model 4014B DDS Sweep Function Generator


B&K Precision model 4014B is a versatile sweep function generator designed with dual technology architecture which combines direct digital synthesis (DDS) and a low-jitter square wave generator. The instrument generates sine, square and triangle waveforms with high signal precision and stability. It provides variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

Features and Benefits


Sine, square, and triangle/ramp waveform generation
Bright colour LCD display with waveform preview
Linear and logarithmic sweep
AM/FM modulation
Adjustable duty cycle
Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
Store and recall instrument settings
Output On/Off button
Internal/external triggering
Gate and burst mode
Built-in counter
USB interface with SCPI-compliant command set
Short circuit and overvoltage protection on all inputs and outputs

Areas of Application


Education
Other applications that require digital function generators with sweep and modulation capabilities

Note

You may also be interested in BK4040B ( 878-2135 ), 20 MHz

Supplied with

Instruction manual on CD, power cord, USB (type A to B) interface cable, certificate of calibration
