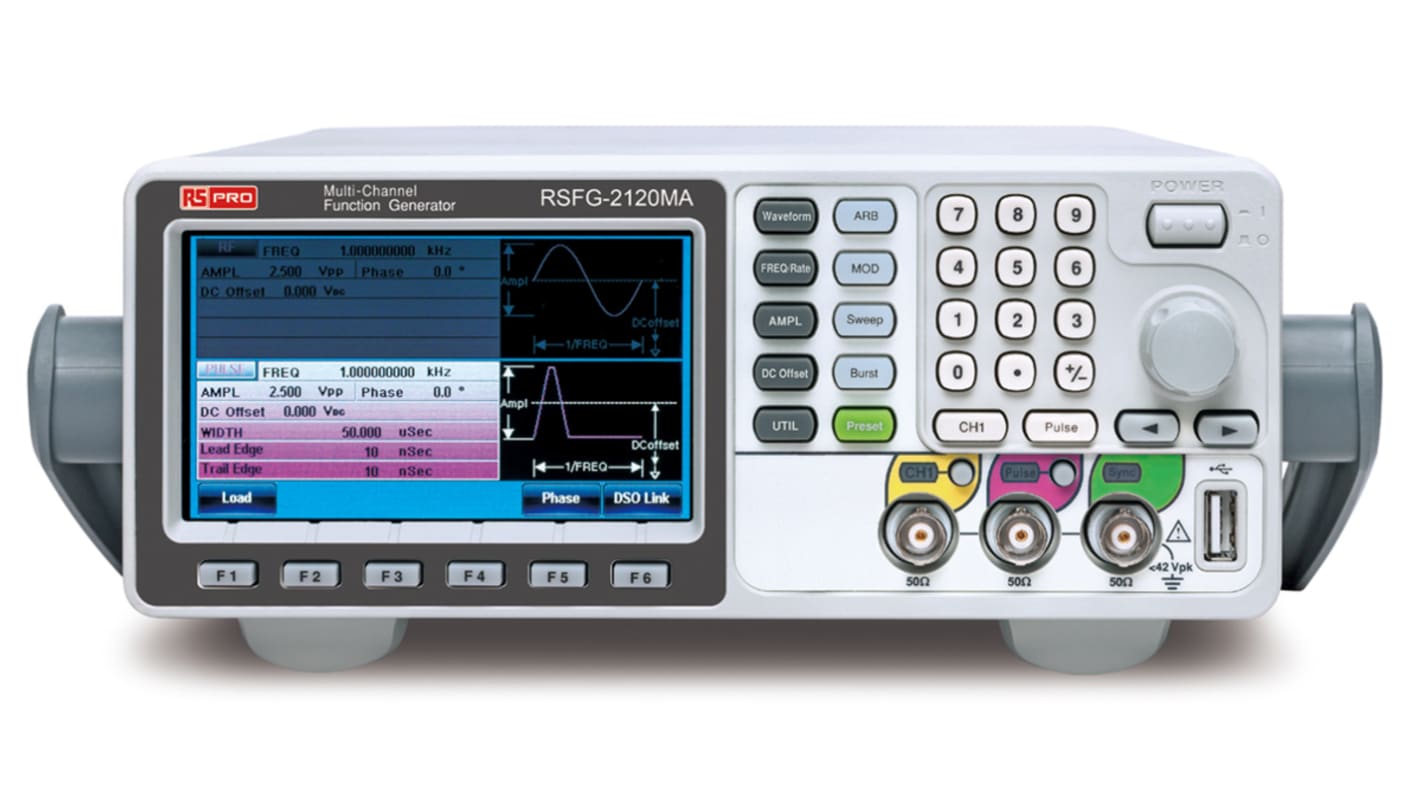

RS PRO RSFG-2120MA Function Generator, 25MHz Max, FM Modulation - RS Calibration

Introducing the RSFG-2000 series of AFG (arbitrary function generators) with pulse generator from RS PRO, a selection of robust and professional function generators offering a range of outputs including sine, square and triangle. Whatever your needs the RSFG-2000 series from RS PRO has you covered, with devices ranging from basic single channel AFG with pulse generator models to more technical and advanced five-channel models with many offering various modulation methods such as AM/FM/PM/FSK/PWM, Sweep, Burst, Trigger, 150 MHz Frequency Counter. The AFG of the RSFG-2000 series in collaboration with AWES (Arbitrary Waveform Editing Software) allows users to easily and quickly edit arbitrary waveforms, with 66 built-in waveforms allowing users to edit arbitrary waveforms and to output the whole segment or divided segments.

Each model of the RSFG-2000 series features a built-in pulse generator with an output frequency that reaches 25 MHz. Users can set pulse width, duty cycle, rise edge time, and fall edge time to support trigger signal. Furthermore, each model also features a clear and user-friendly interface with a 4.3 inch TFT colour display that can be easily navigated by users of any level of expertise.

The RF signal generator feature included in models 1919724 & 1919727 can be applied as a high frequency arbitrary waveform generator, simulated signals of analog or digital broadcast stations or carrier signals of local oscillator. It is also compatible with modulation methods such as AM/FM/PM/FSK/PWM/PSK/ASK.

The low frequency 20W/20dB power amplifier found in models 1919723 & 1919727 has a bandwidth of DC ∼ 100KHz and less than 0.1% distortion and is ideal for connecting a speaker for a wide range of physics experiments.

Yes, this model is supplied with a single BNC-Alligator test lead.
