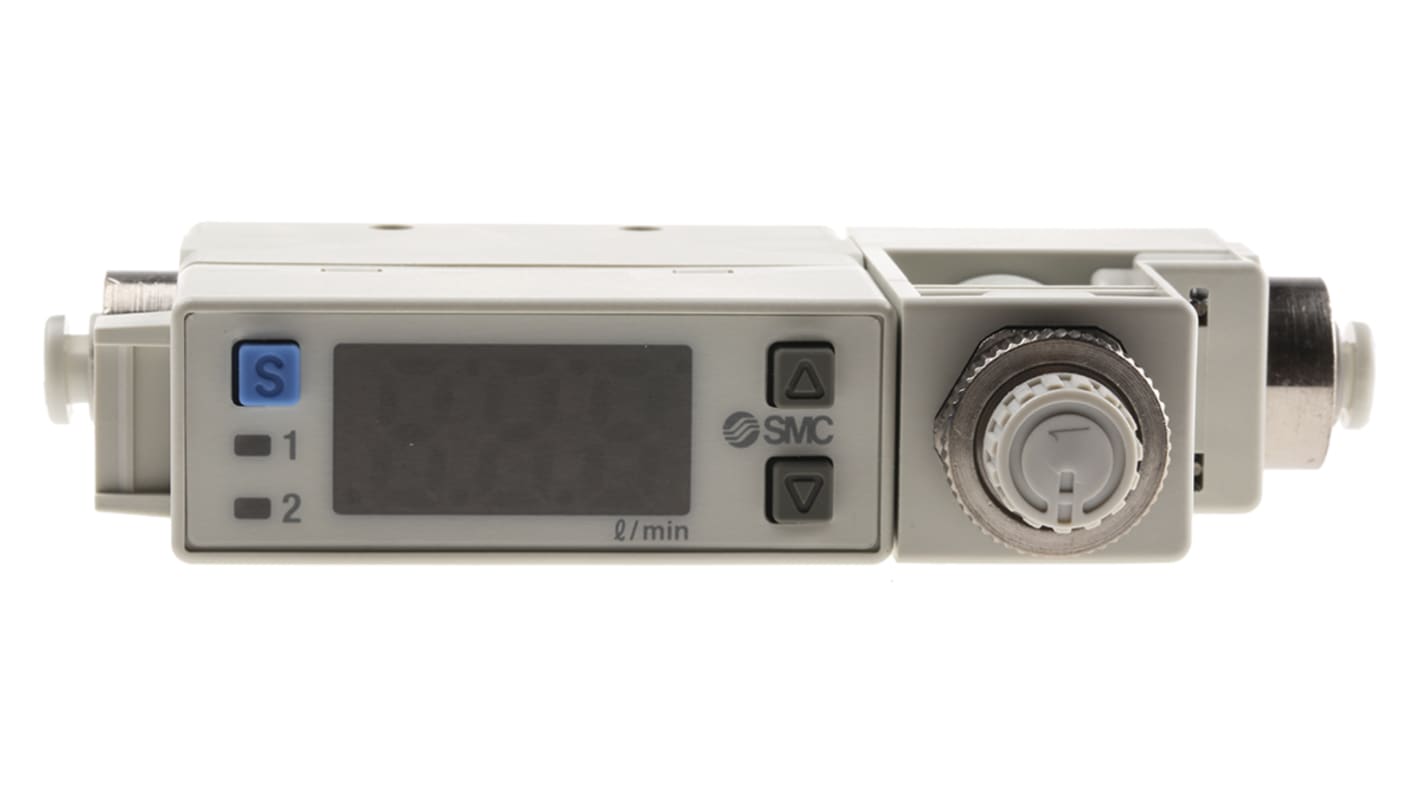

SMC, 0.2 → 10 L/min Flow Controller, PNP, 24 V dc, 3 Digit 7 Segment LED

  • RS-artikelnummer 721-3953
  • Tillv. art.nr PFM710S-C4-B
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
COO (Country of Origin): JP
Produktdetaljer

Digital Flow Switch - PFM7 Series

The PFM series from SMC are dual flow switches designed to detect microchip component adsorption in vacuum, congestion in filters and nozzles. Compact and light weight design, suitable for use with carbon dioxide, air, nitrogen or argon.

Flow rate range: 10, 25, 50,100 l/min
Minimum unit setting: 0.01 l/min
Repeatability: ±1%F.S. or less
Grease-free
Flow adjustment valve is integrated - reduced piping and space saving
Response time can be set

Specifikationer
Attribute Value
Maximum Flow Rate 0.2 → 10 L/min
Control Output PNP
Mounting Style Compact
Supply Voltage 24 V dc
Display Screen 3 Digit 7 Segment LED
Pipe Diameter Range 4 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Tillfälligt slut i lager – restorder för leverans 2019-12-20
Pris (ex. moms) Each
2 092,87 kr
(exkl. moms)
2 616,09 kr
(inkl. moms)
Enheter
Per unit
1 +
2 092,87 kr
