Festo MS4-LFR Metal Filter Regulator, 40μm, G 1/4, Automatic, 12 bar, 535722

RS-artikelnummer:: 121-5656
Tillv. art.nr:: MS4-LFR-1/4-D7-EUV-AS
Tillverkare / varumärke:: Festo

Festo MS4-LFR Metal Filter Regulator, 40μm, G 1/4, Automatic, 12 bar, 535722

Mängdrabatt möjlig

Antal (1 enhet)*

1 458,02 kr

(exkl. moms)

1 822,52 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

2 enhet(er) levereras från den 26 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	1 458,02 kr
5 +	1 399,66 kr

*vägledande pris

RS-artikelnummer:: 121-5656
Tillv. art.nr:: MS4-LFR-1/4-D7-EUV-AS
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/4
	Maximum Operating Pressure	12 bar
	Manufacturer Series	MS4-LFR
	Drain Type	Automatic
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/4 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	+5°C
	Minimum Operating Pressure	2bar
	Process Operating Temperature Range	+5 → +60°C
	Bowl Material	Metal
	Maximum Process Operating Temperature	+60°C
	Port Connection Thread Standard	G
	Pressure Gauge Port Thread Standard	G
	Ambient Operating Temperature Range	+5 → +60°C
	Minimum Ambient Operating Temperature	+5°C
	Model Number	535722

	Välj alla
	Brand Festo
	Port Connection G 1/4
	Maximum Operating Pressure 12 bar
	Manufacturer Series MS4-LFR
	Drain Type Automatic
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/4 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature +5°C
	Minimum Operating Pressure 2bar
	Process Operating Temperature Range +5 → +60°C
	Bowl Material Metal
	Maximum Process Operating Temperature +60°C
	Port Connection Thread Standard G
	Pressure Gauge Port Thread Standard G
	Ambient Operating Temperature Range +5 → +60°C
	Minimum Ambient Operating Temperature +5°C
	Model Number 535722

Logga in för att ladda ner CAD-modeller

COO (ursprungsland):: HU

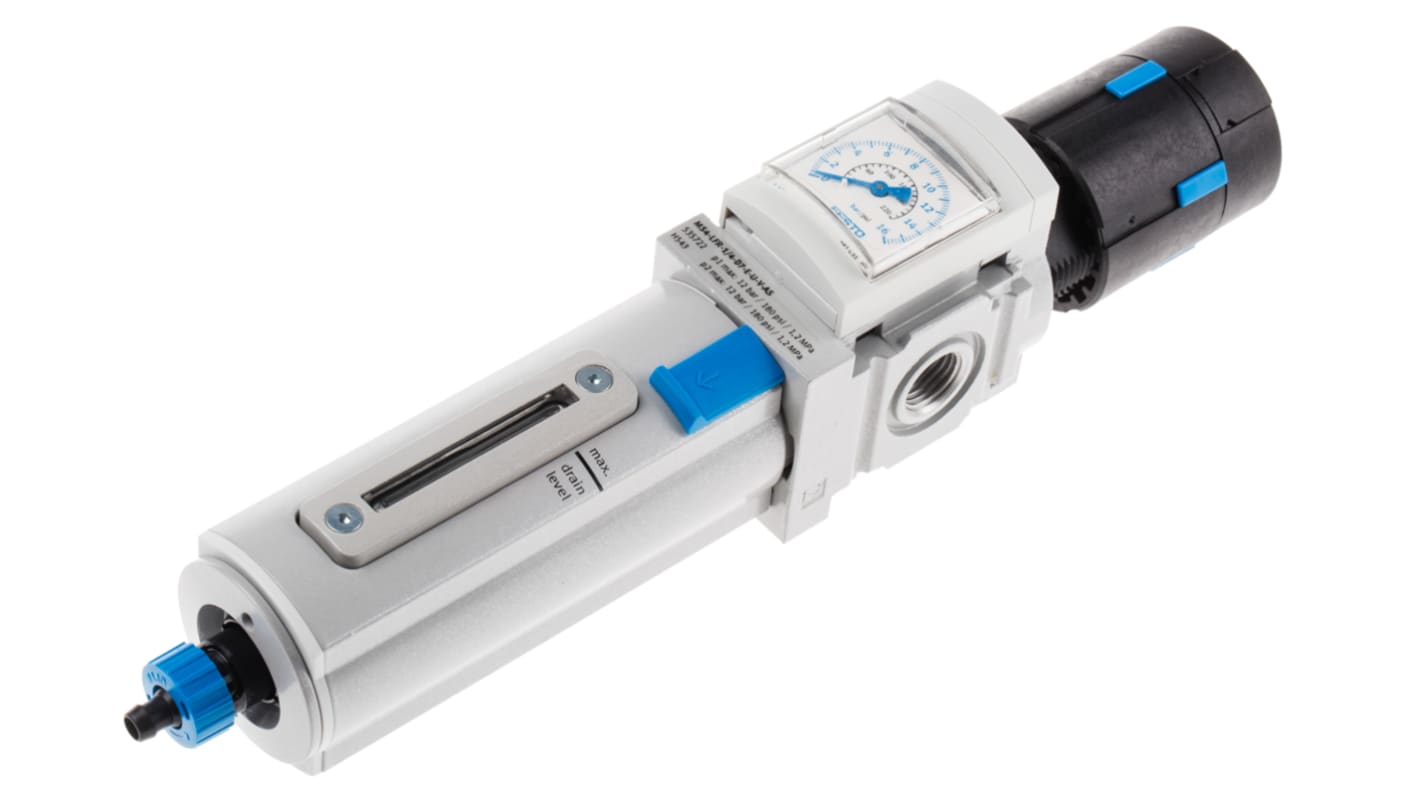

Festo Filter Regulator, Die Cast Aluminium Housing, 475g Weight - MS4-LFR-1/4-D7-EUV-AS

For a clean and consistent flow of compressed air through your pneumatic system, go for this Festo filter regulator. It performs double duty, thanks to a 40μm filter that removes tiny particles to prevent blockages and a regulator that gives you control over the input pressure. Filtered contaminants are held in a 25ml metal bowl with an automatic drain mechanism that takes waste disposal off your hands. This unit works in a pressure range between 2 and 12 bar, making it a versatile option for light-duty and heavy-duty applications.

Features & Benefits

• Die cast aluminium housing resists impact and corrosion for use in harsh environments
• G1/4 threaded port eliminates the need for complex installation tools
• NBR seals block out contaminants and prevent leakages to ensure optimal performance
• Integrated pressure gauge for easy monitoring

Applications

• Water treatment plants
• Agricultural equipment
• Robotics and automation systems

In what position should I mount this filter regulator?

To ensure optimal performance, you must assemble this unit in a vertical position, with a tolerance of +/- 5°.

How do I regulate pressure with this filter regulator?

You can control the input pressure with a quick turn of this unit's rotary knob. A locking feature prevents accidental pressure changes.
