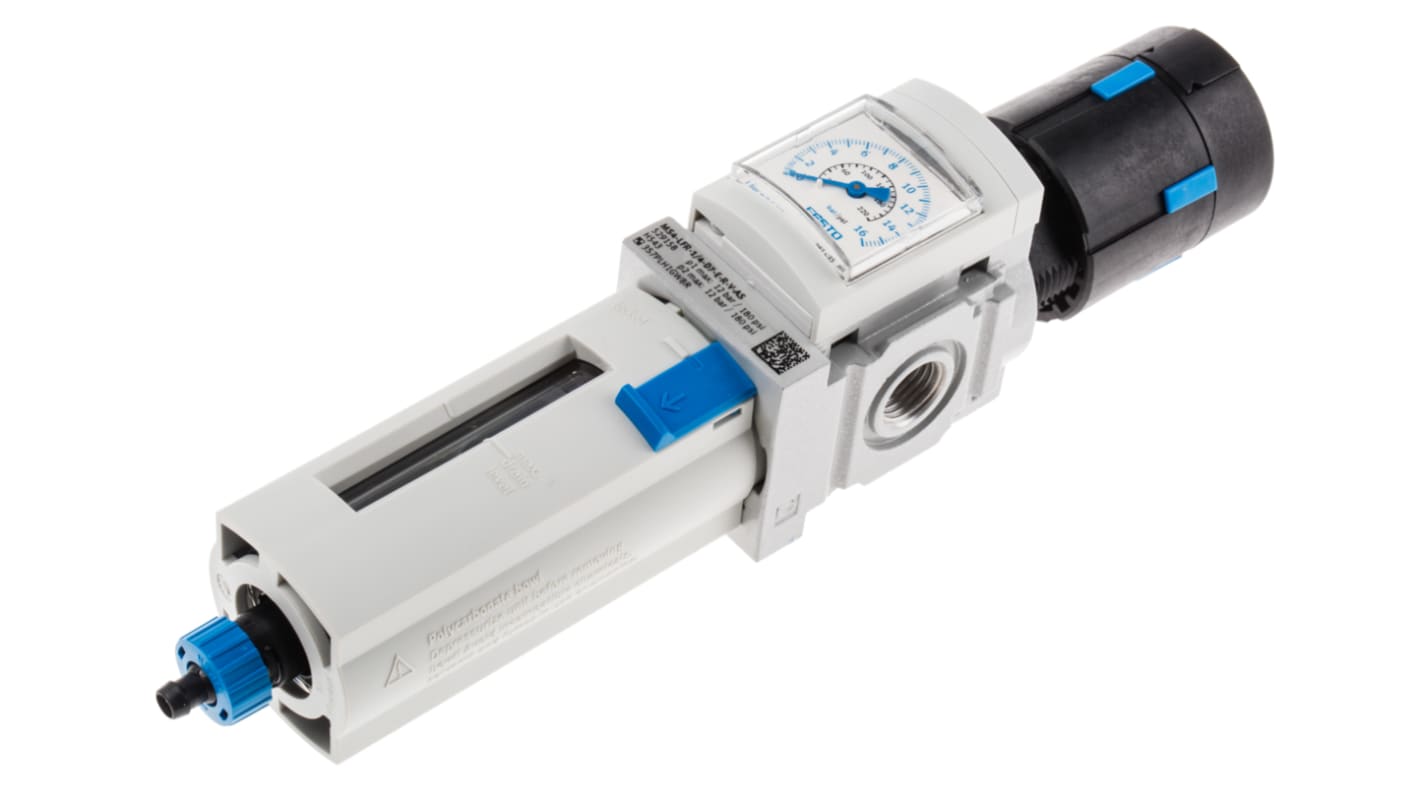

Festo MS4-LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Automatic, 12 bar, 529158

RS-artikelnummer:: 121-5655
Tillv. art.nr:: MS4-LFR-1/4-D7-ERV-AS
Tillverkare / varumärke:: Festo

Festo MS4-LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Automatic, 12 bar, 529158

Mängdrabatt möjlig

Antal (1 enhet)*

1 151,92 kr

(exkl. moms)

1 439,90 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

25 enhet(er) är redo att levereras
Plus 5 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	1 151,92 kr
5 +	1 105,89 kr

*vägledande pris

RS-artikelnummer:: 121-5655
Tillv. art.nr:: MS4-LFR-1/4-D7-ERV-AS
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/4
	Maximum Operating Pressure	12 bar
	Manufacturer Series	MS4-LFR
	Drain Type	Automatic
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/4 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	+5°C
	Minimum Operating Pressure	2bar
	Pressure Gauge Port Thread Standard	G
	Port Connection Thread Standard	G
	Process Operating Temperature Range	+5 → +60°C
	Ambient Operating Temperature Range	+5 → +60°C
	Maximum Process Operating Temperature	+60°C
	Bowl Material	Polycarbonate
	Model Number	529158
	Minimum Ambient Operating Temperature	+5°C

	Välj alla
	Brand Festo
	Port Connection G 1/4
	Maximum Operating Pressure 12 bar
	Manufacturer Series MS4-LFR
	Drain Type Automatic
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/4 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature +5°C
	Minimum Operating Pressure 2bar
	Pressure Gauge Port Thread Standard G
	Port Connection Thread Standard G
	Process Operating Temperature Range +5 → +60°C
	Ambient Operating Temperature Range +5 → +60°C
	Maximum Process Operating Temperature +60°C
	Bowl Material Polycarbonate
	Model Number 529158
	Minimum Ambient Operating Temperature +5°C

Logga in för att ladda ner CAD-modeller

COO (ursprungsland):: HU

Festo Filter Regulator, 2 to 12 Bar Operating Pressure, 1500L/Min Standard Nominal Flow Rate - MS4-LFR-1/4-D7-ERV-AS

Step up the efficiency of your pneumatic system with this two-in-one filter regulator from Festo. The 40μm filter cleans compressed air to prevent clogging and friction damage, extending the lifespan of your equipment. An automatic drain opens and closes in line with fluid levels to keep contaminants out of your supply. By controlling pressure, the regulator stabilises outputs to ensure consistent performance and reduced service interruptions. Thanks to a wide operating pressure range between 2 and 12, you'll find this is a versatile choice.

Features & Benefits

• G1/4 port to fit standard systems
• Wide operating temperature range of +5°C to +60°C for use in tough conditions
• Polycarbonate drainage bowl resists environmental damage
• Lightweight component at 275g puts minimal strain on a pneumatic network

Applications

• Aerospace applications
• Automotive industry
• Chemical manufacturing processes
• Food sector
• Medical equipment

How does this filter regulator maintain a set pressure?

It has a rotary knob with which you set your preferred pressure. Once set, it locks in place to prevent accidental slips and resets.

How do I mount this filter regulator?

It's an inline device for straightforward mounting in a vertical position.
