Broadcom HFBR-2402Z 5.2428Mbps 820nm Fibre Optic Receiver, Round

Se alla Fibre Optic Receivers
Mängdrabatt möjlig

Antal (1 rör med 60 enheter)*

12 093,42 kr

(exkl. moms)

15 116,76 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 60 enhet(er) från den 29 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
60 - 60201,557 kr12 093,42 kr
120 - 240189,463 kr11 367,78 kr
300 +181,349 kr10 880,94 kr

*vägledande pris

RS-artikelnummer:
261-7469
Tillv. art.nr:
HFBR-2402Z
Tillverkare / varumärke:
Broadcom
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Broadcom

Maximum Data Rate

5.2428Mbps

Connector Shape

Round

Wavelength of Peak Sensitivity

820nm

Typical Rise Time

4ns

Typical Fall Time

4ns

COO (Country of Origin):
PH

HFBR-14xxZ and HFBR-24xxZ Series Fibre Optic Components


Optical Receiver for Industrial Applications with Conductive ST-Threaded Port, RoHS Compliant


The HFBR-0400Z Series of components is designed to provide cost effective, high performance fiber optic communication links for industrial, power generation, power distribution, medical, transportation and gaming applications.

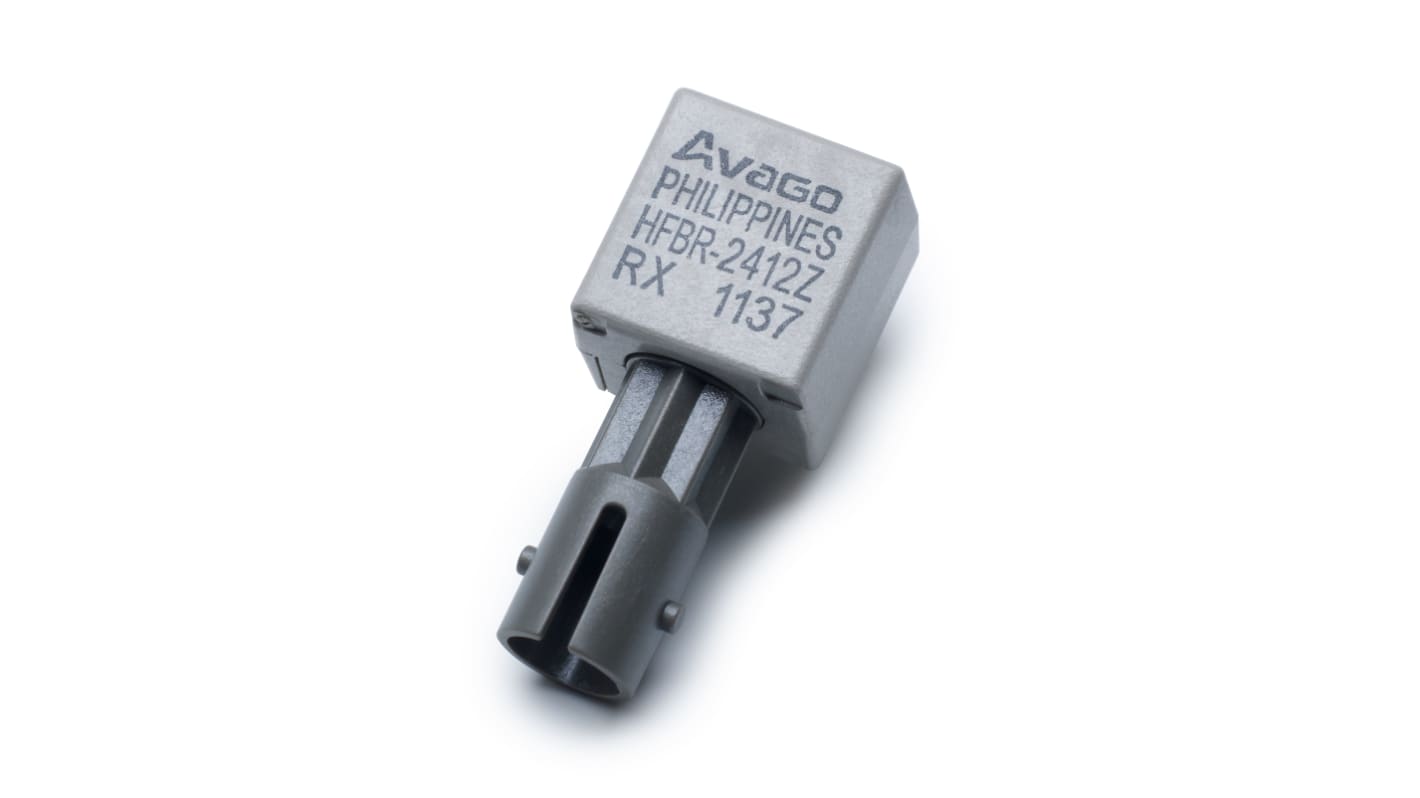

The HFBR-24x2Z fiber optic receiver is designed to operate with the Broadcom HFBR-14x2Z and HFBR-14x4Z fiber optic transmitter up to 5MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable. HFBR-24x2Z receiver incorporates an integrated photo IC containing a photodetector and dc amplifer driving an open-collector Schottky output transistor.

This product is also available in other popular industry-standard connectors: SMA, SC and FC.

Features


•Low Cost Receiver

•Integrated Photo IC containing a photodetector and dc amplifier

•Data Rate up to 5MBd

•Link Distances up to 2km

•Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 mm HCS Fiber

•Wide Operating Temperature Range -40C to +85C

•Unique Optical Port Design for Efficient Coupling

•Auto-Insertable and Wave Solderable

•No Board Mounting Hardware Required

Applications


•Computer to Peripheral Links

•Computer Monitor Links

•Digital Cross Connect Links

•Modems and Multiplexers

•Suitable for Tempest Systems

•Industrial Control Links

Options:


•HFBR-2412TCZ (Conductive ST-Threaded Port)

•HFBR-2412TZ (Plastic ST-Threaded Port)

•HFBR-2412Z (Plastic ST Port)

The Broadcom 820 nm Miniature Link Series of components is designed to provide cost-effective, high-performance fibber optic communication links for information systems and industrial applications with link distances of several kilometres.

RoHS compliant
Low-cost transmitters and receivers
Choice of ST, SMA, SC, or FC ports
820 nm wavelength technology
Signal rates up to 160 MBaud
Link distances up to several kilometres
Unique optical port design for efficient coupling
Pick and place, and wave solder able
No board-mounting hardware required


Fibre Optics, Avago Technologies
