    ebm-papst Fan Speed Controller for Use with ebm-papst EC Fans, 10 V dc, 5 Speeds

    RS-artikelnummer:
    743-4810
    Tillv. art.nr:
    CN1064
    Tillverkare / varumärke:
    ebm-papst
    ebm-papst
    Se alla Fan Speed Controllers
    58 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    313,84 kr

    (exkl. moms)

    392,30 kr

    (inkl. moms)

    EnheterPer unit
    1 +313,84 kr
    RS-artikelnummer:
    743-4810
    Tillv. art.nr:
    CN1064
    Tillverkare / varumärke:
    ebm-papst
    COO (Country of Origin):
    GB

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    GB

    Produktdetaljer

    EC PCB Fan Speed Controllers


    Unboxed manual speed controllers for use with EBM-Papst EC (electronically commutated) fans. These are all purely the control assembly and PCB and are not mounted in an enclosure.

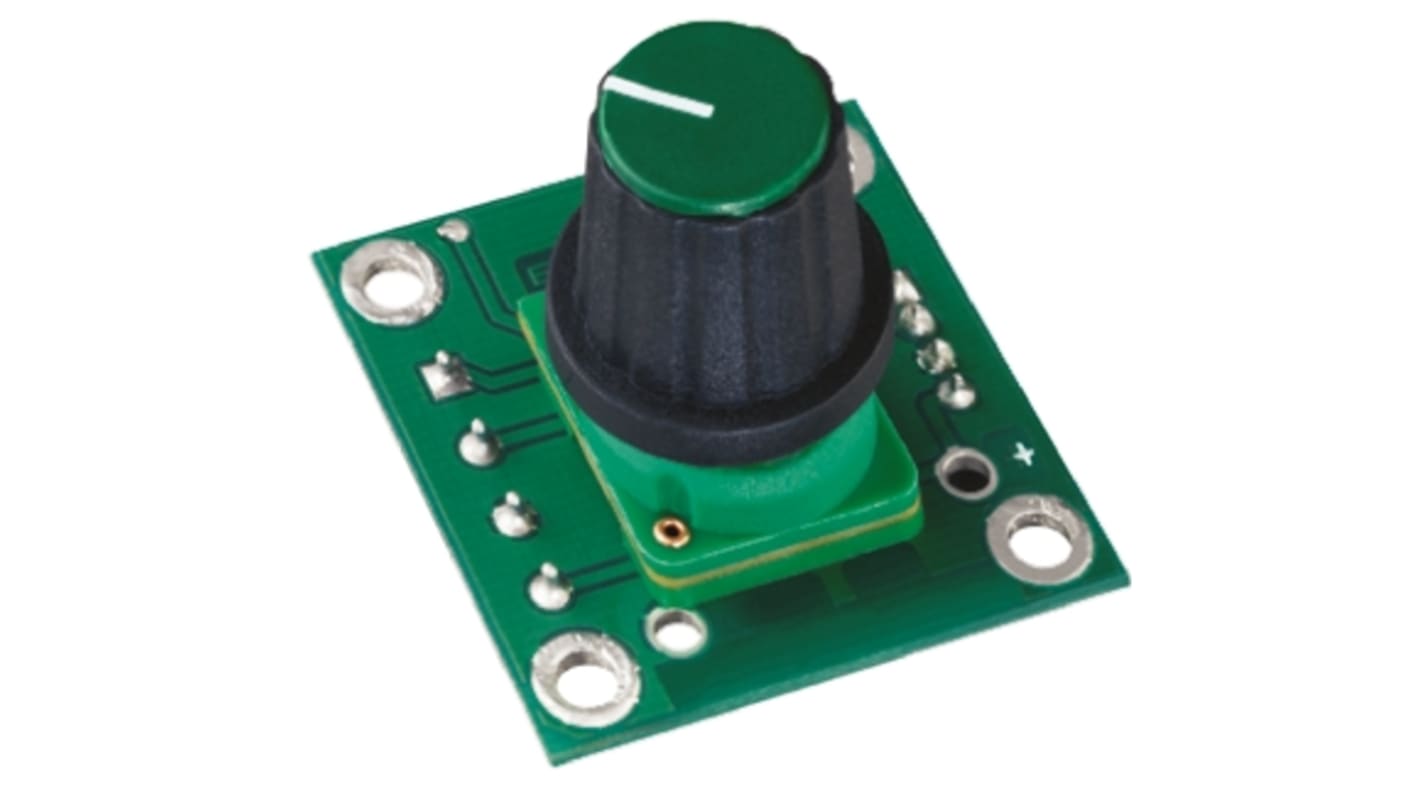

    CN1003 (743-4807) variable speed controller


    The CN1003 (743-4807) unboxed controller is designed for use with the full range of ebm-papst ECi (Electronically Commutated with integrated electronics) fans. It is powered via the DC output from by the fan and provides a 0-10V signal to enable infinitely variable speed control. The controller also enables speed measurement of the fan using a multimeter with a frequency measuring facility (where a tacho output is provided from the fan). Specification: Input voltage 10 VDC (supplied from fan); Maximum ambient temperature 50°C; Mounting hole diameter 10mm; Output voltage range 0-10 VDC.


    CN1064 (743-4810) 5 position speed controller


    The CN1064 (743-4810) unboxed 5 speed controller is designed for use with the full range of ebm-papst EC fans. Powered by the 10VDC output from the motor, it provides variable speed control with 5 speed settings. Each setting can be adjusted during commissioning between 0 % to 100% speed. This controller can control multiple fans running at the same speed. No separate power supply required.


    CN1063 (743-4817) adjustable max / min variable speed controller


    The CN1063 (743-4817) unboxed controller is designed for use with the full range of ebm-papst EC fans. Powered by the 10V DC output from the motor, it provides infinitely variable, manual speed control between 0% and 100%. However, the CN1063 (743-4817) differs from the CN1003 (743-4807) in that it has adjustable limits. The maximum and minimum speeds can be varied during commissioning to limit the maximum speed and/or restrict the lower speed. No separate power supply is required.



    Specifikationer

    AttributeValue
    For Use Withebm-papst EC Fans
    Speed Settings5 Speeds
    Supply Voltage10 V dc
