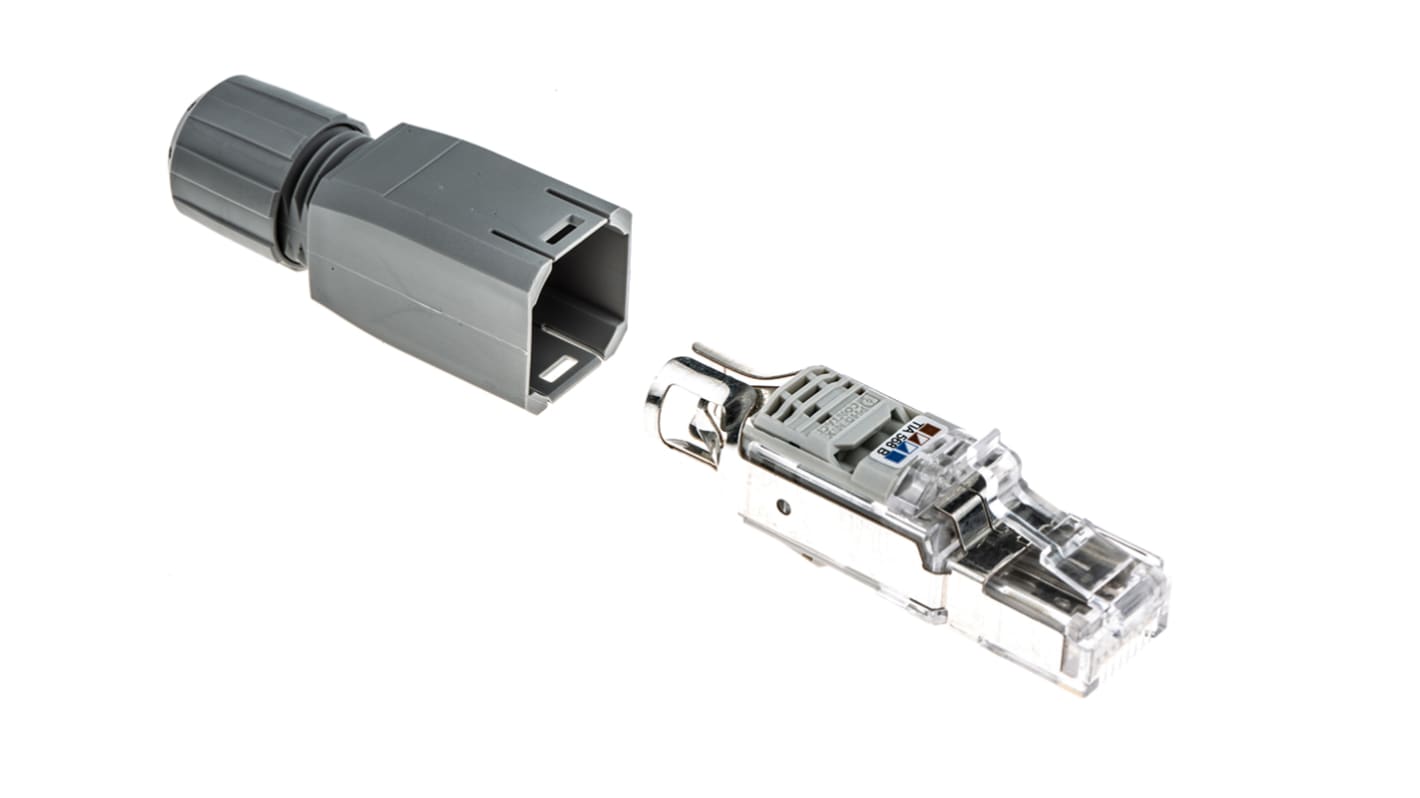

Phoenix Contact QUICKON Series Male RJ45 Connector, Cable Mount, Cat5
- RS-artikelnummer:
- 522-5872
- Tillv. art.nr:
- 1656725
- Tillverkare / varumärke:
- Phoenix Contact
Se alla Ethernet Connectors
620 I lager för avsändande samma dag
Pris (ex. moms) Each (In a Pack of 5)
242,65 kr
(exkl. moms)
303,31 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 45 | 242,65 kr | 1 213,25 kr |
| 50 - 120 | 227,114 kr | 1 135,57 kr |
| 125 - 245 | 185,63 kr | 928,15 kr |
| 250 - 495 | 164,734 kr | 823,67 kr |
| 500 + | 159,658 kr | 798,29 kr |
- RS-artikelnummer:
- 522-5872
- Tillv. art.nr:
- 1656725
- Tillverkare / varumärke:
- Phoenix Contact
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer
VARIOSUB RJ45 Plug Connector IP20
VARIOSUB RJ45 modular plug connector 8-pole IP20.
QUICKON self-stripping connection with no tooling required.
Permissible cable section: 26 to 22 AWG.
Temperature range: -20 to 70°C.
External cable diameter: 4.5 to 8 mm.
Polyamide body.
Polycarbonate contact holder.
QUICKON self-stripping connection with no tooling required.
Permissible cable section: 26 to 22 AWG.
Temperature range: -20 to 70°C.
External cable diameter: 4.5 to 8 mm.
Polyamide body.
Polycarbonate contact holder.
Phoenix Contact RJ45 Connector, 8 Way, Straight Orientation - VS-08-RJ45-5-Q/IP20 - 1656725
Get your kit joined up with this Cat5 RJ45 connector from Phoenix Contact. You can use it to reliably transmit video or telephone signals, as well as standard computer data.
QUICKON quick-connect IDC technology means you can mount the connector easily onto cables sized between 26 and 23AWG, with no specialist tools needed. To prevent electromagnetic interference from messing with your signal, the pins are shielded. The hood helps you make a robust connection and achieves an IP20 rating, meaning the assembly's protected against solid objects greater than 12mm, including your fingers. Locking clips hold it securely in place so you can be sure your connection holds fast.
An expected service life of over 1000 insertion/withdrawal cycles makes this a product you can rely on in the long term. It's supplied with colour-coding rings to help you build an organised system.
QUICKON quick-connect IDC technology means you can mount the connector easily onto cables sized between 26 and 23AWG, with no specialist tools needed. To prevent electromagnetic interference from messing with your signal, the pins are shielded. The hood helps you make a robust connection and achieves an IP20 rating, meaning the assembly's protected against solid objects greater than 12mm, including your fingers. Locking clips hold it securely in place so you can be sure your connection holds fast.
An expected service life of over 1000 insertion/withdrawal cycles makes this a product you can rely on in the long term. It's supplied with colour-coding rings to help you build an organised system.
Features & Benefits
• Gold over nickel-plated copper alloy contacts ensure high conductivity to faithfully transmit your signals
• Accepts both stranded and solid wires for versatile use
• PA construction for toughness and electrical insulation
• Accepts both stranded and solid wires for versatile use
• PA construction for toughness and electrical insulation
Standards
EN 50173, ISO / IEC 11801
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Ethernet Connector Type | RJ45 Connector |
| LAN Category | Cat5 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Shield Type | Shielded |
| Orientation | Straight |
| IP Rating | IP20 |
| Length | 56mm |
| Width | 14mm |
| Depth | 14.6mm |
| Series | QUICKON |
| Series Number | VS-08-RJ45-5-Q/IP20 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
