Neutrik etherCON Series Female RJ45 Connector, Cable Mount, Cat5e Straight 1 Port 8 -Way
- RS-artikelnummer:
- 450-9062
- Distrelec artikelnummer:
- 142-67-753
- Tillv. art.nr:
- NE8FDV-YK
- Tillverkare / varumärke:
- Neutrik
Mängdrabatt möjlig
Antal (1 enhet)*
185,92 kr
(exkl. moms)
232,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 730 enhet(er) är redo att levereras
- Plus 152 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 100 enhet(er) från den 26 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 14 | 185,92 kr |
| 15 - 49 | 175,84 kr |
| 50 + | 175,28 kr |
*vägledande pris
- RS-artikelnummer:
- 450-9062
- Distrelec artikelnummer:
- 142-67-753
- Tillv. art.nr:
- NE8FDV-YK
- Tillverkare / varumärke:
- Neutrik
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Neutrik | |
| Ethernet Connector Type | RJ45 Connector | |
| Gender | Female | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mounting Type | Cable Mount | |
| Number of Ways | 8 | |
| Orientation | Straight | |
| Length | 26mm | |
| Series | etherCON | |
| Contact Material | Bronze | |
| Contact Plating | Gold over Nickel | |
| Välj alla | ||
|---|---|---|
Brand Neutrik | ||
Ethernet Connector Type RJ45 Connector | ||
Gender Female | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mounting Type Cable Mount | ||
Number of Ways 8 | ||
Orientation Straight | ||
Length 26mm | ||
Series etherCON | ||
Contact Material Bronze | ||
Contact Plating Gold over Nickel | ||

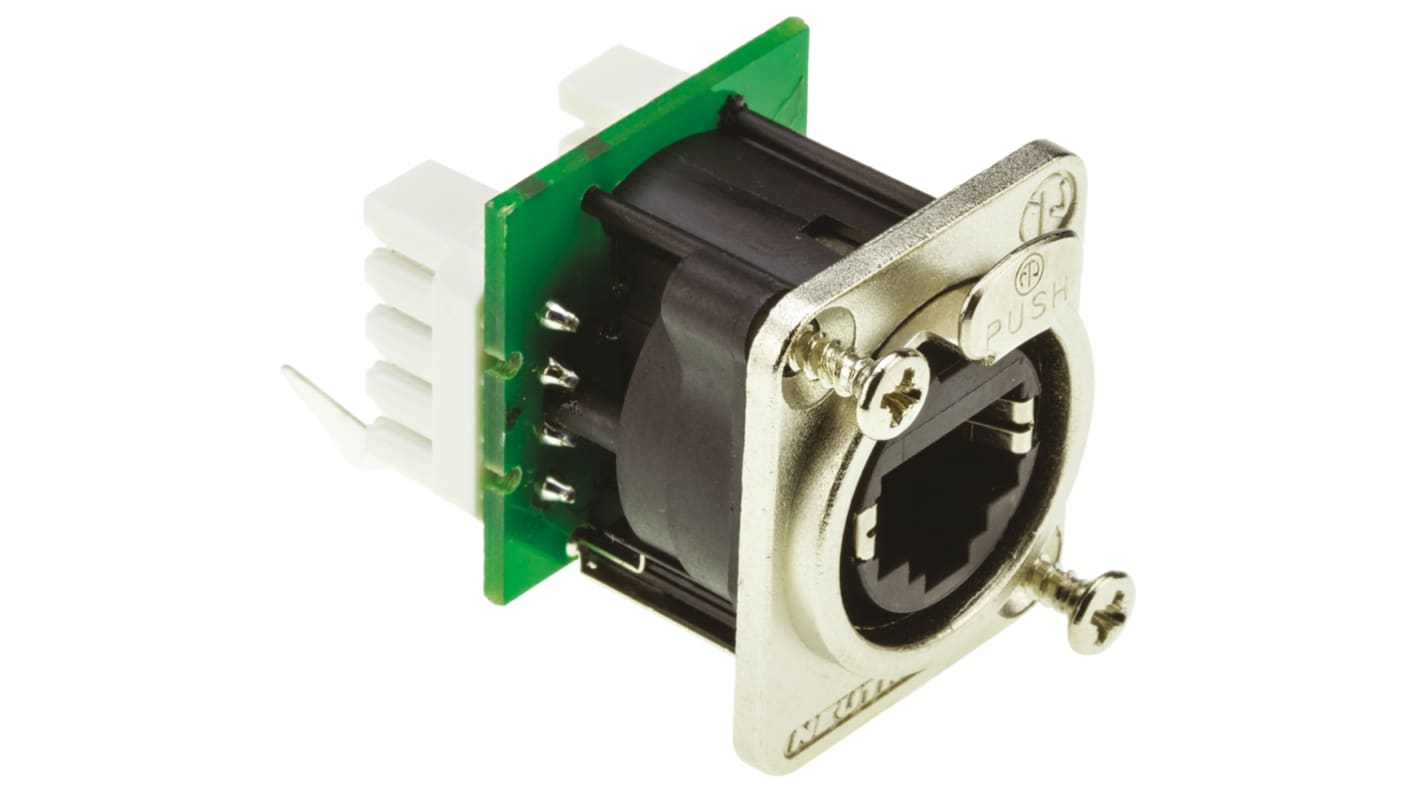

EtherCon® RJ 45 Connectivity
From Neutrik, these EtherCon RJ45 connectors have a plug housed in a diecast shell that interlocks with corresponding receptacles in much the same way as typical XLR connector would. It ensures that EtherCon RJ45 plugs and sockets can form a robust and secure mating not always afforded by typical RJ45 connections. All models are highly reliable and excellent quality.
Features & Benefits
All comply with Category 5 (Cat 5e for IDC versions), and are compatible for use with 10 Base-T and 100 BaseTX systems
The 'FDV' version uses similar front flange as the Neutrik unified XLR connector
Maximum cable O.D. is 6 mm for cable shell connector
Cable mount shell is ideal for retrospectively ruggedising existing non-booted RJ45 leads
Frequency Bandwidth: 1 MHz to 100 MHz
Rated Current: 1.5A
Dielectric Strength: 1kVac
Contact Resistance: <10 mΩ
Insulation Resistance: >500 mΩ
Temperature Range: -30° to + 80°C
Expected Mechanical Life: >1000 cycles
